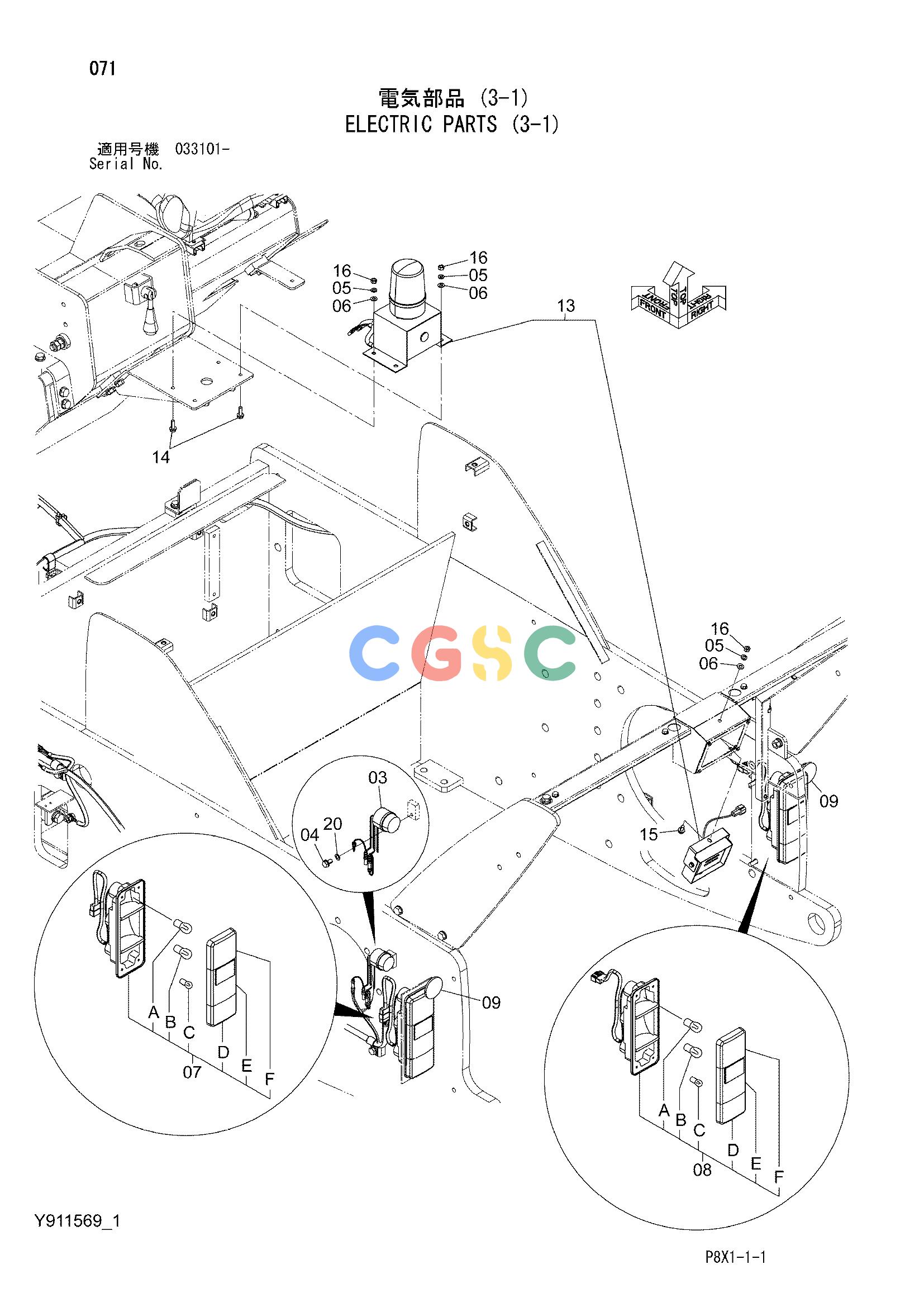

日立零件查询（CS125-3）ELECTRIC PARTS (3-1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
498 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 03. | 4363322 | [1] | ALARM | |
| 04. | J900816 | [1] | BOLT | |
| 05. | A590908 | [5] | WASHER;SPRING | |
| 06. | A590108 | [5] | WASHER;PLANE | |
| 07. | Y415208 | [1] | LAMP;REAR | |
| 07A. | Y415666 | [1] | BULB | |
| 07B. | Y415667 | [1] | BULB | |
| 07C. | Y415666 | [1] | BULB | |
| 07D. | 4661240 | [1] | LENS | |
| 07E. | 4661239 | [1] | LENS | |
| 07F. | 4661238 | [1] | LENS | |
| 08. | Y415207 | [1] | LAMP;REAR | |
| 08A. | Y415666 | [1] | BULB | |
| 08B. | Y415667 | [1] | BULB | |
| 08C. | Y415666 | [1] | BULB | |
| 08D. | 4661243 | [1] | LENS | |
| 08E. | 4661242 | [1] | LENS | |
| 08F. | 4661241 | [1] | LENS | |
| 09. | 4487132 | [2] | REFLECTOR | |
| 13. | Y417740 | [1] | SENSOR | |
| 14. | J900825 | [4] | BOLT | |
| 15. | J900820 | [1] | BOLT | |
| 16. | J950008 | [5] | NUT | |
| 20. | Y403796 | [1] | WASHER;TOOTH | |
