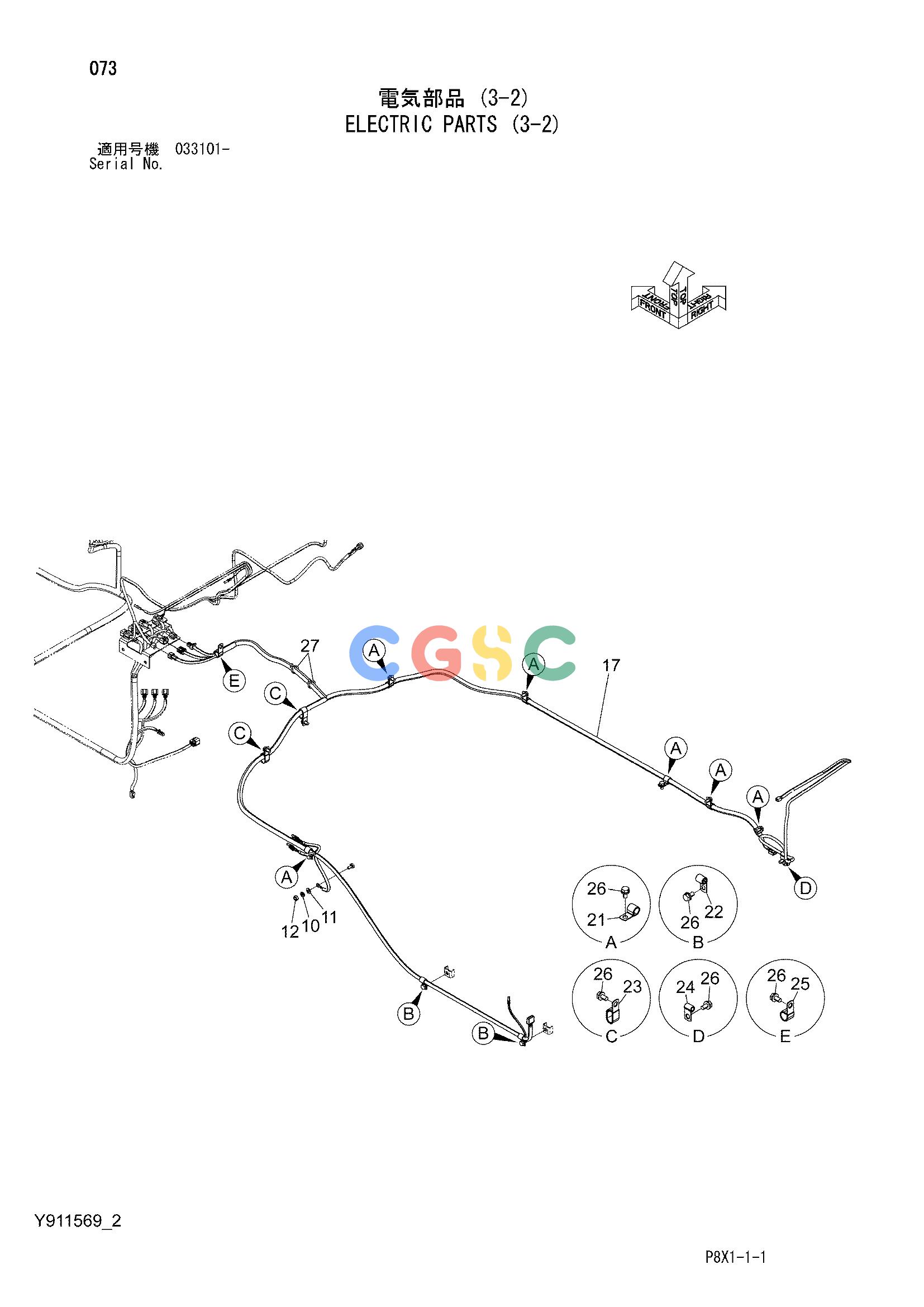

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 10. | A590910 | [1] | WASHER;SPRING | |
| 11. | A590110 | [1] | WASHER;PLANE | |
| 12. | J950010 | [1] | NUT | |
| 17. | Y302288 | [1] | HARNESS;WIRE | |
| 21. | 4190273 | [6] | CLIP | |
| 22. | 4190275 | [2] | CLIP | |
| 23. | 4190282 | [2] | CLIP | |
| 24. | 4190261 | [1] | CLIP | |
| 25. | 4190277 | [1] | CLIP | |
| 26. | J271020 | [11] | BOLT;SEMS | |
| 26A. | J901020 | [1] | BOLT | |
| 26B. | J222010 | [1] | WASHER | |
| 27. | 4055311 | [2] | CLIP;BAND |
