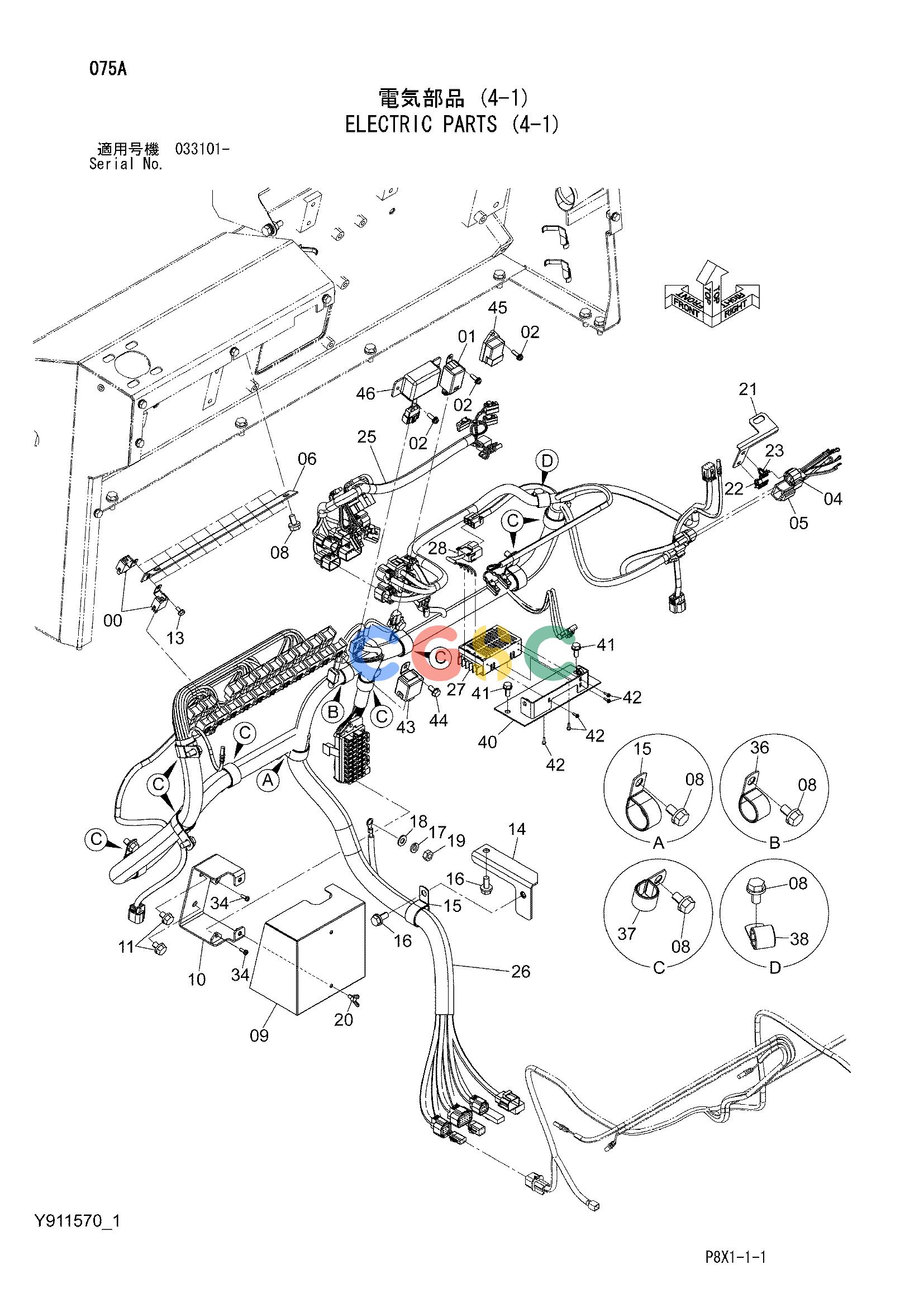

日立零件查询（CS125-3）ELECTRIC PARTS (4-1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
349 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4607115 | [21] | RELAY | |
| 01. | Y417847 | [1] | RELAY | |
| 02. | J460620 | [4] | SCREW;SEMS | |
| 04. | Y404210 | [1] | HARNESS;WIRE | |
| 05. | Y404211 | [1] | HARNESS;WIRE | |
| 06. | Y802861 | [1] | BRACKET | |
| 08. | J271020 | [13] | BOLT;SEMS | |
| 08A. | J901020 | [1] | BOLT | |
| 08B. | J222010 | [1] | WASHER | |
| 09. | Y302287 | [1] | COVER | |
| 10. | Y802863 | [1] | BRACKET | |
| 11. | J271016 | [2] | BOLT;SEMS | |
| 11A. | J901016 | [1] | BOLT | |
| 11B. | J222010 | [1] | WASHER | |
| 13. | J260612 | [11] | BOLT;SEMS | |
| 13A. | J900612 | [1] | BOLT | |
| 13B. | A590106 | [1] | WASHER;PLANE | |
| 14. | Y970365 | [1] | BRACKET | |
| 15. | 4190264 | [2] | CLIP | |
| 16. | J271025 | [2] | BOLT;SEMS | |
| 16A. | J901025 | [1] | BOLT | |
| 16B. | J222010 | [1] | WASHER | |
| 17. | A590910 | [1] | WASHER;SPRING | |
| 18. | A590110 | [1] | WASHER;PLANE | |
| 19. | J950010 | [1] | NUT | |
| 20. | M360610 | [2] | BOLT;WING | |
| 21. | Y405005 | [1] | BRACKET | |
| 22. | 4337290 | [1] | CLIP | |
| 23. | Y404351 | [1] | CLIP | |
| 25. | Y302290 | [1] | HARNESS;WIRE | |
| 26. | Y200533 | [1] | HARNESS;WIRE | |
| 27. | Y417739 | [1] | UNIT;POWER | |
| 28. | Y417813 | [1] | HARNESS;WIRE | |
| 34. | J450512 | [2] | SCREW;SEMS | |
| 36. | 4192035 | [1] | CLIP | |
| 37. | 4190263 | [8] | CLIP | |
| 38. | 4190274 | [1] | CLIP | |
| 40. | Y802922 | [1] | BRACKET | |
| 41. | J260820 | [2] | BOLT;SEMS | |
| 41A. | J900820 | [1] | BOLT | |
| 41B. | A590108 | [1] | WASHER;PLANE | |
| 42. | J460312 | [5] | SCREW;SEMS | |
| 43. | Y418151 | [1] | RELAY | |
| 44. | J260816 | [1] | BOLT;SEMS | |
| 44A. | J900816 | [1] | BOLT | |
| 44B. | A590108 | [1] | WASHER;PLANE | |
| 45. | Y417703 | [1] | CONTROLLER | |
| 46. | Y417705 | [1] | RELAY | |
