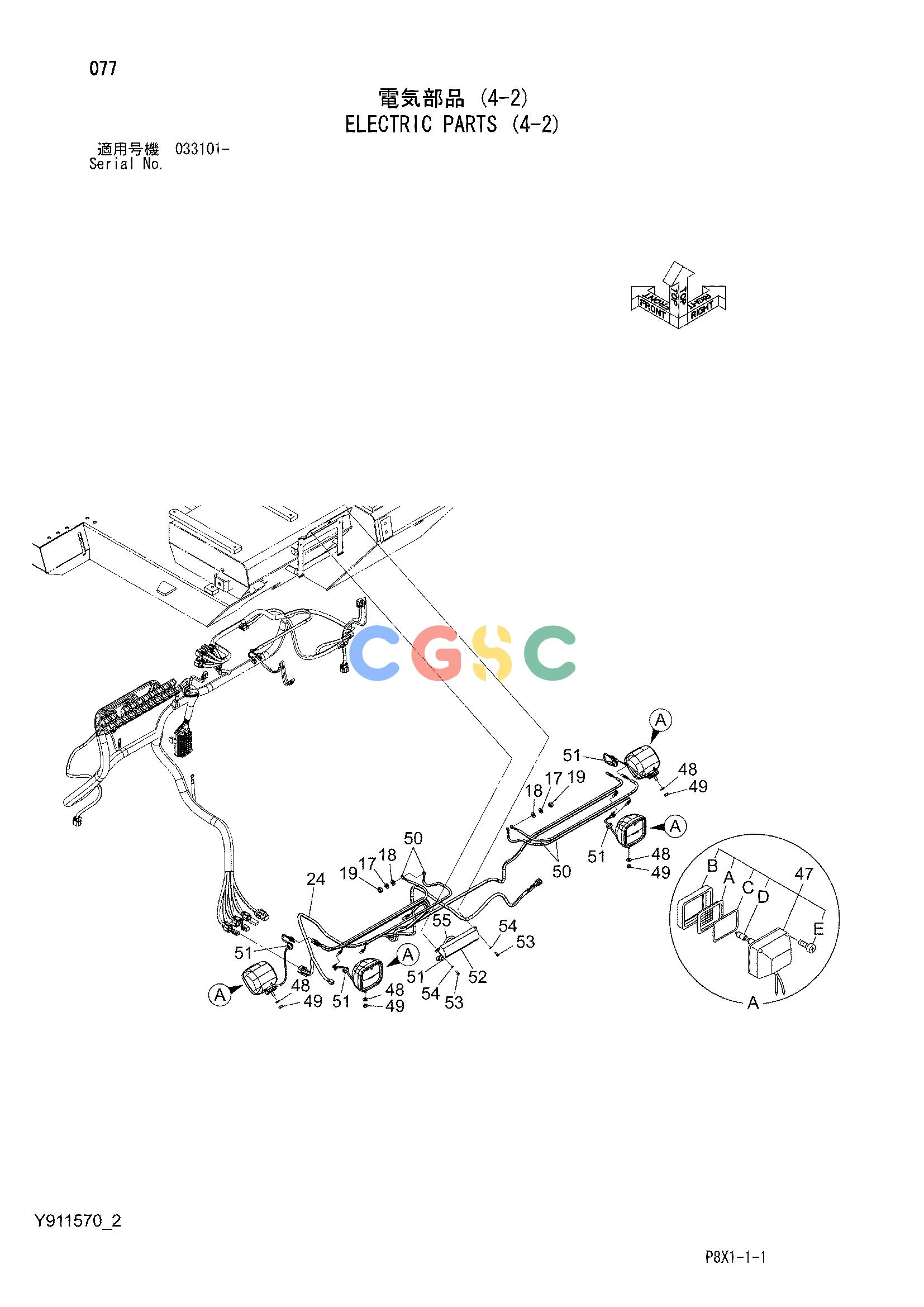

日立零件查询（CS125-3）ELECTRIC PARTS (4-2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
636 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 17. | A590910 | [2] | WASHER;SPRING | |
| 18. | A590110 | [2] | WASHER;PLANE | |
| 19. | J950010 | [2] | NUT | |
| 24. | Y302289 | [1] | HARNESS;WIRE | |
| 47. | Y417671 | [4] | LAMP;HEAD | |
| 47A. | Y418226 | [1] | LENS | |
| 47B. | Y418227 | [1] | RIM | |
| 47C. | Y418228 | [1] | GASCKET | |
| 47D. | Y418229 | [1] | BULB | |
| 47E. | Y418230 | [4] | SCREW | |
| 48. | J222008 | [4] | WASHER | |
| 49. | J950008 | [4] | NUT | |
| 50. | Y404977 | [4] | HARNESS;WIRE | |
| 51. | 4001000 | [5] | BUSHING | |
| 52. | Y417676 | [1] | LAMP | |
| 52A. | Y418233 | [1] | BULB | |
| 53. | J460514 | [2] | SCREW;SEMS | |
| 54. | Y404269 | [2] | WASHER;TOOTH | |
| 55. | Y404337 | [1] | TUBE | |
