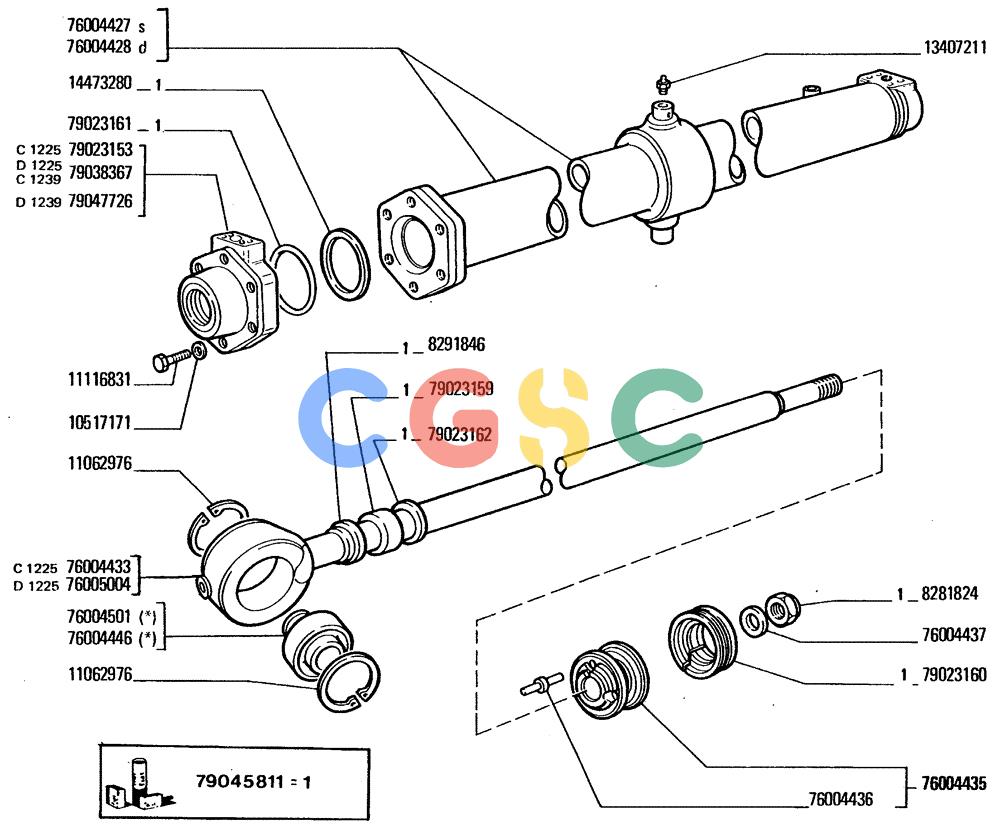

纽荷兰零件查询(FD20) - CRAWLER DOZER (E3.32[001]) - CYLINDER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
842 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 8281824. | 8281824 | [1] | NUT | LEC Superseded by part number: 76015054 |
| 8291846. | 8291846 | [1] | SEAL,70mm ID x 85mm OD x 7.5mm Thk | LECLINING |
| 10517171. | 10517171 | [6] | LOCK WASHER,14.2mm ID x 24.1mm OD x 3.5mm Thk | MKTLOCKWASHER Superseded by part number: 10572074 |
| 11062976. | 11062976 | [2] | SNAP RING,Int, M100 x 3 | TTFRING, LOCKING, Int, M100 x 3 Superseded by part number: S301572 |
| 11116831. | 11116831 | [6] | BOLT,Hex, M14 x 80, 10.9 | LEC |
| 13407211. | 13407211 | [2] | LUBE NIPPLE,M10 x 1 | TTFNIPPLE, LUBE, M10 x 1 Superseded by part number: 84351730 |
| 14473280. | 14473280 | [1] | O-RING,0.21" Thk x 4.475" ID, -349, Cl 5, 75 Duro | LEC-349, 70 Duro, 4.475" ID x .210" Thk Superseded by part number: 70923601 |
| 76004427. | 76004427 | [1] | ENGINE CYLINDER LINER | LECBARREL |
| 76004428. | 76004428 | [1] | ENGINE CYLINDER LINER | LECBARREL |
| 76004433. | 76004433 | [1] | ROD | LECPISTON ROD Superseded by part number: 76005004 |
| 76004435. | 76004435 | [1] | PISTON | LEC Superseded by part number: 71400768 |
| 76004436. | 76004436 | [2] | HYDRAULIC VALVE | LECVALVE Superseded by part number: 76004435, 76004435, 79095886 |
| 76004437. | 76004437 | [1] | WASHER | LEC |
| 76004446. | 76004446 | [1] | SPHERICAL BEARING,40mm ID x 100mm OD x 58mm W | LECBEARING |
| 76004501. | 76004501 | [1] | SPHERICAL BEARING,80 mm ID x 100 mm OD x 58 mm | LECBEARING Superseded by part number: 76004446 |
| 76005004. | 76005004 | [1] | ROD | LECPISTON ROD |
| 79023153. | 79023153 | [1] | PLATE | LECBOTTOM PLATE |
| 79023159. | 79023159 | [1] | BRAKE LINING | LECLINING Superseded by part number: 79065569 |
| 79023160. | 79023160 | [1] | SEAL,100mm ID x 122.9mm OD x 38.1mm Thk | LECLINING |
| 79023161. | 79023161 | [1] | RING | LECO-RING Superseded by part number: 79076122 |
| 79023162. | 79023162 | [1] | RING | LECO-RING Superseded by part number: 79065570 |
| 79038367. | 79038367 | [1] | PIN | LECBOTTOM PLATE Superseded by part number: 79047726 |
| 79045811. | 79045811 | [1] | KIT | LECCONSISTING OF . . . |
| 79047726. | 79047726 | [1] | BASE PLATE | LECBOTTOM PLATE Superseded by part number: 79093739 |
