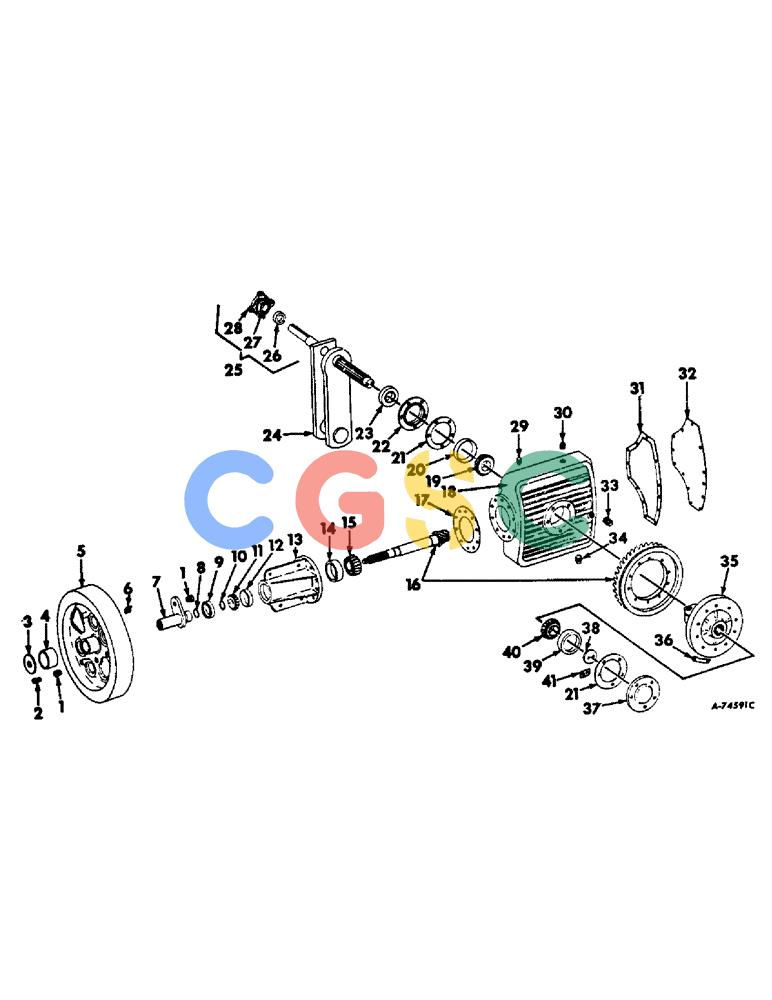

| 1. |
662122R1
|
[2] |
SHEAR BOLT BUSHING,Hex, 3/4" - 16 x 1/2"
|
IH
BUSHING, flywheel shear bolt, serial numbers 430T 50 in. thru 006067, 430W 50 in. thru 001195, 440T 50 in. thru 002160, 440W 50 in. thru 001304
|
| 1. |
662555R1
|
[1] |
BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L
|
IH
shear bolt, serial numbers 430T 006068 and up, 430W 001196 and up, 440T 002161 and up, 440W 001305 and up
|
| 2. |
181620
|
[1] |
SCREW,Hex, 5/16" - 24 x 2", Gr 5
|
IH
BOLT, 5/16-24 x 2 C-Z hex-hd cap screw shear Superseded by part number: 414-532
|
| . . |
120368
|
[1] |
NUT,5/16"-24, G5
|
IH
Superseded by part number: 86629539
|
| . . |
80681
|
[1] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 3. |
667364R91
|
[1] |
WASHER ASSY, flywheel thrust, serial numbers 430T 50 in. thru 006067, 430W 50 in. thru 001195, 440T 50 in. thru 002160, 440W 50 in. thru 001304
|
|
| 3. |
202973C1
|
[1] |
|
P
WASHER, flywheel thrust, serial numbers 430T 007961 thru 009234, 430W 001405 thru 001504, 430T 002769 thru 003512, 440W 001579 thru 001928
|
| 3. |
662103R1
|
[1] |
THRUST WASHER
|
IH
flywheel thrust, serial numbers 430T 006068 thru 007960, 009235 and up, 430W 001196 thru 001404, 001505 and up, 440T 002161 thru 002768, 003513 and up, 440W 001305 thru 001578, 001929 and up
|
| 4. |
662120R1
|
[1] |
BUSHING
|
IH
flywheel outer, serial numbers 430T 50 in. thru 006067, 430W 50 in. thru 001195, 440T 50 in. thru 002160, 440W 50 in. thru 001304
|
| 4. |
201741C1
|
[1] |
FLYWHEEL
|
IH
BUSHING, flywheel, serial numbers 430T 006068 and up, 430W 001196 and up, 440T 002161 and up, 440W 001305 and up
|
| 5. |
667700R21
|
[1] |
FLYWHEEL
|
IH
W/BUSHING, main drive
|
| 6. |
87414
|
[1] |
LUBE NIPPLE,1/4" - 28
|
NH
FITTING, 1/4-28 str self tap lub
|
| 7. |
202483C91
|
[1] |
HUB
|
IH
ASSY, flywheel service pkg., consists of (1) hub assy, flywheel 667633R22 (NSS), (1) bushing 662555R1, (2) shim .005 667605r1, (2) shim .007 667606R1, (1) o-ring 310931R1
|
| 8. |
257611R1
|
[1] |
O-RING,-221, 70 Duro, 1.421" ID x .139" Thk
|
IH
1-7/16 x 1-11/16 x 1/8 Superseded by part number: 70925639
|
| 9. |
669530R91
|
[1] |
OIL SEAL
|
IH
SEAL, pinion shaft front oil
|
| 10. |
667605R1
|
[3] |
SHIM
|
IH
brg preload .005, (or as required)
|
| 10. |
667606R1
|
[2] |
SHIM
|
IH
brg preload .007, (or as required)
|
| 10. |
667607R1
|
[1] |
SHIM
|
IH
brg preload .020, (or as required)
|
| 11. |
ST2118
|
[1] |
TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"
|
IH
BEARING ASSY, pinion shaft front cone, replaces 62923R91 Superseded by part number: 84385347
|
| 12. |
ST987
|
[1] |
BEARING CUP
|
IH
BEARING, pinion shaft front cup, replaces 130503H Superseded by part number: 86900365
|
| 13. |
667601R1
|
[1] |
CASE
|
IH
main drive gear front
|
| . . |
179885
|
[4] |
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
|
IH
Superseded by part number: 87689
|
| . . |
664573R1
|
[4] |
LOCK NUT,1/2"-13, GB
|
IH
NUT, 1/2-13 hex lock Superseded by part number: 231-4218
|
| . . |
103323
|
[4] |
LOCK WASHER,1/2"
|
IH
WASHER, LOCK, 1/2" Superseded by part number: 87326976
|
| . . |
178373R1
|
[4] |
WASHER
|
IH
17/32 x 1 x 16 ga C-Z Superseded by part number: 495-51053
|
| . . |
202675C2
|
[10] |
|
P
SCREW, 7/16-14 x 1-1/2 znd hex-hd Eslok cap
|
| . . |
120383
|
[10] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| 14. |
107577R1
|
[1] |
BEARING, CUP
|
IH
BEARING, pinion shaft rear cup Superseded by part number: 86613256
|
| 15. |
662062R91
|
[1] |
ROLLER BEARING
|
IH
ASSY, pinion shaft rear cone
|
| 16. |
662050R11
|
[1] |
STRIPPER PACKAGE
|
IH
GEAR SET, ring and pinion Superseded by part number: 3102207R91
|
| . . |
427646
|
[1] |
SLOTTED NUT,7/8"-14, G5
|
IH
NUT, 7/8-14 C-Z slt hex., serial numbers 430T 50 in. thru 006067, 430W 50 in. thru 001195, 440T 50 in. thru 002160, 440W 50 in. thru 001304 Superseded by part number: 26963R1
|
| . . |
425-1914
|
[1] |
SLOTTED NUT,7/8"-14, G5, Thk
|
CAS
NUT, 7/8-14 znd slotted thick hex, serial numbers, 430T 006068 and up, 430W 001196 and up, 440T 002161 and up, 440W 001305 and up
|
| . . |
137218
|
[1] |
COTTER PIN,5/32" x 1 1/4"
|
IH
PIN, SPLIT (COTTER), , Wire, 6 in. 16 ga. 5/32" x 1 1/4" Superseded by part number: 86523851
|
| 17. |
662088R1
|
[2] |
SHIM
|
IH
main drive gear, .020, (or as required)
|
| 17. |
662089R1
|
[2] |
SHIM
|
IH
main drive gear .007, (or as required)
|
| 17. |
662090R1
|
[3] |
SHIM
|
IH
main drive gear .005, (or as required)
|
| 18. |
667600R2
|
[1] |
CASE
|
IH
main drive rear
|
| . . |
271547
|
[2] |
STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5
|
NNA
SCREW, 5/8-11 x 1-1/2 znd hex-hd cap Superseded by part number: 413-1024, 413-1024, NLS
|
| . . |
492-11062
|
[2] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| . . |
322593R1
|
[2] |
BOLT
|
IH
SCREW, 3/4-10 x 2-1/2 C-Z hex-hd Nylock cap
|
| . . |
87340
|
[2] |
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
|
NH
WASHER, LOCK, 3/4"
|
| 19. |
ST2083
|
[1] |
BEARING ASSY
|
IH
main drive gear RH cone
|
| 20. |
13390D
|
[1] |
ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"
|
IH
main drive gear RH cup Superseded by part number: 163044
|
| 21. |
662091R1
|
[8] |
SHIM
|
IH
main drive bevel gear .005, (or as required)
|
| 21. |
662093R1
|
[4] |
SHIM
|
IH
main drive bevel gear .007, (or as required)
|
| 21. |
662092R1
|
[2] |
SHIM
|
IH
main drive bevel gear .020, (or as required)
|
| 22. |
662017R1
|
[1] |
COVER
|
IH
main drive bevel gear brg
|
| . . |
202676C1
|
[5] |
|
P
SCREW, 3/8-16 x 1 znd hex-hd Eslok cap
|
| . . |
120382
|
[5] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 23. |
662066R91
|
[1] |
OIL SEAL,60.33mm ID x 92.15mm OD x 11mm Thk
|
IH
plunger crank RH oil
|
| 24. |
667632R92
|
[1] |
CRANKSHAFT
|
IH
ASSY, plunger
|
| 25. |
667860R91
|
[1] |
BEARING ASSY,2.5" ID x 3.6875" OD x 1.90625"
|
IH
ASSY, plunger crank RH
|
| 26. |
668041R11
|
[1] |
NO LONGER SERVICED
|
IH
COLLAR W/SET SCREW, brg locking Superseded by part number: 668712R91
|
| 27. |
668040R91
|
[1] |
NO LONGER SERVICED
|
IH
BEARING, plunger crank Superseded by part number: 668712R91
|
| . . |
12686R1
|
[4] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd
|
IH
BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd Superseded by part number: 84198537
|
| . . |
120378
|
[4] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| . . |
120384
|
[4] |
WASHER,1/2"
|
IH
LOCK, 1/2" Superseded by part number: 116121
|
| 29. |
152127H1
|
[1] |
BREATHER,1/8"-27, Short
|
IH
VENT ASSY, main drive gear box, replaces 663002R91 Superseded by part number: 219-433
|
| 30. |
444676
|
[1] |
DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF
|
IH
PLUG, 1-11-1/2 automotive sq soc-hd pipe Superseded by part number: 221-846
|
| 31. |
667603R1
|
[1] |
GASKET
|
IH
main drive gear box cover
|
| 32. |
667602R11
|
[1] |
COVER
|
IH
ASSY, main drive gear case rear
|
| . . |
18764R1
|
[13] |
HARDWARE,Hex, 5/16"-18 x 3/4", G2
|
IH
BOLT, 5/16 x 3/4 C-Z hex-hd mach Superseded by part number: 424-512
|
| 33. |
9617020
|
[1] |
PLUG,1/4" - 18 x 0.48"
|
NH
1/4-18 automotive Hex Socket
|
| 34. |
438159
|
[1] |
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
|
IH
PLUG, 1/2-14 automotive sq-hd pipe Superseded by part number: 444587
|
| 35. |
670568R1
|
[1] |
HUB
|
IH
main bevel gear
|
| . . |
181701
|
[10] |
BOLT,Hex, 1/2" - 20 x 1 5/8", Gr 5
|
IH
SCREW, 1/2-20 x 1-5/8 C-Z hex-hd cap Superseded by part number: 414-826
|
| 36. |
261622R1
|
[5] |
PLATE, LOCKING
|
IH
LOCKPLATE, main drive gear hub cap screw
|
| 37. |
667604R1
|
[1] |
CAP
|
IH
main drive bevel gear
|
| 38. |
200525C1
|
[1] |
WASHER
|
IH
plunger crankshaft thrust
|
| . . |
229057R1
|
[2] |
|
P
SCREW, 3/8-24 x 1 hex-hd cap
|
| 39. |
13363D
|
[1] |
TAPERED BEARING
|
IH
BEARING, main drive gear cup Superseded by part number: 510892
|
| 40. |
971528R91
|
[1] |
BEARING
|
IH
ASSY, main drive gear cone Superseded by part number: 86577085
|
| 41. |
201580C1
|
[1] |
PLATE
|
IH
TAB, bolt holder
|
| . . |
181364
|
[2] |
BOLT,Hex, 3/8" - 24 x 1", Gr 5
|
IH
SCREW, 3/8-24 x 1 hex-hd cap Superseded by part number: 88374
|
