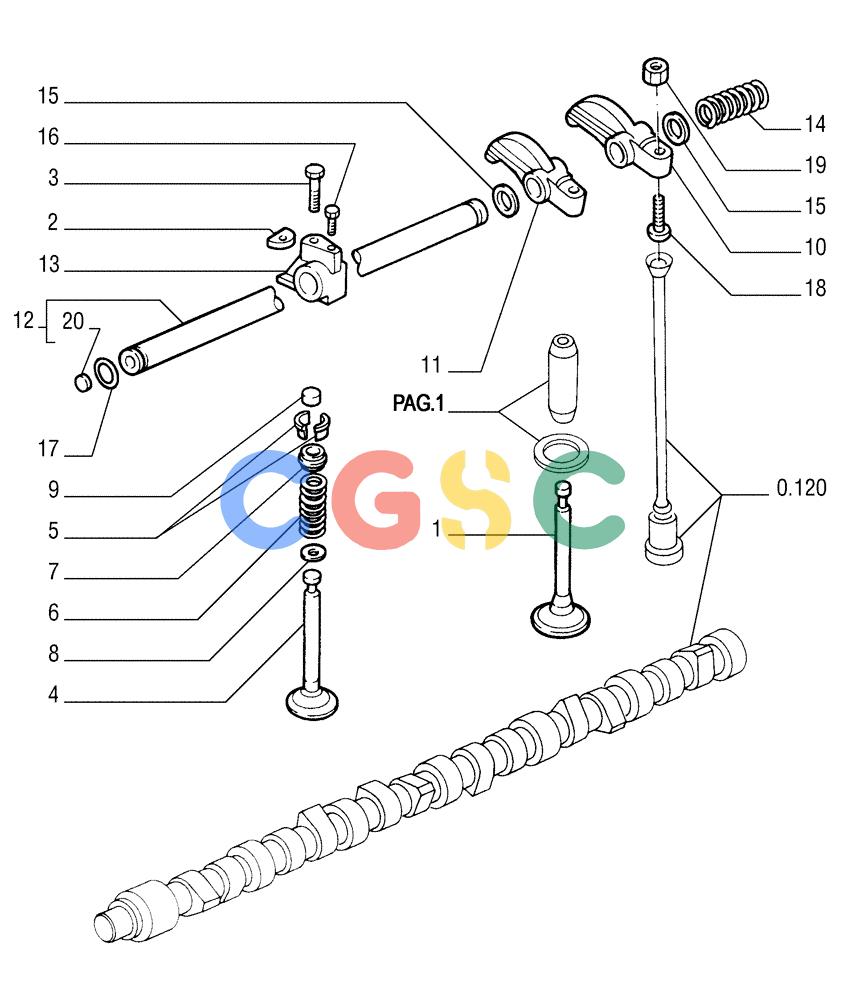

纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (0.060[02]) - CYLINDER HEAD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
964 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 61320722 | [6] | STD INLET VALVE | LECSTD ENGINE INLET VALVE, Serial Range: -C3747 Superseded by part number: 61320865 |
| 1. | 61320865 | [6] | STD INLET VALVE | ZEDSTD ENGINE INLET VALVE, Start Serial: D3747 |
| 2. | 61317063 | [6] | WASHER | LEC |
| 3. | 61316738 | [6] | SCREW | LECM10X1,25 |
| 4. | 61321255 | [6] | STD EXHAUST VALVE | LECSTD ENGINE EXHAUST VALVE Superseded by part number: 61315973 |
| 5. | 61577211 | [24] | ROCKER ARM COTTER | LEC Superseded by part number: 61320851 |
| 6. | 61317164 | [12] | SPRING | LEC |
| 7. | 61577210 | [12] | CUP | LEC |
| 8. | 61577212 | [12] | SPACER | LEC |
| 9. | 61316052 | [12] | FLANGE COVER CAP | LEC |
| 10. | 61315099 | [6] | ROCKER ARM | LEC- INTAKE VALVE |
| 11. | 61315100 | [6] | ROCKER ARM | LEC- EXHAUST VALVE |
| 12. | 61320081 | [2] | SHAFT | LEC- ASSY |
| 13. | 61315977 | [6] | SUPPORT | LEC Superseded by part number: |
| 14. | 61577214 | [4] | SPRING | LEC |
| 15. | 61581230 | [12] | WASHER | LEC |
| 16. | 61577283 | [2] | SCREW | LEC |
| 17. | 11067276 | [4] | SNAP RING,M24, Ext | JES |
| 18. | 4786841 | [12] | SCREW | MOD |
| 19. | 61584377 | [12] | NUT | MOD |
| 20. | 14328501 | [2] | PLUG,M16, Tapered | TOR |
