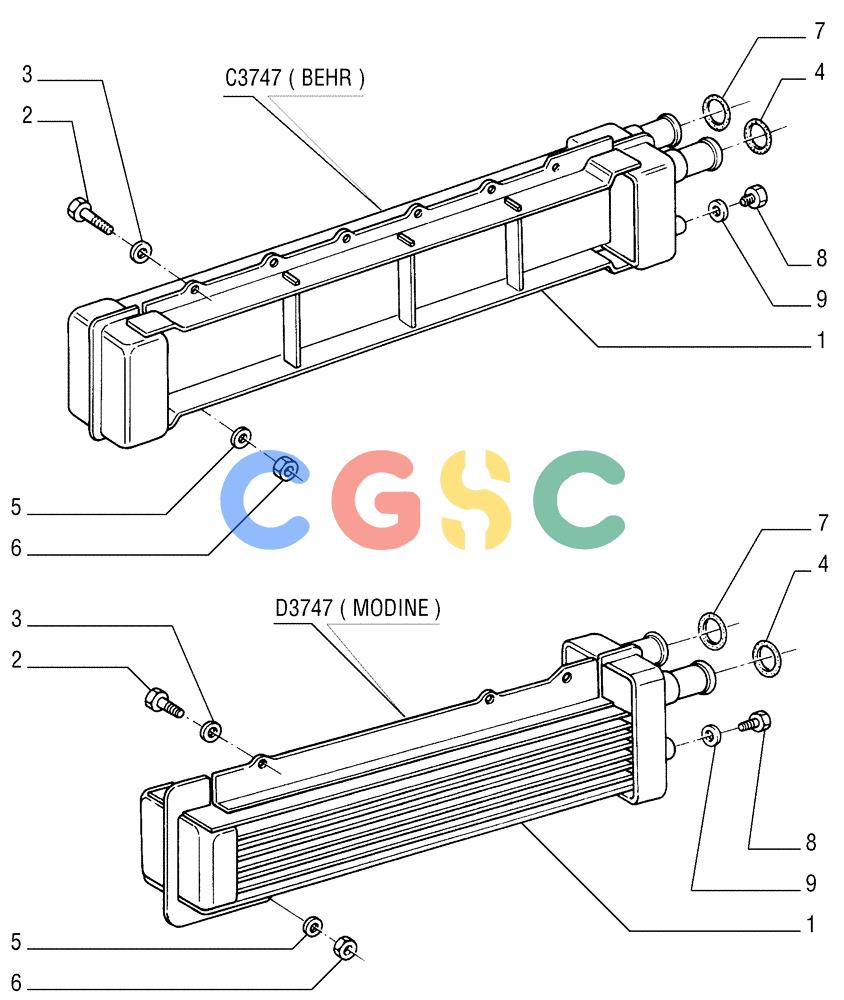

纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (0.246[01]) - ENGINE COOLING SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
267 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 61319276 | [1] | INTERNAL EXCHANGE UNIT | LECWATER-AIR, Start Serial: D3747 |
| 1. | 61318999 | [1] | INTERNAL EXCHANGE UNIT | LECWATER-AIR, Serial Range: -C3747 Superseded by part number: 61319276 |
| 3. | 11193874 | [12] | BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 | TTF |
| 4. | 61319606 | [1] | O-RING | LEC |
| 5. | 17095224 | [1] | WASHER | LEC |
| 6. | 16103611 | [1] | THIN NUT,Thin, M12 x 1.25, Cl 04 | TTF12X1,25 Superseded by part number: 16103621 |
| 7. | 17281980 | [1] | GASKET | LEC Superseded by part number: 86977728 |
| 8. | 10300211 | [1] | PLUG | LEC6 |
| 9. | 10297760 | [1] | COPPER WASHER,M6.2 x 12 x 1, Copper | MKT |
| 2. | 16043324 | [12] | BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd | TTF |
