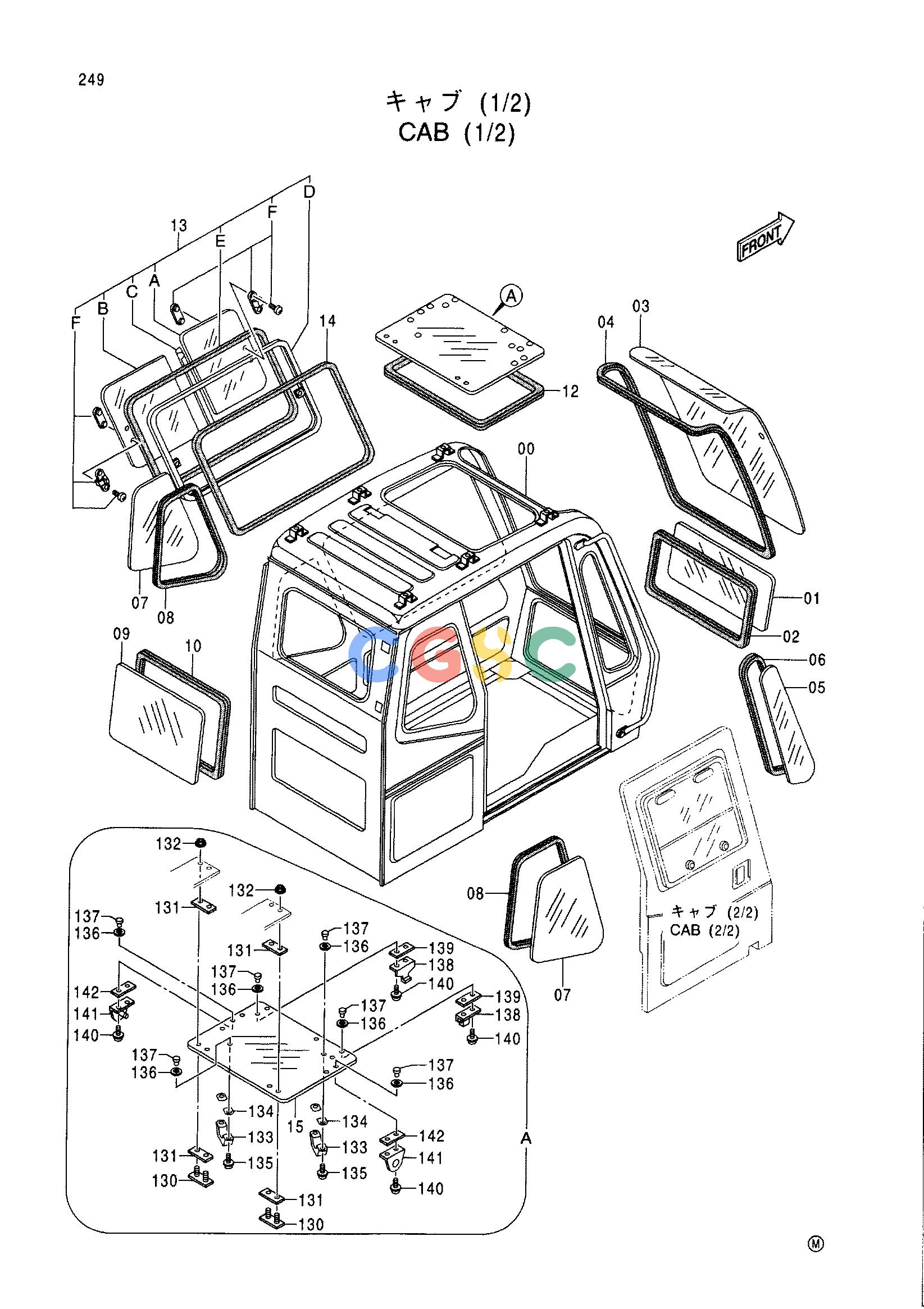

日立零件查询（CX1000）CAB (1/2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
202 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4338172 | [1] | CAB ASS'Y (1/2) | This PART NO. consists of all parts shown in CAB (1/2) to (2/2). |
| 00. | +++++++ | [1] | CAB | |
| 01. | 4382185 | [1] | GLASS | |
| 02. | 4345180 | [1] | WEATHER-STRIP | |
| 03. | 4414652 | [1] | GLASS | |
| 04. | 4345182 | [1] | WEATHER-STRIP | |
| 05. | 4382190 | [1] | GLASS | |
| 06. | 4345184 | [1] | WEATHER-STRIP | |
| 07. | 4382191 | [2] | GLASS | |
| 08. | 4345186 | [2] | WEATHER-STRIP | |
| 09. | 4382189 | [1] | GLASS | |
| 10. | 4345188 | [1] | WEATHER-STRIP | |
| 12. | 4345190 | [1] | WEATHER-STRIP | |
| 13. | 4382194 | [1] | SASH | |
| 13A. | 4382187 | [1] | GLASS | |
| 13B. | 4382188 | [1] | GLASS | |
| 13C. | 4345200 | [1] | WEATHER-STRIP | |
| 13D. | 4345332 | [1] | FRAME | |
| 13E. | 4345333 | [1] | GLASS-RUN | |
| 13F. | 4345334 | [2] | LOCK | |
| 14. | 4345192 | [1] | WELT | |
| 15. | 4382192 | [1] | GLASS | |
| 130. | 4479122 | [2] | BRACKET | |
| 131. | 4479119 | [4] | SEAL | |
| 132. | 4479230 | [4] | NUT | |
| 133. | 4479128 | [2] | GRIP | |
| 134. | 4479126 | [4] | SEAL | |
| 135. | J680516 | [4] | SCREW;SEMS | |
| 136. | 4350071 | [12] | PACKING | |
| 137. | 4345337 | [12] | HOLDER | |
| 138. | 4479123 | [2] | BRACKET | |
| 139. | 4479120 | [2] | SEAL | |
| 140. | J680512 | [8] | SCREW;SEMS | |
| 141. | 4479129 | [2] | BRACKET | |
| 142. | 4479121 | [2] | SEAL | |
