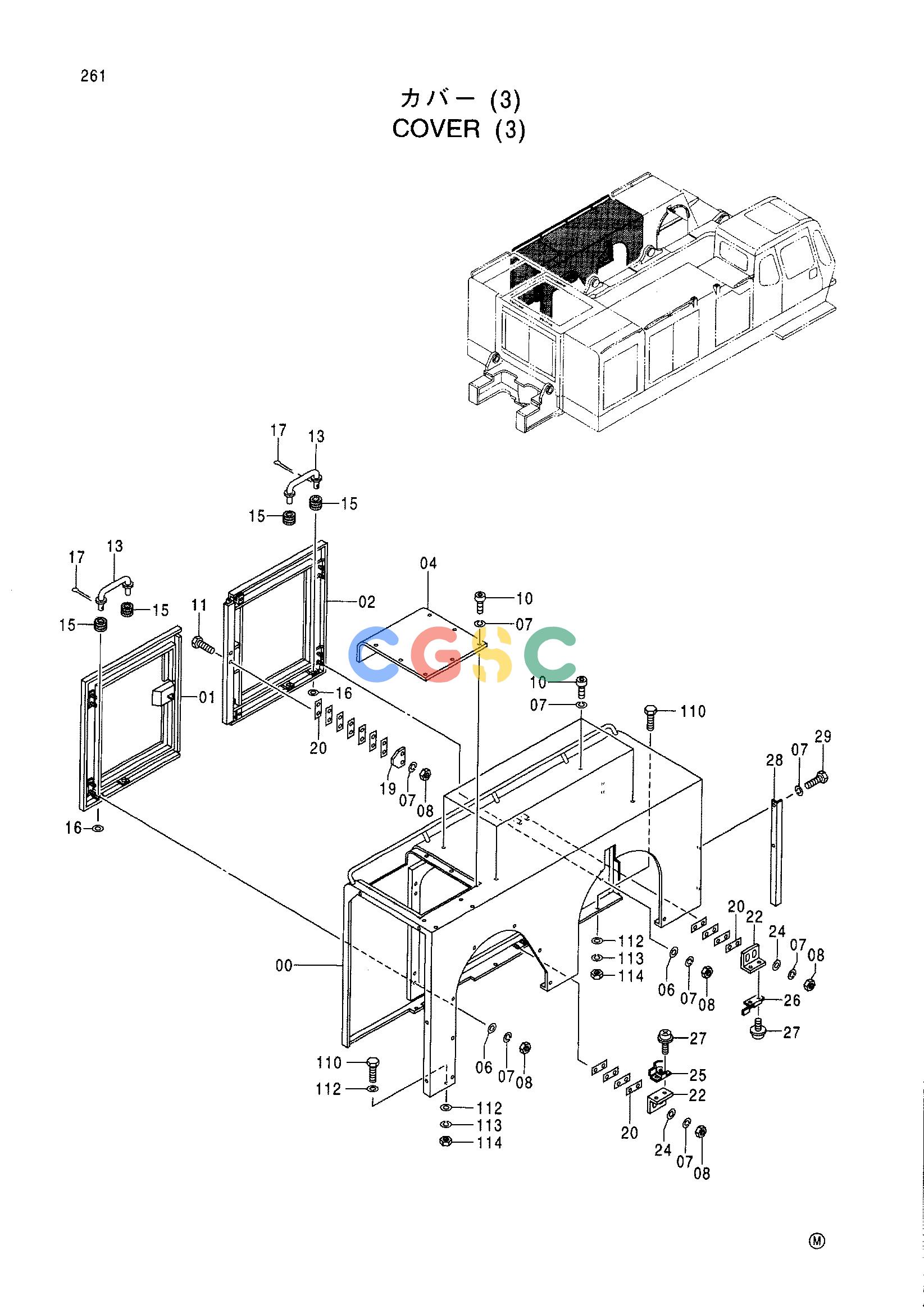

日立零件查询（CX1000）COVER (3) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
898 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 5005074 | [1] | COVER | |
| 01. | 7031695 | [1] | DOOR | |
| 02. | 7031696 | [1] | DOOR | |
| 04. | 7031702 | [1] | ROOF | |
| 06. | A590110 | [8] | WASHER;PLANE | |
| 07. | A590910 | [27] | WASHER;SPRING | |
| 08. | J950010 | [14] | NUT | |
| 10. | 4330985 | [11] | BOLT | |
| 11. | J901028 | [2] | BOLT | |
| 13. | 9742293 | [2] | STAY | |
| 15. | 4330808 | [4] | BUSHING;RUBBER | |
| 16. | A590108 | [2] | WASHER;PLANE | |
| 17. | A762013 | [2] | PIN;SPLIT | |
| 19. | 4330979 | [1] | LOCK | |
| 20. | 4330984 | [15] | SHIM 1.0 | |
| 22. | 4346147 | [2] | BRACKET | |
| 24. | J217083 | [4] | WASHER | |
| 25. | 4346579 | [1] | LOCK | |
| 26. | 4346580 | [1] | LOCK | |
| 27. | J680412 | [4] | SCREW;SEMS | |
| 28. | 4383322 | [1] | STAY | |
| 29. | J901025 | [2] | BOLT | |
| 110. | J901230 | [6] | BOLT | |
| 112. | 449490 | [6] | WASHER | |
| 113. | A590912 | [6] | WASHER;SPRING | |
| 114. | J950012 | [6] | NUT | |
