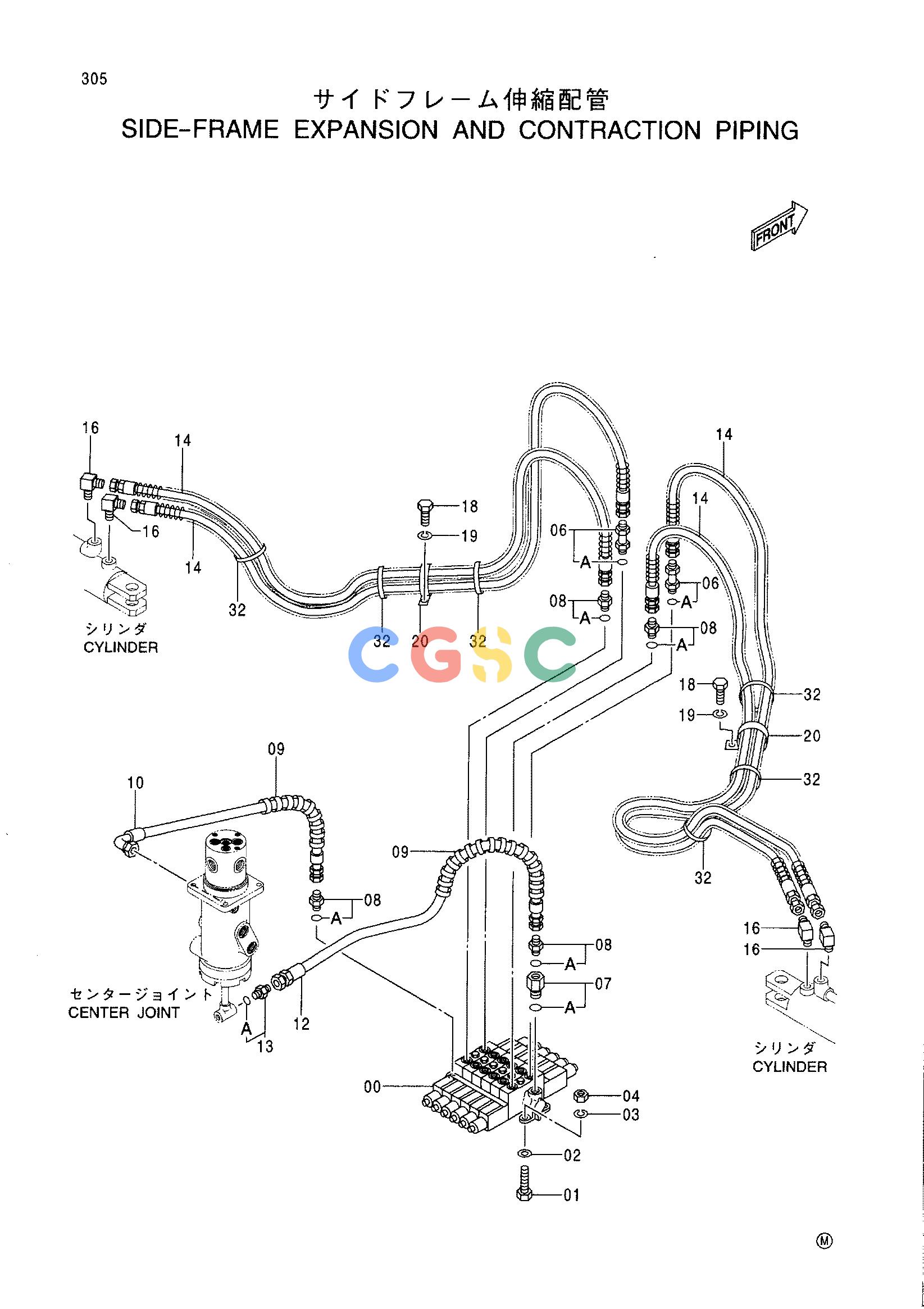

日立零件查询（CX1000）SIDE-FRAME EXPANSION AND CONTRACTION PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
791 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4455102 | [1] | VALVE;CONTROL | |
| 01. | J901040 | [3] | BOLT | |
| 02. | A590110 | [3] | WASHER;PLANE | |
| 03. | A590910 | [3] | WASHER;SPRING | |
| 04. | J950010 | [3] | NUT | |
| 06. | 4139969 | [2] | ADAPTER;S | |
| 06A. | 4506418 | [1] | O-RING | |
| 07. | 4263450 | [1] | REDUCER;S | |
| 07A. | 4506424 | [1] | O-RING | |
| 08. | 4159158 | [4] | ADAPTER;S | |
| 08A. | 4506418 | [1] | O-RING | |
| 09. | 4044420 | [2] | PROTECTOR | |
| 10. | 4247558 | [1] | HOSE | |
| 12. | 4024994 | [1] | HOSE | |
| 13. | 4042031 | [1] | ADAPTER;S | |
| 13A. | 4509180 | [1] | O-RING | |
| 14. | 4456579 | [4] | HOSE | |
| 16. | 94-1402 | [4] | ELBOW;S | |
| 18. | J901016 | [2] | BOLT | |
| 19. | A590910 | [2] | WASHER;SPRING | |
| 20. | 4190266 | [2] | CLIP | |
| 32. | 4121859 | [8] | CLIP;BAND | |
