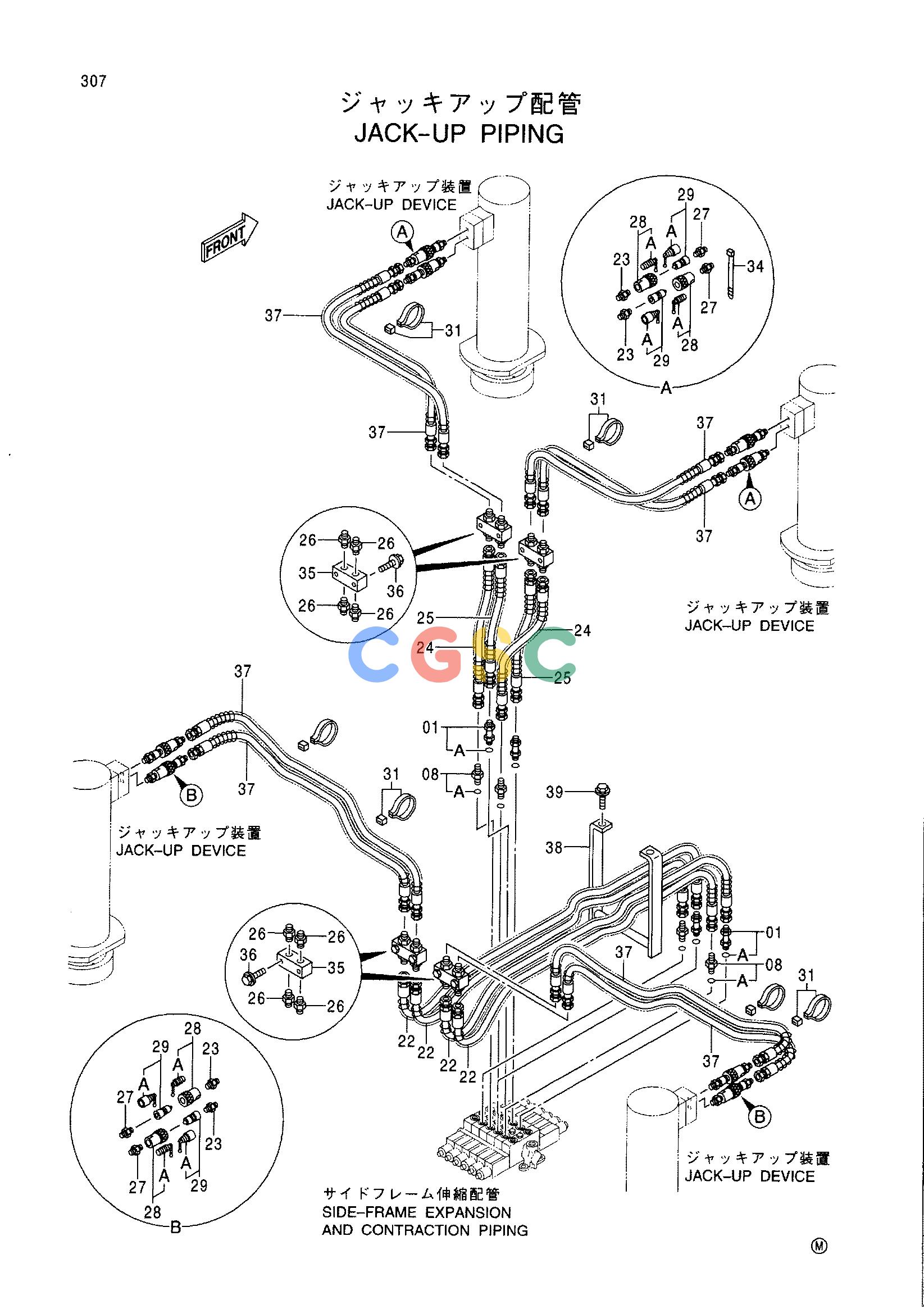

日立零件查询（CX1000）JACK-UP PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
421 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4139969 | [4] | ADAPTER;S | |
| 01A. | 4506418 | [1] | O-RING | |
| 08. | 4159158 | [4] | ADAPTER;S | |
| 22. | 4456573 | [4] | HOSE | |
| 23. | 94-1302 | [8] | ADAPTER;S | |
| 24. | 4456575 | [2] | HOSE | |
| 25. | 4456576 | [2] | HOSE | |
| 26. | 4042031 | [16] | ADAPTER | |
| 27. | 94-1702 | [8] | ADAPTER;S | |
| 28. | 4022907 | [8] | JOINT;SELF-SEAL | |
| 28A. | 4072595 | [1] | CAP | |
| 29. | 4022908 | [8] | JOINT;SELF-SEAL | |
| 29A. | 4072596 | [1] | CAP | |
| 31. | 4077322 | [4] | BAND | |
| 34. | 4044883 | [16] | CLAMP | |
| 35. | 3092345 | [4] | BLOCK | |
| 36. | J011065 | [8] | BOLT;SEMS | |
| 37. | 4226317 | [8] | HOSE | |
| 38. | 9756835 | [1] | BRACKET | |
| 39. | J011245 | [2] | BOLT;SEMS | |
