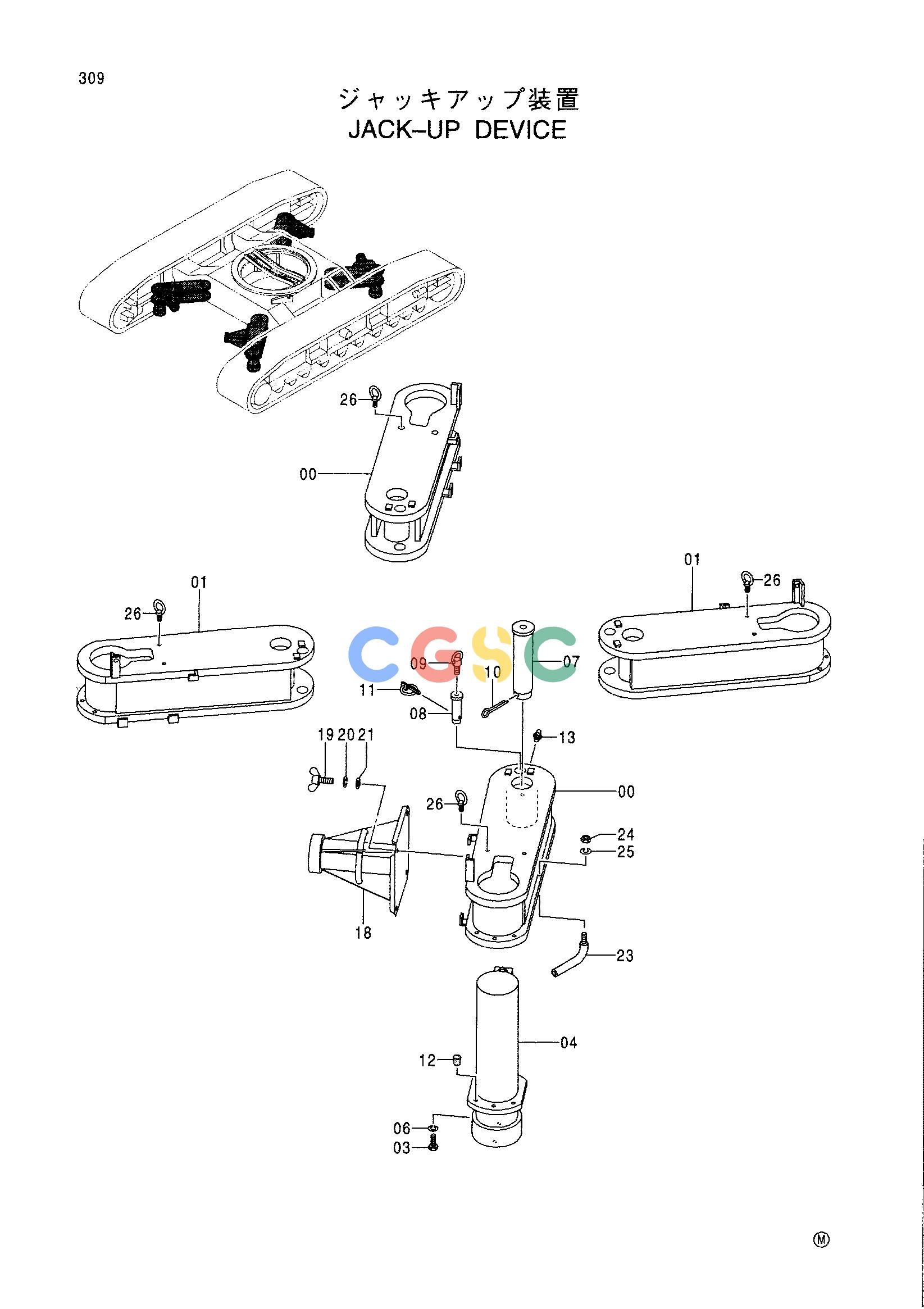

日立零件查询（CX1000）JACK-UP DEVICE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
1010 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 7031637 | [2] | BEAM | |
| 01. | 7031070 | [2] | BEAM | |
| 03. | J901650 | [20] | BOLT | |
| 04. | 4188681 | [4] | CYL.;JACK | |
| 06. | A590916 | [20] | WASHER;SPRING | |
| 07. | 4362280 | [4] | PIN | |
| 08. | 4226129 | [8] | PIN | |
| 09. | 960821 | [8] | BOLT;EYE | |
| 10. | A761002 | [4] | PIN;SPLIT | |
| 11. | 947447 | [8] | PIN;RING | |
| 12. | 428028 | [20] | CORK | |
| 13. | J75581 | [4] | FITTING;GREASE | |
| 18. | 7031086 | [4] | FLOAT | |
| 19. | M361025 | [4] | BOLT;WING | |
| 20. | A590910 | [4] | WASHER;SPRING | |
| 21. | J217083 | [4] | WASHER | |
| 23. | 9730826 | [4] | HANGER | |
| 24. | J950012 | [4] | NUT | |
| 25. | A590912 | [4] | WASHER;SPRING | |
| 26. | 4083751 | [8] | BOLT;EYE | |
