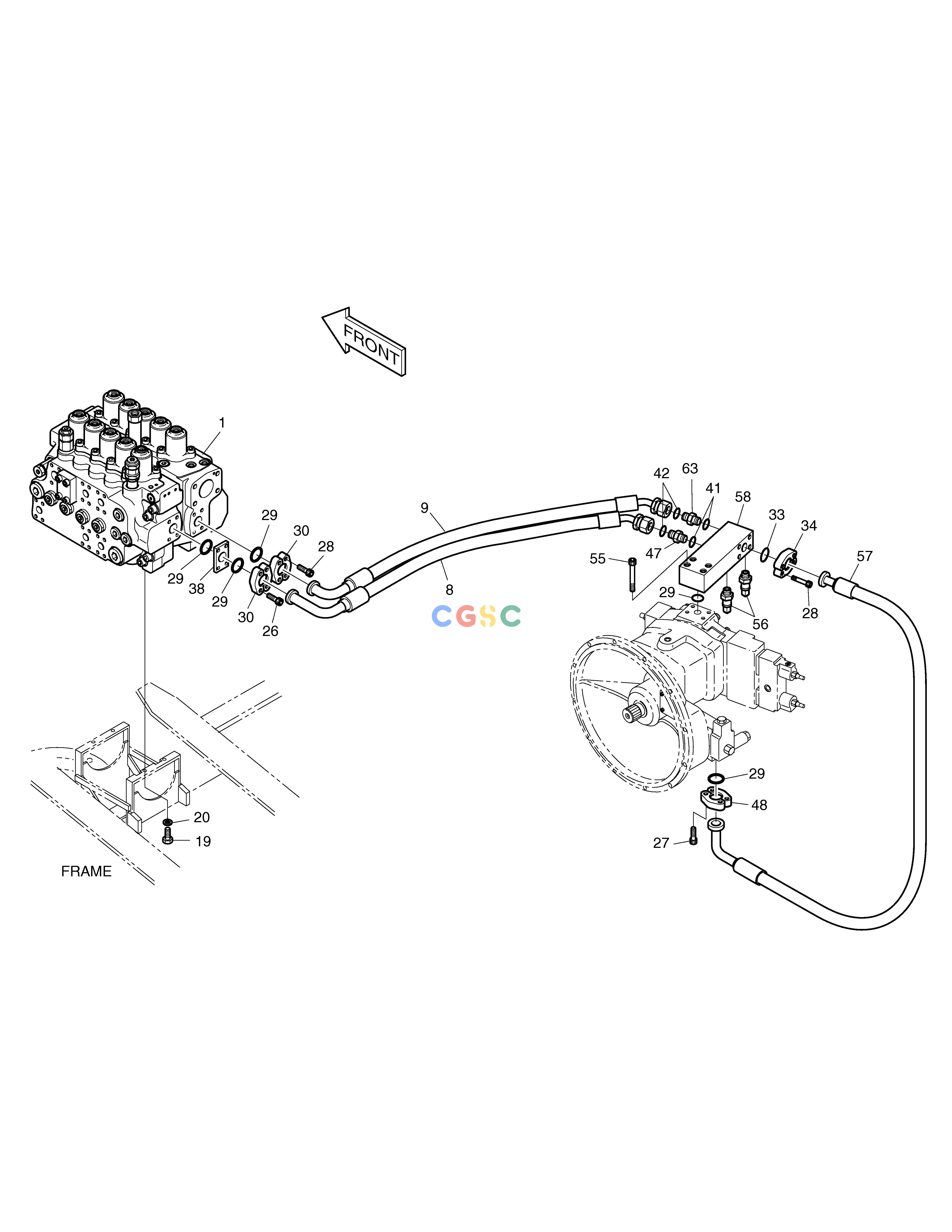

斗山零件查询MAIN PIPING(1)-PUMP SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
699 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01222
|
[-] |
MAIN PIPING
|
|
| -. |
420212-01165
|
[-] |
|
|
| 1. |
426-E0054
|
[1] |
CONTROL VALVE ASS'Y
|
410105-00065
|
| 1. |
410105-00065
|
[1] |
|
|
| 19. |
S0515353
|
[4] |
BOLT M12X1.75X35
|
|
| 20. |
S5102703
|
[4] |
WASHER
|
|
| 26. |
S2212466
|
[4] |
BOLT
|
|
| 27. |
S2215466
|
[4] |
BOLT
|
|
| 28. |
S2212266
|
[8] |
BOLT
|
|
| 29. |
2180-1026D19
|
[5] |
O-RING
|
|
| 30. |
2181-9078
|
[4] |
FLANGE;SPLIT
|
|
| 33. |
2180-1026D2
|
[1] |
O-RING
|
|
| 34. |
2181-9079
|
[2] |
FLANGE
|
|
| 38. |
2181-2620
|
[1] |
BLOCK;SPACER
|
|
| 41. |
S8000231
|
[2] |
O-RING
|
|
| 42. |
S8030121
|
[2] |
O-RING
|
|
| 47. |
2181-2627D1
|
[1] |
ADAPTER
|
|
| 48. |
2181-9084
|
[2] |
FLANGE;SPLIT
|
|
| 55. |
S2215866
|
[4] |
BOLT;SOCKET M12X1.75X60
|
|
| 56. |
2547-9045
|
[2] |
SENSOR;PRESSURE
|
|
| 57. |
DS2040361
|
[1] |
HOSE-910L
|
|
| 58. |
423-00175B
|
[1] |
BLOCK
|
|
| 63. |
2181-2627D7
|
[1] |
ADAPTER
|
|
| 8. |
DS2065018
|
[1] |
HOSE(PUMP)-980L
|
|
| 9. |
DS2065013
|
[1] |
HOSE(PUMP)-950L
|
|
