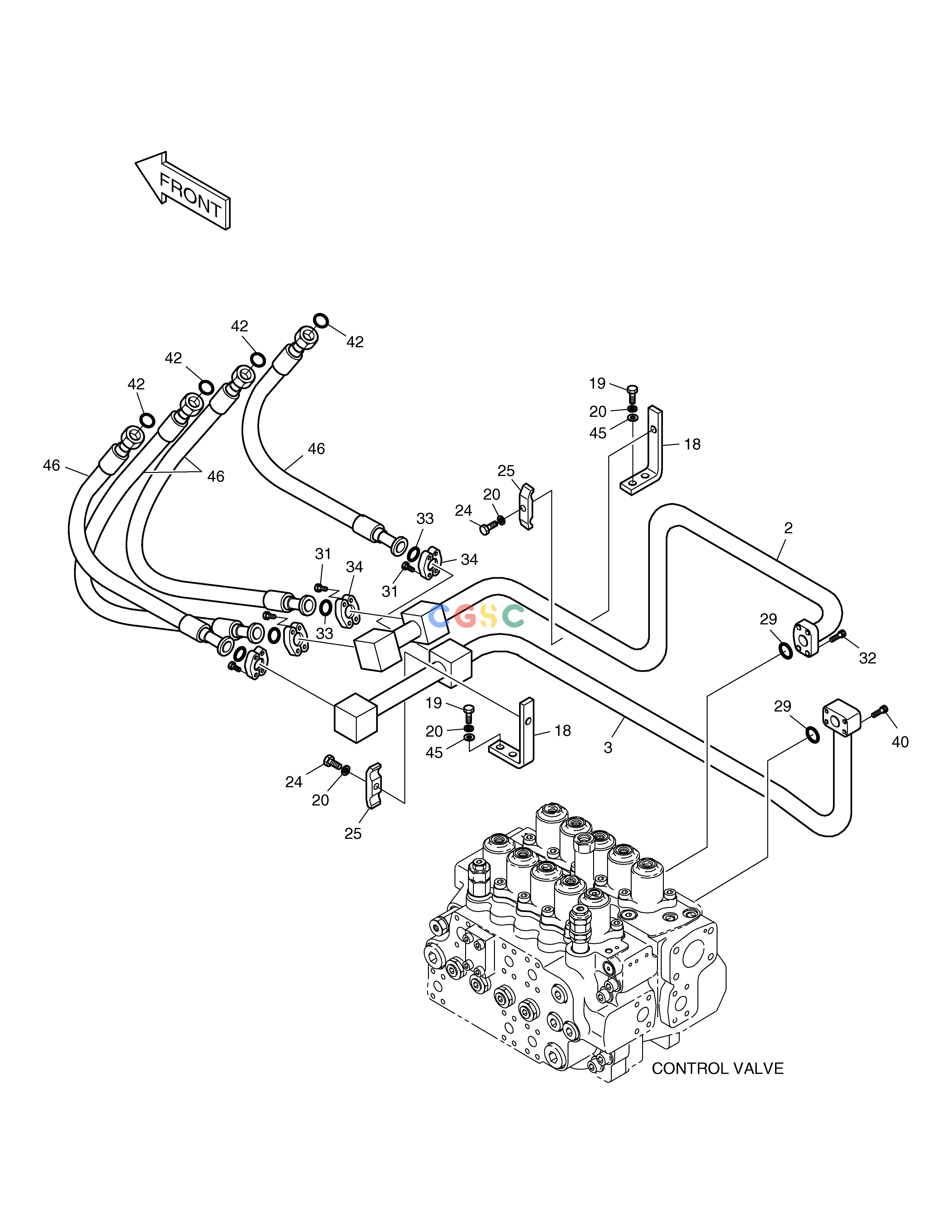

斗山零件查询MAIN PIPING(2)-BOOM SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
141 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01222
|
[-] |
MAIN PIPING
|
|
| 18. |
2195-3657
|
[2] |
BRACKET
|
|
| 19. |
S0515353
|
[4] |
BOLT M12X1.75X35
|
|
| 2. |
2140-1624A
|
[1] |
PIPE;BOOM DOWN
|
|
| 20. |
S5102703
|
[6] |
WASHER
|
|
| 24. |
S0561053
|
[2] |
BOLT
|
|
| 25. |
2124-1025D5
|
[2] |
CLAMP;PIPE
|
|
| 29. |
2180-1026D19
|
[2] |
O-RING
|
|
| 3. |
2140-1625A
|
[1] |
PIPE;BOOM UP
|
|
| 31. |
S2212066
|
[16] |
BOLT
|
|
| 32. |
S2212366
|
[4] |
BOLT
|
|
| 33. |
2180-1026D2
|
[4] |
O-RING
|
|
| 34. |
2181-9079
|
[8] |
FLANGE
|
|
| 40. |
S2212666
|
[4] |
BOLT;SOCKET M10X1.5X50
|
|
| 42. |
S8030121
|
[4] |
O-RING
|
|
| 45. |
S5010713
|
[4] |
WASHER;PLAIN
|
|
| 46. |
2184-1229D12
|
[4] |
HOSE PF3/8-730L
|
|
