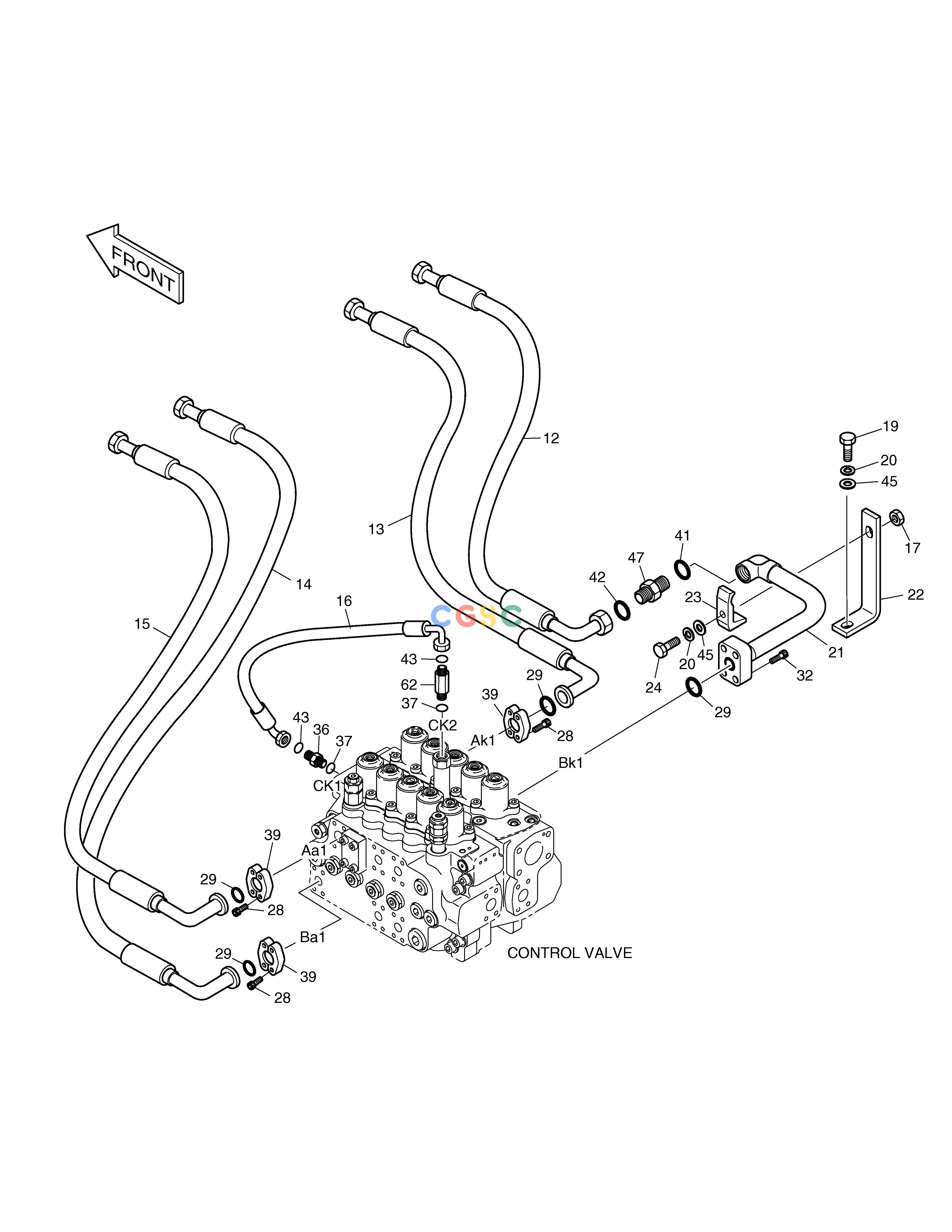

斗山零件查询MAIN PIPING(3)-ARM.BUCKET SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
907 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01222
|
[-] |
MAIN PIPING
|
|
| 12. |
2184-1250D14
|
[1] |
HOSE PF3/4-1180L
|
|
| 13. |
2184-1250D6
|
[1] |
HOSE PF3/4-1350L
|
|
| 14. |
2184-1250D15
|
[1] |
HOSE PF3/4-1200L
|
|
| 15. |
2184-1250D74
|
[1] |
HOSE PF3/4-1300L
|
|
| 16. |
2184-1198D15
|
[1] |
HOSE PF1/2-600L
|
|
| 17. |
S4012733
|
[1] |
NUT
|
|
| 19. |
S0515353
|
[1] |
BOLT M12X1.75X35
|
|
| 20. |
S5102703
|
[2] |
WASHER
|
|
| 21. |
2140-1334
|
[1] |
PIPE
|
|
| 22. |
2197-1658
|
[1] |
BRACKET
|
|
| 23. |
2124-1026D2
|
[1] |
CLAMP
|
|
| 24. |
S0561053
|
[1] |
BOLT
|
|
| 28. |
S2212266
|
[12] |
BOLT
|
|
| 29. |
2180-1026D19
|
[4] |
O-RING
|
|
| 32. |
S2212366
|
[4] |
BOLT
|
|
| 36. |
2181-4133D3
|
[1] |
ADAPTER
|
|
| 37. |
S8000181
|
[2] |
O-RING
|
|
| 39. |
2181-9083
|
[6] |
FLANGE;SPLIT
|
|
| 41. |
S8000231
|
[1] |
O-RING
|
|
| 42. |
S8030121
|
[1] |
O-RING
|
|
| 43. |
S8030081
|
[2] |
O-RING
|
|
| 45. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 47. |
2181-2627D1
|
[1] |
ADAPTER
|
|
| 62. |
2181-4133D46
|
[1] |
ADAPTER
|
|
