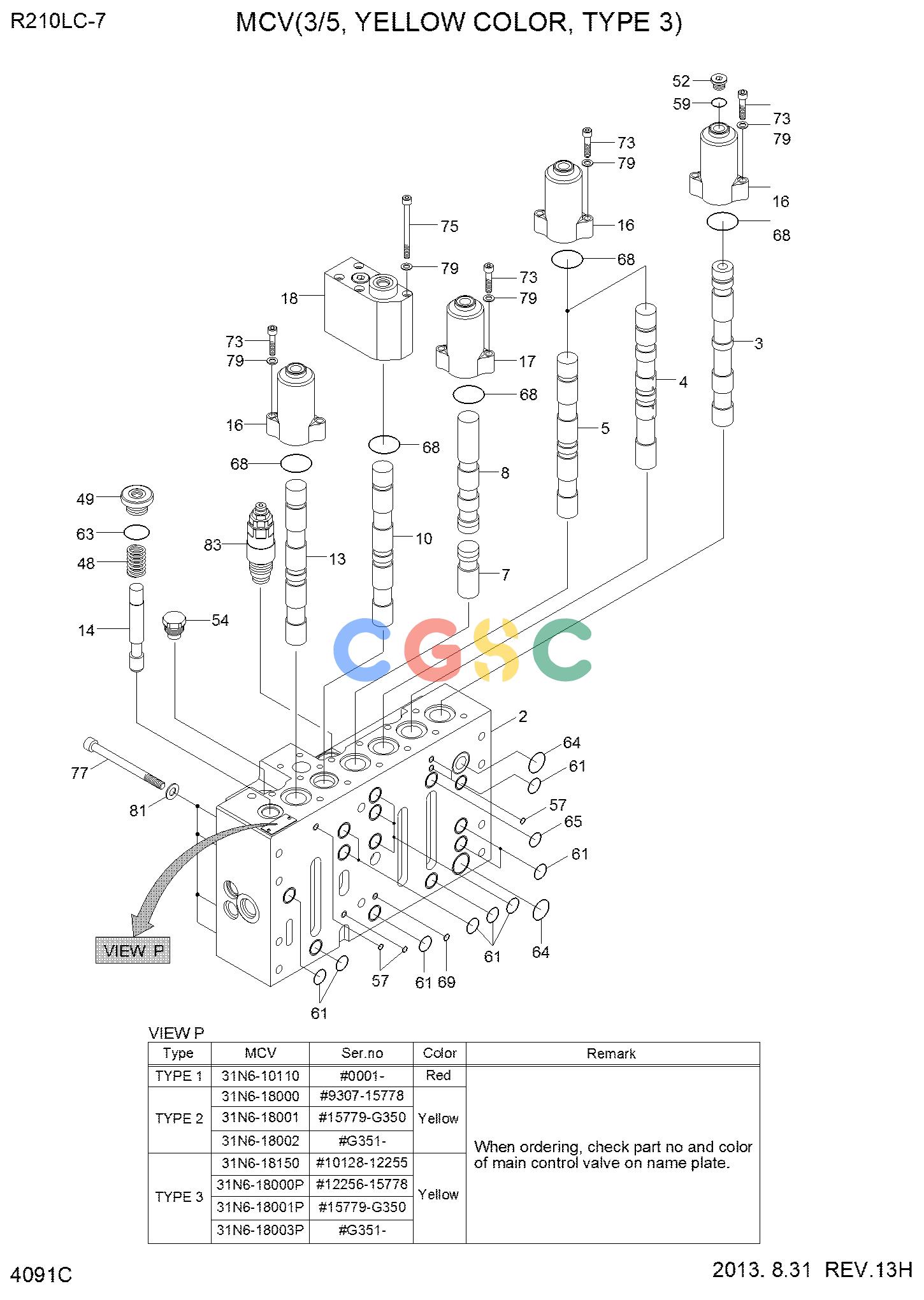

现代零件查询R210/220LC-7H MCV(3/5, YELLOW COLOR, TYPE 3)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
985 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
MAIN CONTROL VALVE
|
|
| 2. |
XKCG-00002
|
[1] |
HOUSING
|
|
| 3. |
XKCG-00003
|
[1] |
SPOOL ASSY-TR STRAIGHT
|
|
| 4. |
XKCG-00004
|
[1] |
SPOOL ASSY-TRAVEL
|
|
| 5. |
XKCG-00005
|
[1] |
SPOOL ASSY-SWING
|
|
| 7. |
XKCG-00007
|
[1] |
SPOOL ASSY-SWING PRI
|
|
| 7. |
XKCG-00424
|
[1] |
SPOOL ASSY-SWING PRI
|
|
| 8. |
XKCG-00008
|
[1] |
SPOOL ASSY-BOOM 2
|
|
| 8. |
XKCG-00303
|
[1] |
SPOOL ASSY-BOOM 2
|
|
| 8. |
XKCG-00425
|
[1] |
SPOOL ASSY-BOOM 2
|
|
| 10. |
XKCG-00010
|
[1] |
SPOOL ASSY-ARM 1
|
|
| 10. |
XKCG-00335
|
[1] |
SPOOL ASSY-ARM 1
|
|
| 13. |
XKCG-00013
|
[1] |
SPOOL ASSY-OPTION
|
|
| 14. |
XKCG-00014
|
[1] |
BC SPOOL
|
|
| 16. |
XKCG-00016
|
[4] |
COVER B1-PILOT
|
|
| 16. |
XKCG-00016
|
[5] |
COVER B1-PILOT
|
|
| 17. |
XKCG-00017
|
[1] |
COVER B2-PILOT
|
|
| N18. |
XKCG-00018
|
[1] |
BLOCK-HOLDING
|
|
| N18. |
XKCG-00084
|
[1] |
BLOCK-HOLDING
|
|
| N18. |
XKCG-00426
|
[1] |
BLOCK-HOLDING
|
|
| 48. |
XKCG-00048
|
[1] |
SPRING-BC SPOOL
|
|
| 49. |
XKCG-00049
|
[1] |
PLUG-BC SPOOL
|
|
| 52. |
XKCG-00052
|
[1] |
PLUG
|
|
| 54. |
XKCG-00054
|
[1] |
PLUG
|
|
| 57. |
XKCG-00057
|
[4] |
O-RING
|
|
| 59. |
XKCG-00059
|
[1] |
O-RING
|
|
| 61. |
XKCG-00061
|
[12] |
O-RING
|
|
| 63. |
XKCG-00063
|
[1] |
O-RING
|
|
| 64. |
XKCG-00064
|
[2] |
O-RING
|
|
| 65. |
XKCG-00065
|
[1] |
O-RING
|
|
| 68. |
XKCG-00068
|
[6] |
O-RING
|
|
| 69. |
XKCG-00069
|
[1] |
O-RING
|
|
| 73. |
XKCG-00073
|
[10] |
BOLT-SOCKET
|
|
| 75. |
XKCG-00075
|
[5] |
BOLT-SOCKET
|
|
| 77. |
XKCG-00077
|
[4] |
BOLT-SOCKET
|
|
| 79. |
XKCG-00079
|
[14] |
WASHER
|
|
| 81. |
XKCG-00081
|
[4] |
WASHER
|
|
| 83. |
XKCG-00083
|
[1] |
RELIEF VALVE-OVERLOAD
|
|
