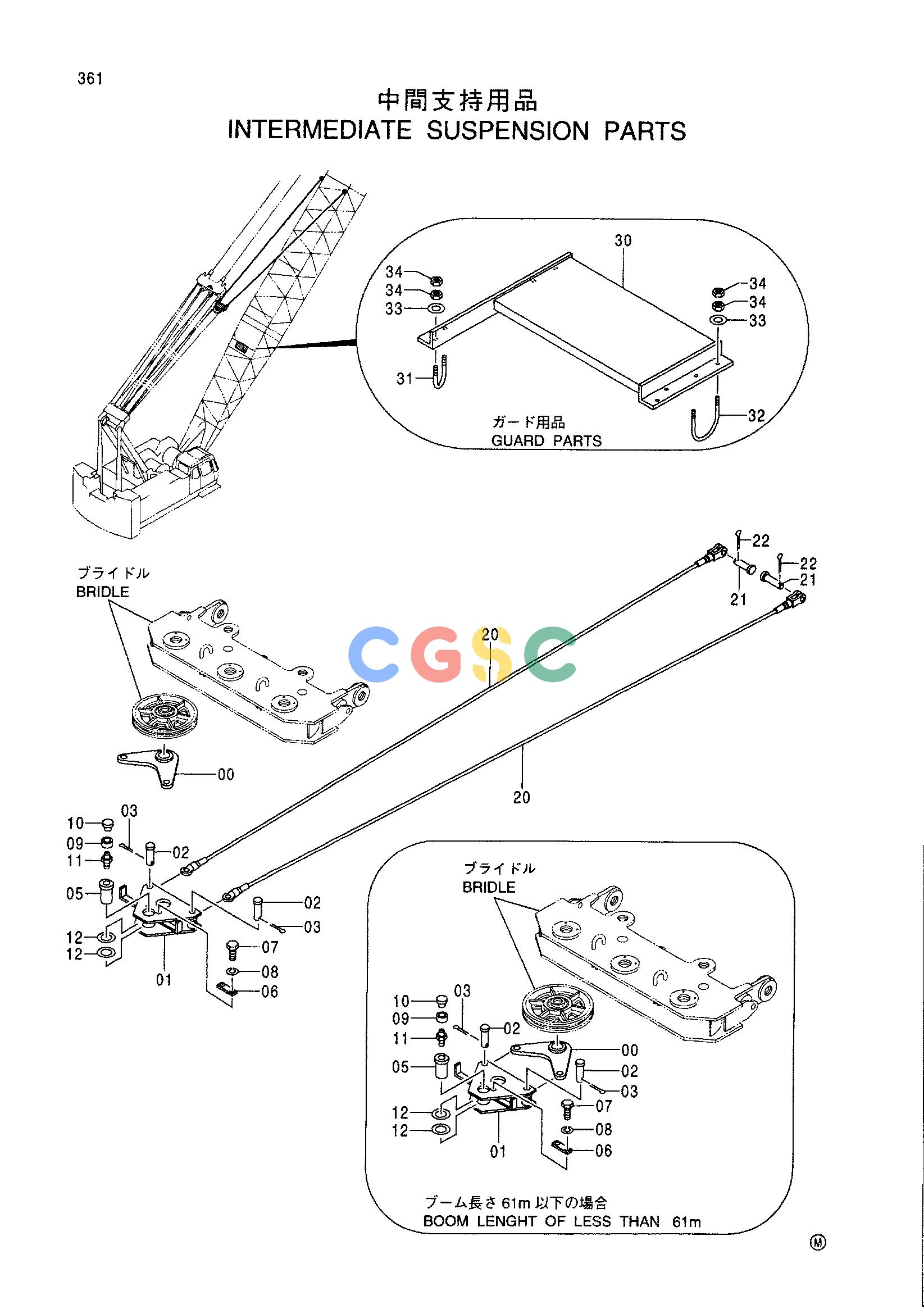

日立零件查询（CX1000）INTERMEDIATE SUSPENSION PARTS Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
815 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 8043512 | [1] | LINK | |
| 01. | 7020389 | [1] | HANGER | |
| 02. | 4090001 | [2] | PIN | |
| 03. | A768063 | [2] | PIN;SPLIT | |
| 05. | 4231997 | [1] | PIN | |
| 06. | 4135186 | [1] | PLATE | |
| 07. | J901225 | [2] | BOLT | |
| 08. | A590912 | [2] | WASHER;SPRING | |
| 09. | 4130686 | [1] | COLLAR | |
| 10. | J75481 | [1] | FITTING;GREASE | |
| 11. | 4105912 | [1] | CAP | |
| 12. | 442617 | [2] | SPACER | |
| 20. | 8070639 | [2] | ROPE;PENDANT | |
| 21. | 4169879 | [2] | PIN | |
| 22. | A768056 | [2] | PIN;SPLIT | |
| 30. | 8071221 | [1] | GUARD | |
| 31. | 4397113 | [2] | BOLT;U | |
| 32. | 4227301 | [2] | BOLT;U | |
| 33. | J217083 | [8] | WASHER | |
| 34. | J950010 | [16] | NUT | |
