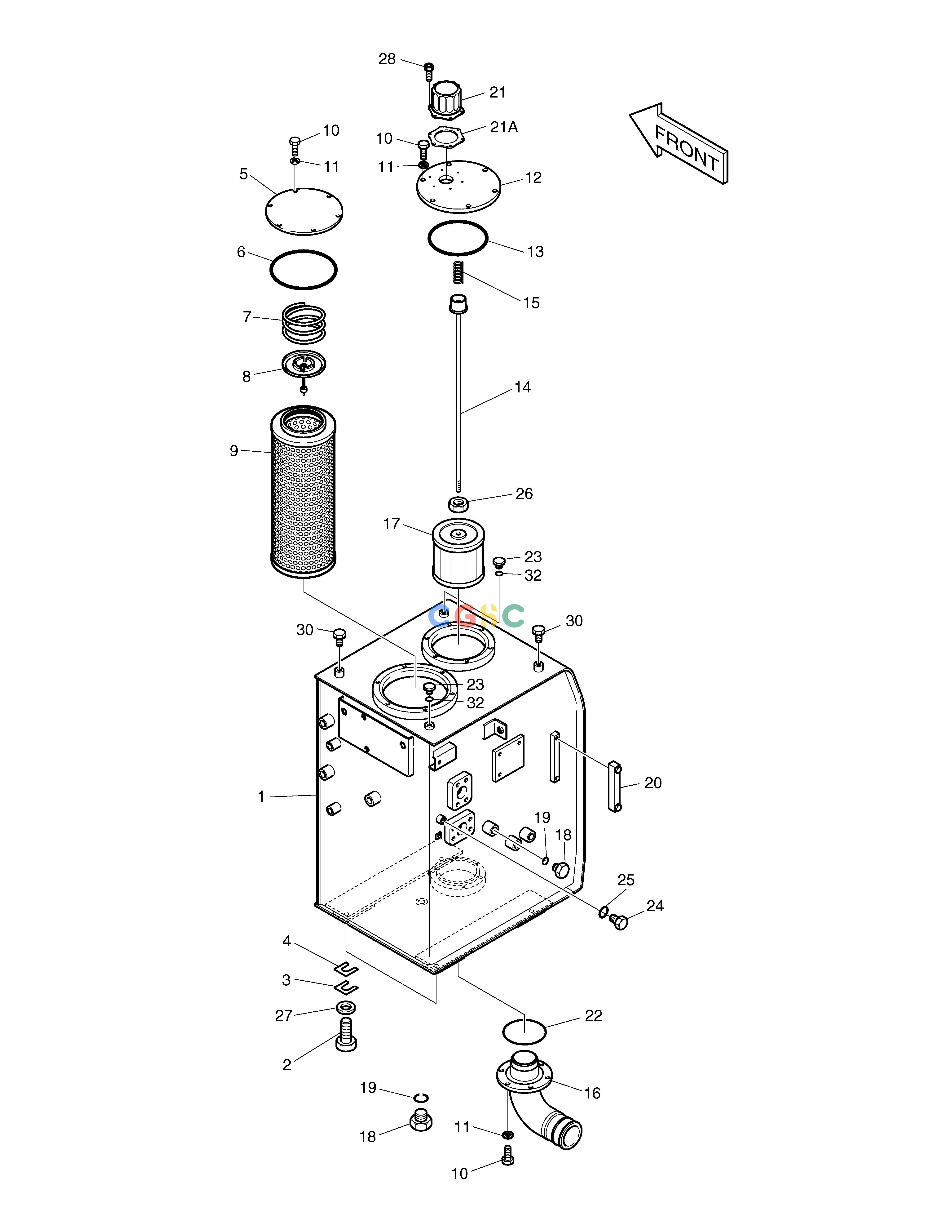

斗山零件查询OIL TANK SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
127 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
470-00157
|
[-] |
OIL TANK ASS'Y
|
|
| 1. |
470-00156A
|
[1] |
TANK;OIL
|
|
| 10. |
S0512053
|
[18] |
BOLT
|
|
| 11. |
S5102603
|
[18] |
. WASHER
|
|
| 12. |
2473-1088B
|
[1] |
COVER
|
|
| 13. |
S8011650
|
[1] |
O-RING
|
|
| 14. |
2136-1434
|
[1] |
ROD
|
|
| 15. |
2129-1008
|
[1] |
SPRING,COMPRESS
|
|
| 16. |
2140-1183
|
[1] |
PIPE;SUCTION
|
|
| 17. |
2474-9016A
|
[1] |
FILTER,SUCTION
|
|
| 18. |
2181-1950D7
|
[2] |
. PLUG
|
|
| 19. |
S8000181
|
[2] |
O-RING
|
|
| 2. |
S0521366
|
[4] |
BOLT
|
|
| 20. |
2119-1007
|
[1] |
GAUGE;LEVEL
|
|
| 21. |
422-00027A
|
[1] |
BREATHER;AIR
|
K1012685A
|
| 21. |
K1012685A
|
[1] |
BREATHER;AIR
|
400811-00087
|
| 21. |
400811-00087
|
[1] |
BREATHER,AIR
|
|
| 21A. |
180-00200
|
[1] |
PACKING
|
|
| 21A. |
K1029257
|
[1] |
ELEMENT;AIR BREATHER
|
|
| 21A. |
400504-00254
|
[1] |
. ELEMENT,AIR BREATHER
|
|
| 21B. |
K9005662
|
[1] |
. GASKET
|
|
| 22. |
S8011200
|
[1] |
O-RING
|
|
| 23. |
2181-1950D1
|
[2] |
PLUG
|
|
| 24. |
2181-2667
|
[1] |
PLUG
|
|
| 25. |
S8180221
|
[1] |
RING;SEAL
|
|
| 26. |
S4012733
|
[1] |
NUT
|
|
| 27. |
2114-1816A
|
[4] |
WASHER
|
|
| 28. |
2120-2166D41
|
[6] |
BOLT
|
|
| 3. |
2114-1813
|
[2] |
SHIM,0.8T
|
|
| 30. |
S0514653
|
[2] |
BOLT M12X1.75X16
|
|
| 32. |
S8000111
|
[2] |
O-RING
|
|
| 4. |
2114-1814
|
[2] |
SHIM,1.6T
|
|
| 5. |
2473-1080A
|
[1] |
COVER
|
|
| 6. |
S8012000
|
[1] |
O-RING
|
|
| 7. |
2129-1393
|
[1] |
SPRING
|
|
| 8. |
2426-1175
|
[1] |
VALVE;BY-PASS
|
410128-00031
|
| 8. |
410128-00031
|
[1] |
VALVE,BY-PASS
|
|
| 9. |
2474-9404A
|
[1] |
ELEMENT;FILTER
|
|
