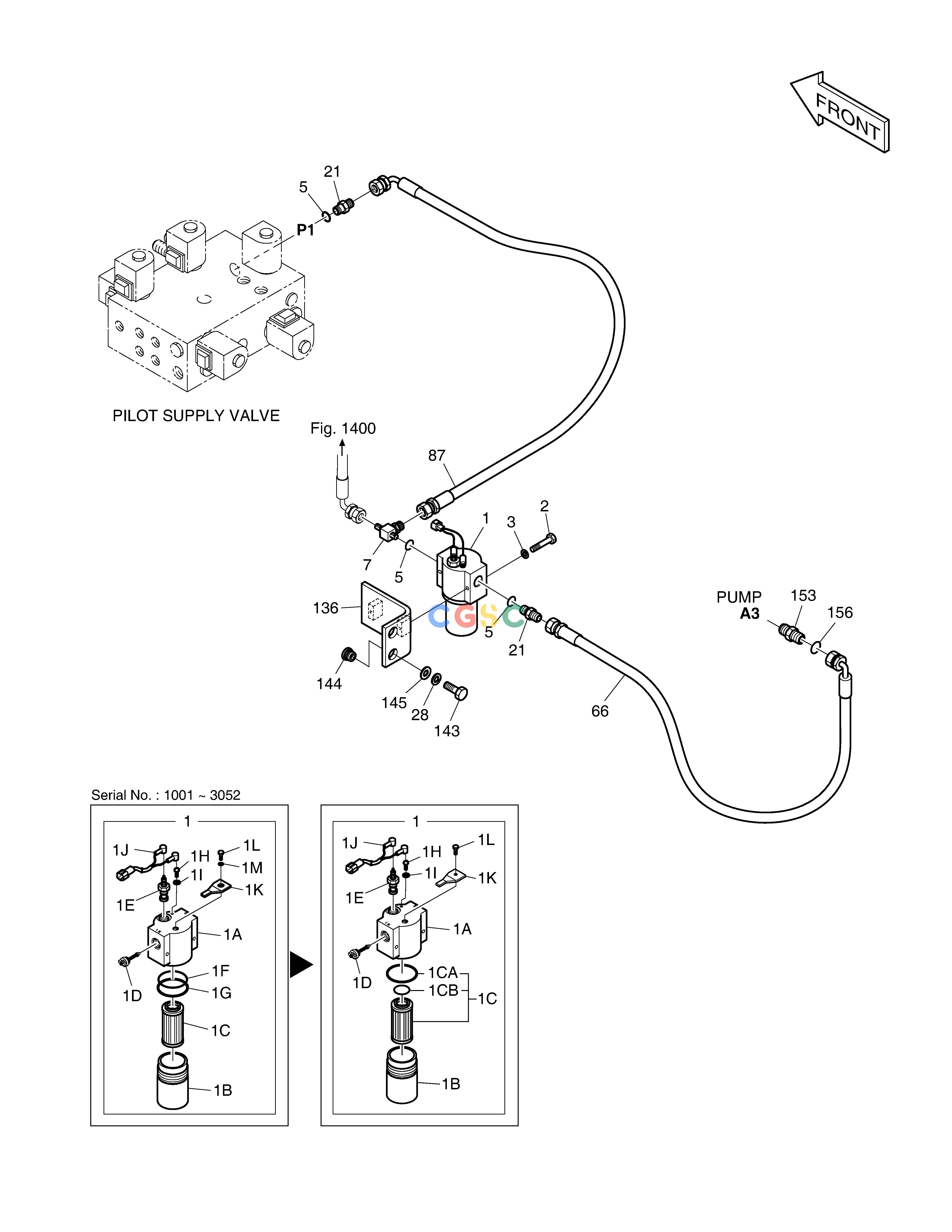

斗山零件查询PILOT PIPING(1) SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
618 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01224
|
[-] |
PILOT PIPING
|
|
| -. |
420212-04712A
|
[-] |
|
|
| -. |
420212-04712B
|
[-] |
|
|
| 1. |
471-00075A
|
[1] |
FILTER;PILOT
|
400407-00006
|
| 1. |
400407-00006
|
[1] |
FILTER,PILOT
|
|
| 136. |
195-02351A
|
[1] |
BRACKET
|
|
| 143. |
S0512453
|
[2] |
BOLT M10X1.5X40
|
|
| 144. |
198-00016
|
[2] |
RUBBER
|
|
| 145. |
2114-1058D10
|
[2] |
WASHER
|
|
| 153. |
2181-1917D13
|
[1] |
ADAPTER
|
|
| 156. |
S8180281
|
[1] |
RING;SEAL
|
|
| 1A. |
NA00509
|
[1] |
. HEAD
|
|
| 1B. |
2472-7003
|
[1] |
CASE
|
|
| 1B. |
110913-00333
|
[1] |
|
|
| 1C. |
2471-1154
|
[1] |
ELEMENT;PILOT FILTER
|
|
| 1C. |
400504-00241
|
[1] |
ELEMENT,FILTER
|
|
| 1CA. |
401002-01472
|
[1] |
. O-RING
|
|
| 1CB. |
401002-01473
|
[1] |
. O-RING
|
|
| 1D. |
2426-1237
|
[1] |
VALVE;BY-PASS
|
|
| 1D. |
410128-00073
|
[1] |
|
|
| 1E. |
2471-1155A
|
[1] |
INDICATOR
|
|
| 1E. |
800217-00115
|
[1] |
|
|
| 1F. |
Y-3738-04
|
[1] |
O-RING
|
|
| 1G. |
Y-3738-05
|
[1] |
RING;BACK UP
|
|
| 1H. |
NA01040
|
[1] |
VIS
|
|
| 1I. |
NA01315
|
[1] |
RONDELLE
|
|
| 1J. |
530-00236
|
[1] |
HARNESS;PILOT FILTER
|
|
| 1J. |
310207-03984
|
[1] |
|
|
| 1K. |
2197-1661
|
[1] |
BRACKET
|
|
| 1L. |
S0508653
|
[1] |
BOLT
|
|
| 1M. |
S5102503
|
[1] |
. WASHER
|
|
| 2. |
S0553753
|
[2] |
BOLT
|
|
| 21. |
2181-1126D6
|
[2] |
ADAPTER
|
|
| 28. |
S5102603
|
[2] |
. WASHER
|
|
| 3. |
S5102303
|
[2] |
. WASHER
|
|
| 5. |
S8000181
|
[3] |
O-RING
|
|
| 66. |
2184-1036D100
|
[1] |
HOSE PF1/2-800L
|
|
| 7. |
2181-1951D8
|
[1] |
TEE
|
|
| 87. |
2184-1036D71
|
[1] |
HOSE PF1/2-2100L
|
|
