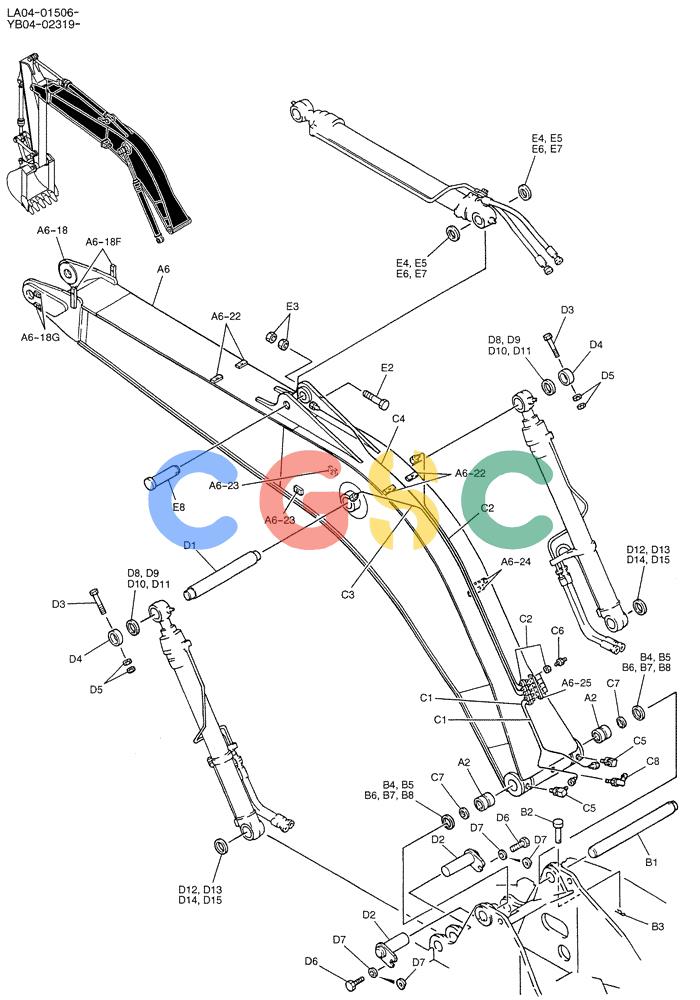

| . . | YB02B00051F3 | [1] | BOOM | KOBASSY, HOE |
| A6. | NSS | [1] | NOT SERVICED SEPARATELY | CONBOOM, HOE |
| A6-18. | YB02B01052P1 | [1] | BRACKET | |
| A6-18F. | 2416T13274D2 | [2] | BLOCK | KOBTAPPED |
| A6-18G. | 2416T12922 | [2] | BLOCK | KOBTAPPED |
| A6-22. | 2416T21120D2 | [4] | BLOCK | KOBTAPPED |
| A6-23. | 2416T9878 | [2] | BLOCK,M10 Thd Hole - 16mm Thk x 32mm W x 60mm L | KOBTAPPED |
| A6-24. | YB02B01016P1 | [2] | BLOCK, TAPPED | |
| A6-25. | 2418T22409 | [1] | PLATE | KOB |
| . . | YB02B00002F1 | [1] | BOOM INSTAL | |
| B1. | YB02B01001P1 | [1] | PIN | KOB |
| B2. | YN02B01233P1 | [1] | PIN | KOB |
| B3. | YN02B01234P1 | [1] | SPRING | KOB |
| B4. | B16T0442D13 | [1] | SHIM,160mm OD x 92mm ID x 1.2mm Thk | KOB(1.2) |
| B5. | B16T0442D53 | [1] | SHIM,92mm ID x 160mm OD x 0.5mm Thk | KOB(0.5) |
| B6. | B16T0442D40 | [1] | SHIM,92mm ID x 160mm OD x 0.9mm Thk | KOB(0.9) |
| B7. | B16T0442D14 | [1] | SHIM,160mm OD x 92mm ID x 1.6mm Thk | KOB(1.6) |
| B8. | B16T0442D15 | [1] | SHIM,160mm OD x 92mm ID x 2.3mm Thk | KOB(2.3) |
| . . | YB02B00001F1 | [1] | BOOM GROUP | |
| C1. | 2444R1117D082 | [2] | FLEXIBLE HOSE,6.40mm ID x 820mm L | KOB |
| C2. | 2444R1117D220 | [1] | HOSE,6.40mm ID x 2200mm L | KOB |
| C3. | 2444R1117D230 | [1] | HOSE,6.40mm ID x 2300mm L | KOB |
| C4. | 2444R1117D284 | [1] | FLEXIBLE HOSE,6.40mm ID x 2840mm L | KOB |
| C5. | ZH32Z04000 | [2] | ELBOW | KOB |
| C6. | ZG91S02000 | [5] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOBGREASE |
| C7. | 2445R220D6 | [2] | SEAL,90mm ID x 105mm OD x 6mm Thk | KOBDUST |
| C8. | ZG91V02000 | [1] | LUBE NIPPLE | KOBGREASE |
| . . | YB02B00006F1 | [1] | CYLINDER INSTAL | |
| D1. | YB02B01005P1 | [1] | PIN | KOB |
| D2. | YB02B01006P1 | [2] | PIN | KOB |
| D3. | HS18C16150G2 | [2] | SCREW | KOBCAP |
| D4. | YN02B01108P1 | [2] | BOSS | KOB |
| D5. | ZN18C16013 | [4] | NUT | KOB |
| D6. | ZS18C16030 | [2] | SCREW,Hex, M16 x 30mm | KOBCAP |
| D7. | YB02B01010P1 | [2] | PLATE | KOB, Serial Range: LA04-01506-LA04-01530 Superseded by part number: YB02B01060P1 |
| D7. | YB02B01060P1 | [2] | PLATE | KOBPLATE, Start Serial: LA04-01531 |
| D8. | YN02B01109D1 | [1] | SHIM,87mm ID x 120mm OD x 0.5mm Thk | KOB(0.5) |
| D9. | YN02B01109D2 | [1] | SHIM,87mm ID x 120mm OD x 0.9mm Thk | KOB(0.9) |
| D10. | YN02B01109D3 | [1] | SHIM,87mm ID x 120mm OD x 1.2mm Thk | KOB(1.2) |
| D11. | YN02B01109D4 | [1] | SHIM,87mm ID x 120mm OD x 1.6mm Thk | KOB(1.6) |
| D12. | B16T0442D59 | [1] | SHIM,160mm OD x 87mm ID x 0.5mm Thk | KOB(0.5) |
| D13. | B16T0442D46 | [1] | SHIM,160mm OD x 87mm ID x 0.9mm Thk | KOB(0.9) |
| D14. | B16T0442D48 | [1] | SHIM,160mm OD x 87mm ID x 1.2mm Thk | KOB(1.2) |
| D15. | B16T0442D37 | [1] | SHIM,155mm OD x 87mm ID x 1.6mm Thk | KOB(1.6) |
| . . | YM02B00004F2 | [1] | CYLINDER INSTAL | |
| E2. | HS18C16140G2 | [1] | SCREW,M16 x 140mm, Cl 10.9 | KOBCAP |
| E4. | B16T0442D52 | [1] | SHIM,82mm ID x 100mm OD x 0.5mm Thk | KOB(0.5) |
| E5. | B16T0442D39 | [1] | SHIM,82mm ID x 150mm OD x 0.9mm Thk | KOB(0.9) |
| E6. | B16T0442D3 | [1] | SHIM,150mm OD x 82mm ID x 1.2mm Thk | KOB(1.2) |
| E7. | B16T0442D4 | [1] | SHIM,0.9mm Thk | KOB(1.6) |
| E8. | YM12B01014P2 | [1] | PIN | KOB Superseded by part number: YB12B01073P1 |
