斗山零件查询PILOT PIPING(8) SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
472 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01224
|
[-] |

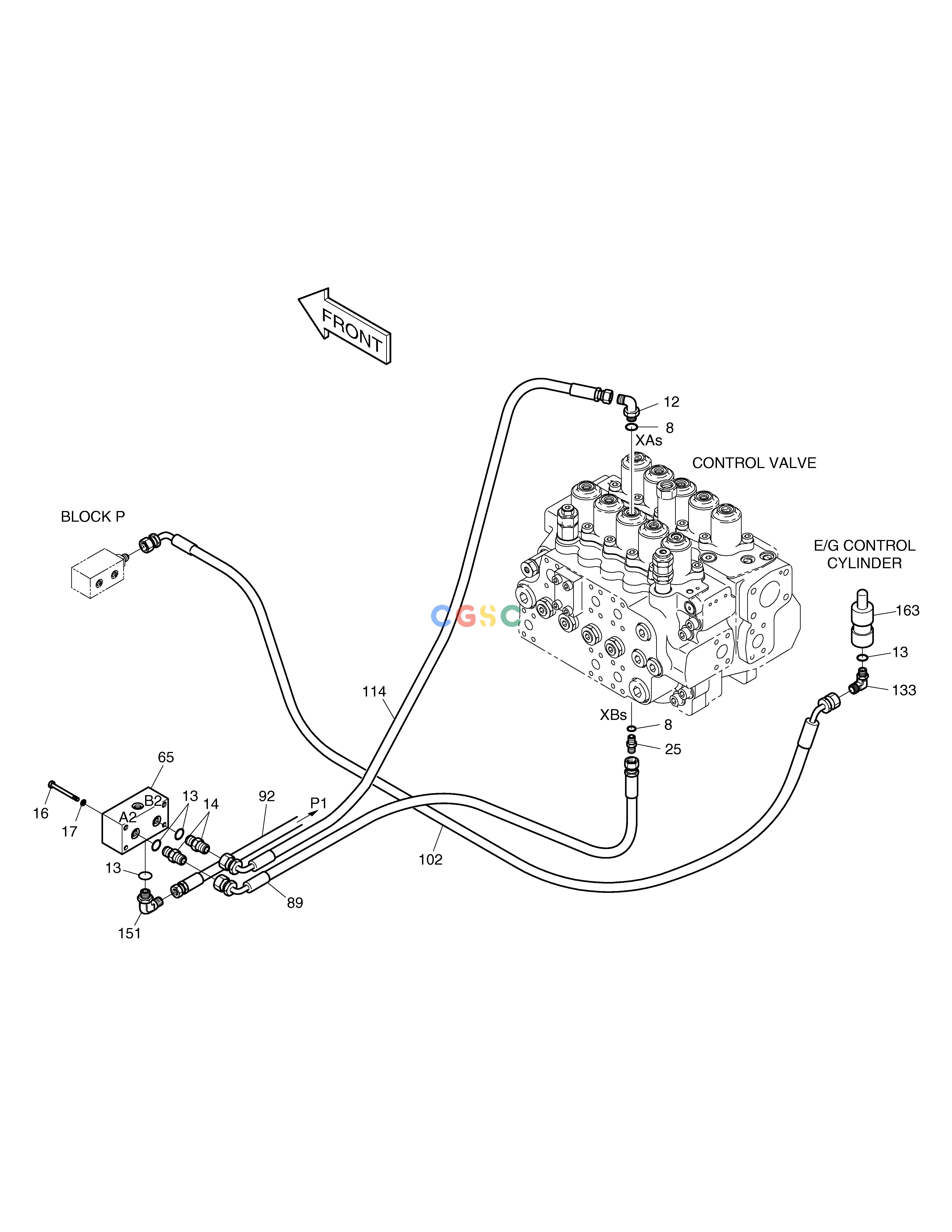

PILOT PIPING
|
|
| -. |
420212-04712A
|
[-] |
|
|
| -. |
420212-04712B
|
[-] |
|
|
| 102. |
2184-1062D29
|
[1] |
HOSE PF1/4-2600L
|
|
| 114. |
2184-1046D221
|
[1] |
HOSE PF1/4-2050L
|
|
| 12. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 13. |
S8000111
|
[4] |
O-RING
|
|
| 133. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 14. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 151. |
2181-1702D3
|
[1] |
ELBOW
|
|
| 16. |
S0556453
|
[2] |
BOLT
|
|
| 163. |
2440-9149
|
[1] |
CYLINDER
|
|
| 17. |
S5102503
|
[2] |
. WASHER
|
|
| 25. |
2181-1126D36
|
[1] |
ADAPTER
|
|
| 65. |
2420-9158A
|
[1] |
VALVE;SHUTTLE
|
|
| 8. |
S8000141
|
[2] |
O-RING
|
|
| 89. |
2184-1046D73
|
[1] |
HOSE PF1/4-1900L
|
|
| 92. |
2184-1045D193
|
[1] |
HOSE PF3/8-2700L
|
|
