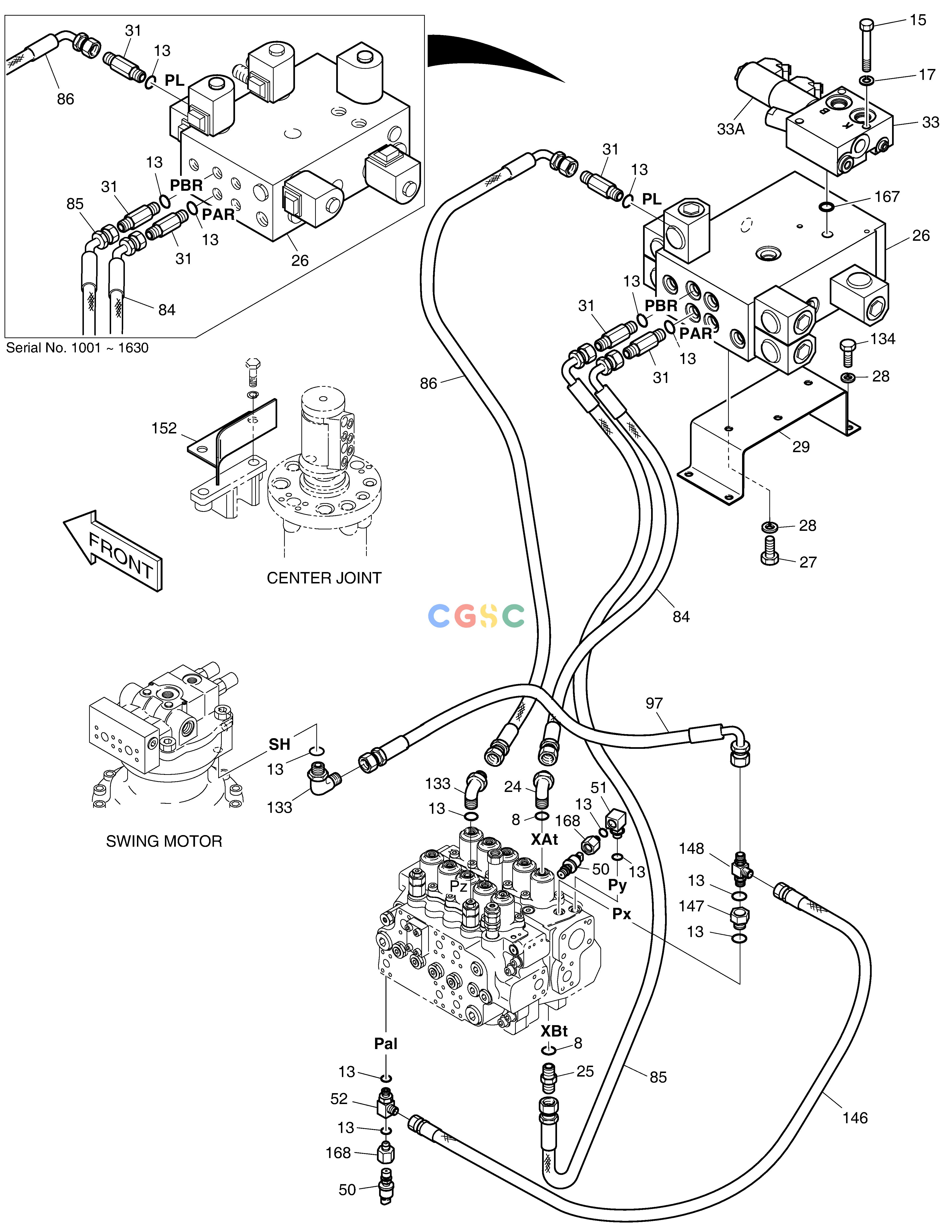

斗山零件查询PILOT PIPING(9) SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
851 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-04712B
|
[-] |
|
|
| -. |
400-01224
|
[-] |
PILOT PIPING
|
|
| -. |
420212-04712
|
[-] |
|
|
| -. |
420212-04712A
|
[-] |
|
|
| 13. |
S8000111
|
[11] |
O-RING
|
|
| 13. |
S8000111
|
[13] |
O-RING
|
|
| 133. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 134. |
S0512053
|
[4] |
BOLT
|
|
| 146. |
2184-1045D89
|
[1] |
HOSE PF1/4-780L
|
|
| 147. |
2181-2337D1
|
[1] |
REDUCER
|
|
| 148. |
2181-1951D1
|
[1] |
TEE
|
|
| 15. |
S0556466
|
[2] |
BOLT
|
|
| 152. |
195-01991A
|
[1] |
BRACKET
|
|
| 167. |
K1041294
|
[1] |
O-RING
|
|
| 168. |
430223-00011
|
[2] |
REDUCER
|
430223-00011A
|
| 168. |
430223-00011A
|
[2] |
|
|
| 17. |
S5102503
|
[2] |
. WASHER
|
|
| 24. |
2181-1702D10
|
[1] |
ELBOW
|
|
| 25. |
2181-1126D36
|
[1] |
ADAPTER
|
|
| 26. |
2420-9324G
|
[1] |
VALVE;PILOT & T/M SUPPLY
|
|
| 26. |
K1025038A
|
[1] |
VALVE;PILOT & T/M SUPPLY
|
|
| 27. |
S0511853
|
[3] |
BOLT
|
|
| 28. |
S5102603
|
[7] |
. WASHER
|
|
| 29. |
2197-2562
|
[1] |
BRACKET
|
|
| 31. |
2181-1126D34
|
[3] |
ADAPTER
|
|
| 33. |
421-00021A
|
[1] |
VALVE;T/M CONTROL
|
|
| 33A. |
300715-00110
|
[1] |
|
|
| 50. |
2549-9112
|
[2] |
SWITCH;PRESSURE
|
|
| 51. |
2181-2295D4
|
[1] |
ELBOW
|
|
| 52. |
2181-2636
|
[1] |
TEE
|
|
| 8. |
S8000141
|
[2] |
O-RING
|
|
| 84. |
2184-1060D118
|
[1] |
HOSE PF1/4-2050L
|
|
| 85. |
2184-1060D2
|
[1] |
HOSE PF1/4-1840L
|
|
| 86. |
2184-1046D188
|
[1] |
HOSE PF1/4-2400L
|
|
| 97. |
2184-1046D83
|
[1] |
HOSE PF1/4-830L
|
|
