纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (07-009) - PUMP ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
575 次

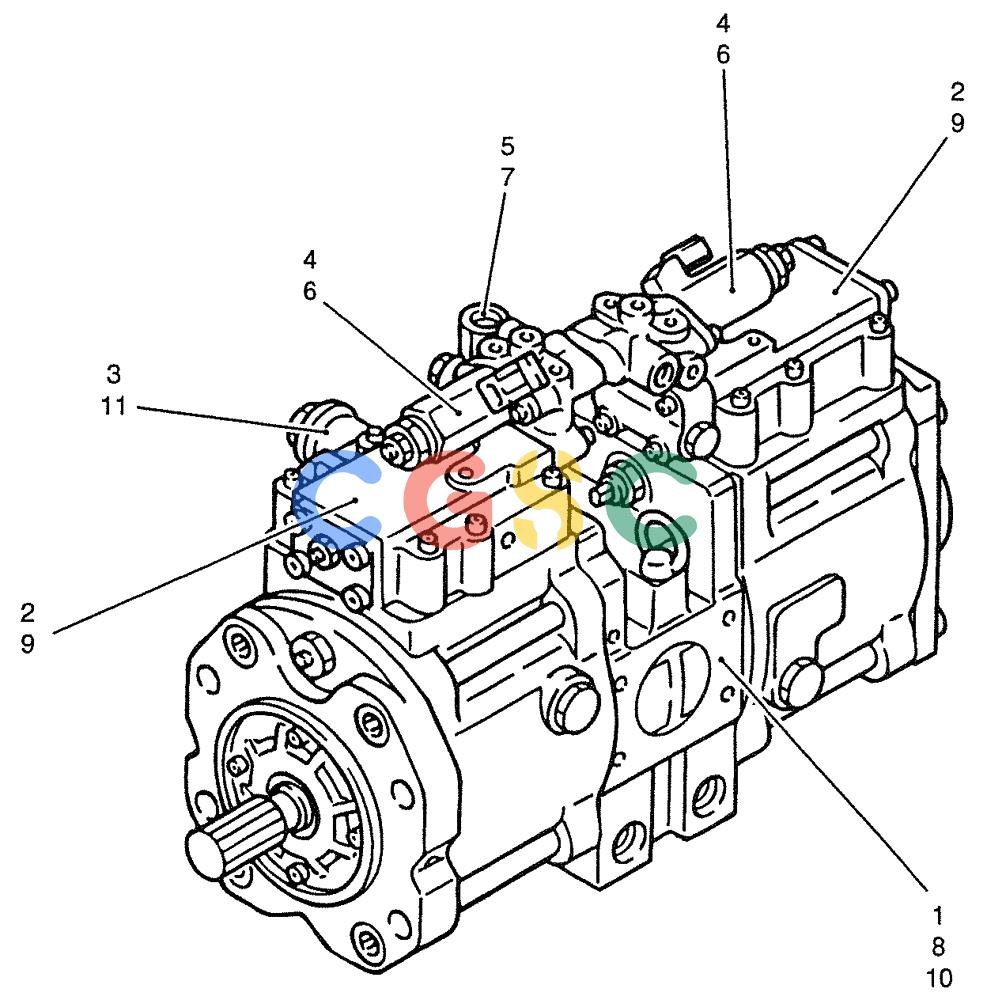

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB10V00001F1 | [1] | HYDRAULIC PUMP,80 CC | KOBASSY |
| . . | YB10V00001F6 | [1] | PUMP | KOBPUMP ASSY |
| 1. | YB10V00004F1 | [1] | PUMP ASSY, SEE FIG. 07-011, FOR F1 TO F3 ONLY (NOT IN SERVICE) | |
| 2. | YB10V01001F1 | [2] | VOLTAGE REGULATOR | KOBASSY, SEE FIG. 07-012, FOR F1 TO F3 ONLY |
| 3. | YB46W00001F1 | [1] | CASE | KOBASSY, GEAR, SEE FIG. 07-023, FOR F1 TO F5 ONLY Superseded by part number: YB46W00001F2 |
| 4. | YN35V00018F2 | [2] | SOLENOID VALVE | KOBASSY, FOR F1 ONLY |
| 5. | YX10V00004F1 | [1] | PUMP | KOBASSY, GEAR, SEE FIG. 07-046, FOR F1 & F2 ONLY Superseded by part number: 77279971, YX10V00004F2 |
| 6. | YB35V00003F1 | [2] | VALVE | KOBASSY,SOLENOID, SEE FIG. 07-020, FOR F2 TO F6 ONLY |
| 7. | YX10V00004F2 | [1] | PUMP | KOBASSY, GEAR, SEE FIG. 07-046, FOR F3 & F6 ONLY |
| 8. | YB10V00004F2 | [1] | PUMP ASSY, SEE FIG. 07-011, FOR F4 ONLY (NOT IN SERVICE) | |
| 10. | YB10V00004F3 | [1] | PUMP ASSY, SEE FIG. 07-011, FOR F5 & F6 ONLY (NOT IN SERVICE) | |
| 11. | YB46W00001F2 | [1] | GEAR | KOBCASE ASSY, SEE FIG.07-023, FOR F6 ONLY |
