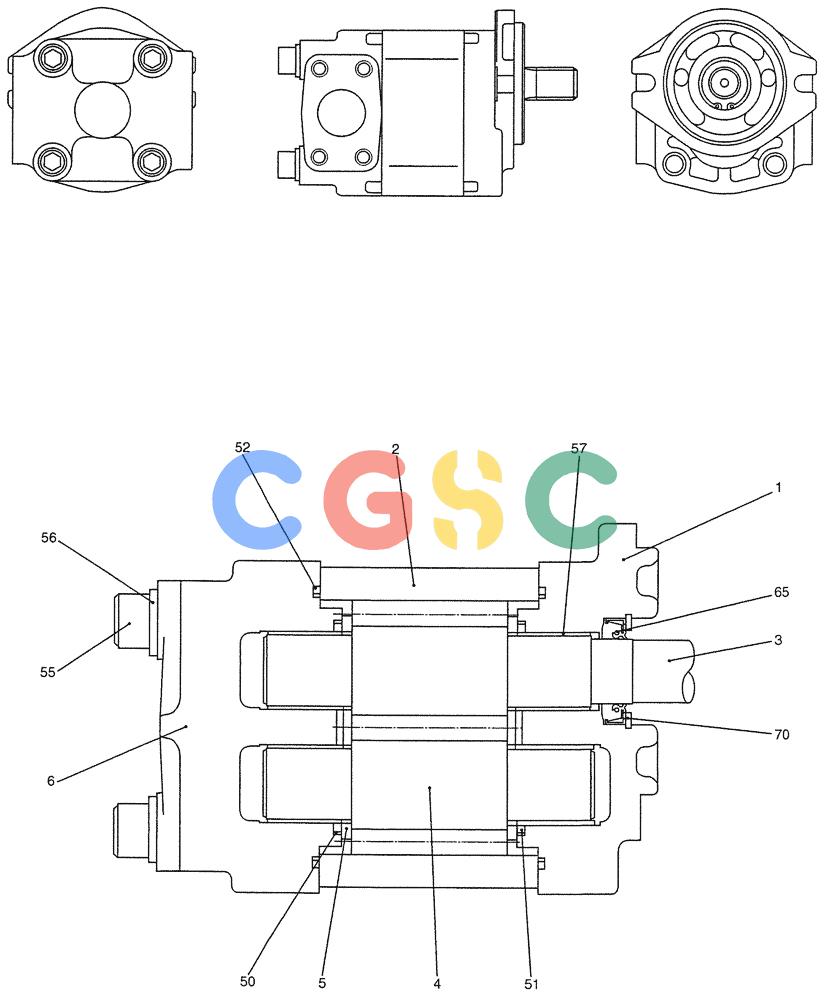

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | YB10V00003F1 | [1] | PUMP | KOBPUMP ASSY,GEAR |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONCOVER |
| 55. | YN10V00031S055 | [4] | SCREW | KOBCAPSCREW |
| 56. | YN10V00019S056 | [4] | WASHER | KOB |
| . . | YN10V00019R100 | [1] | REPAIR KIT | KOBCONSISTS OF Ref. 50(2), 51(2), 52(2), 65(1), 70(1) |
