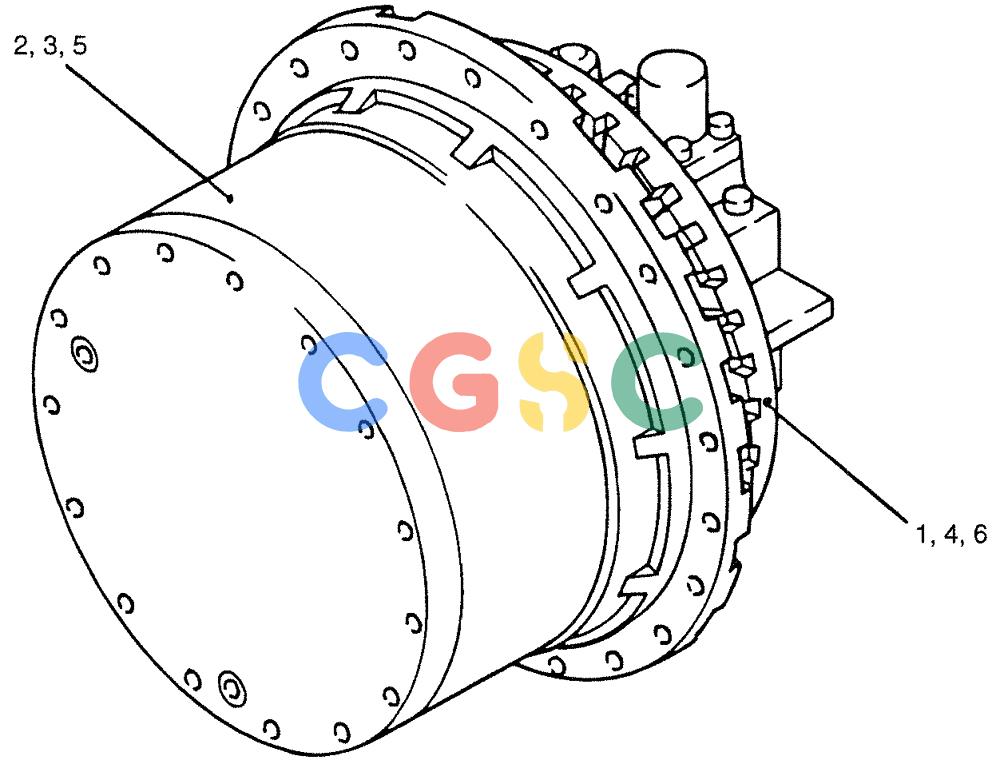

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (07-024) - MOTOR ASSY (PROPELLING) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
154 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN15V00011F2 | [1] | MOTOR | KOBASSY (PROPELLING) Superseded by part number: YN15V00011F4 |
| . . | YN15V00011F4 | [1] | HYDRAULIC MOTOR | KOBASSY (PROPELLING) |
| 1. | YN15V00017F1 | [1] | MOTOR | KOBASSY (PROPELLING), SEE FIG. 07-025, FOR F1 & F2 ONLY Superseded by part number: YN15V00017F3 |
| 3. | YN53D00008F2 | [1] | REDUCER | KOBASSY (PROPELLING), SEE FIG. 07-037, FOR F2 & F4 ONLY Superseded by part number: YN53D00008F3 |
| 4. | YN15V00017F2 | [1] | MOTOR ASSY (PROPELLING), SEE FIG. 07-025, FOR F3 ONLY | |
| 5. | YN53D00008F3 | [1] | HYDRAULIC MOTOR | KOBREDUCTION ASSY (PROPELLING), SEE FIG. 07-037, FOR F3 ONLY |
| 6. | YN15V00017F3 | [1] | MOTOR | KOBASSY (PROPELLING), SEE FIG. 07-025, FOR F4 ONLY |
