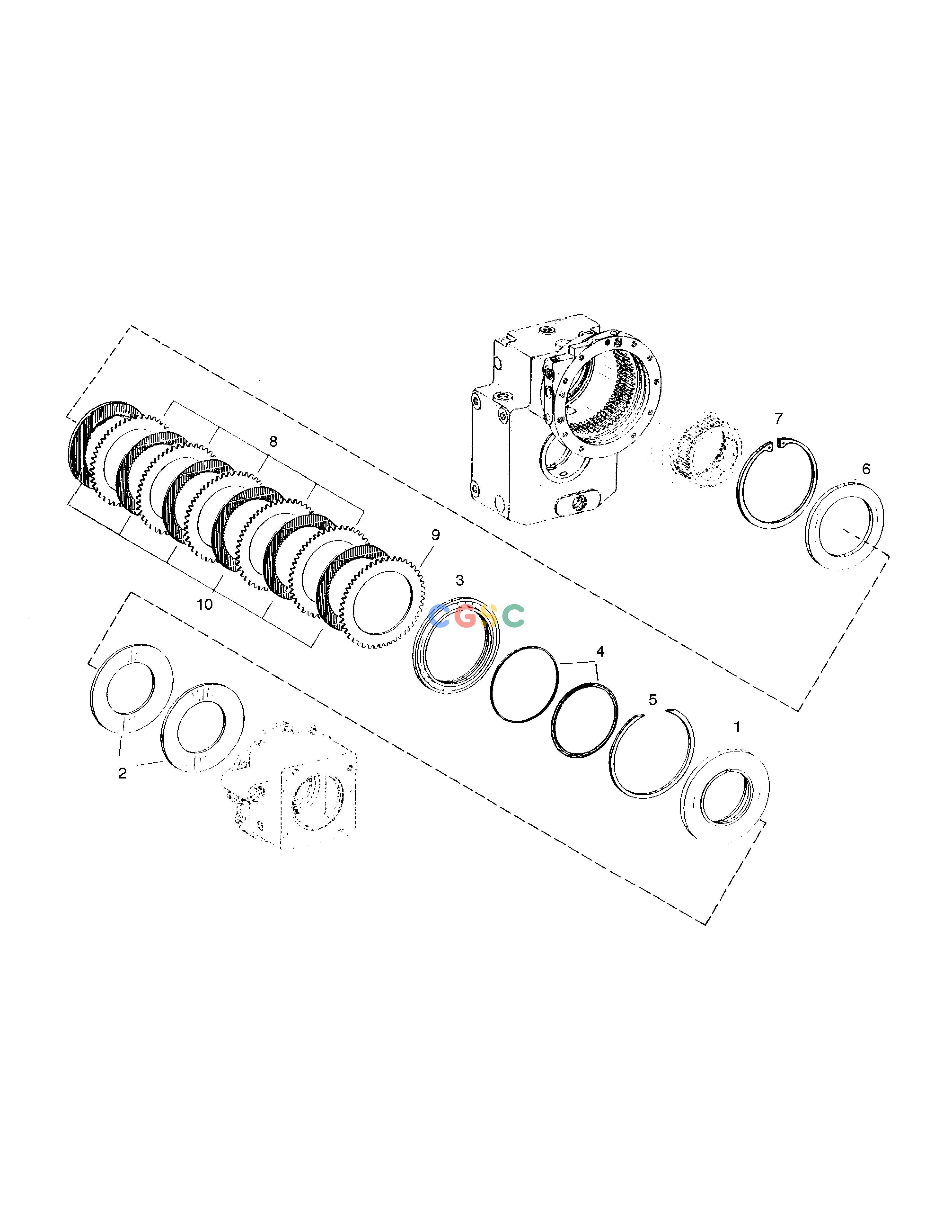

斗山零件查询1st GEAR CLUTCH-TRANSMISSION SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
646 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
4143 351 022
|
[1] |
PISTON
|
|
| 10. |
4143 251 002
|
[6] |
DISC;I.CLUTCH
|
|
| 2. |
0750 106 027
|
[1] |
SPRING;CUP
|
|
| 3. |
4143 351 023
|
[1] |
WASHER
|
|
| 4. |
0501 208 170
|
[1] |
GASKET
|
|
| 5. |
0630 513 060
|
[1] |
RING;SNAP
|
|
| 6. |
4143 351 024
|
[1] |
SHIM;END
|
|
| 7. |
0630 502 056
|
[1] |
RING;RETAINING
|
|
| 8. |
4143 351 025
|
[5] |
DISC;O.CLUTCH
|
|
| 9. |
4143 351 011
|
[1] |
DISC;O.CLUTCH
|
|
| 9. |
4143 351 020
|
[1] |
DISC;O.CLUTCH OPTIONAL B=3.3
|
|
| 9. |
4143 351 025
|
[1] |
DISC;O.CLUTCH
|
|
| 9. |
4143 351 029
|
[1] |
DISC;O.CLUTCH OPTIONAL B=2.8
|
|
