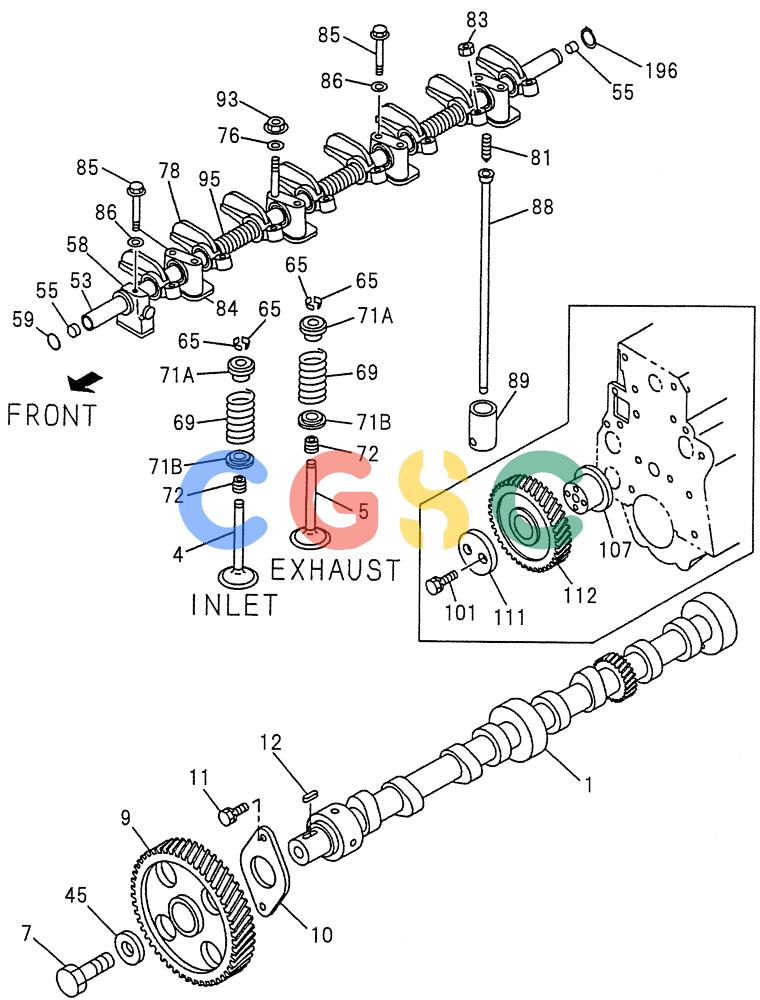

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (08-006) - CAMSHAFT AND VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
270 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 4. | VI1125510501 | [4] | VALVE | KOBVALVE; INL |
| 5. | VI1125520251 | [4] | VALVE | KOBVALVE; EXH, (TCY01 ONLY) Superseded by part number: VI8970287040 |
| 7. | VI5090002360 | [1] | BOLT | KOBBOLT; CM/SHF GEAR (M14X39) |
| 9. | VI1125220162 | [1] | GEAR; CM/SHF (Z=50) | |
| 10. | VI9116810150 | [1] | THRUST PLATE | KOBPLATE; THRUST |
| 11. | VI0500408250 | [2] | BOLT | KOBBOLT; THRUST PLATE TO C/BL (M8X25 W/LK WASHER) Superseded by part number: VI0505408250 |
| 12. | VI9080107200 | [1] | KEY | KOBKEY; CAM GEAR SET |
| 45. | VI9098518503 | [1] | WASHER | KOBWASHER; GEAR CAM |
| 53. | VI8941295510 | [1] | SHAFT | KOBSHAFT; ROCKER ARM |
| 55. | VI9126260050 | [2] | PLUG | KOBPLUG; ROCKER SHAFT,END |
| 58. | VI5126280120 | [1] | BRACKET | KOBBRACKET; ROCKER SHAFT,FRT |
| 59. | VI5096230600 | [1] | O-RING | KOBGASKET; ROCKER SHAFT |
| 65. | VI5125650060 | [16] | COLLAR | KOBCOLLAR; SPLIT |
| 69. | VI5125610091 | [8] | SPRING; VLV,OUTER | |
| 69. | VI1125610991 | [8] | SPRING | KOBSPRING; VLV,OUTER |
| 71A. | VI8941145790 | [8] | SEAT | KOBSEAT; SPR UPPER |
| 71B. | VI1125630351 | [8] | SEAT | KOBSEAT; SPR LOWER |
| 71B. | VI5125630010 | [8] | SEAT | KOBSEAT; SPR LOWER |
| 72. | VI1125690150 | [8] | SEAL | KOBSEAL; VLV GUIDE Superseded by part number: VI8971201670 |
| 72. | VI8971201670 | [8] | SEAL | KOBSEAL; VLV GUIDE |
| 76. | VI9098514300 | [3] | WASHER | KOBWASHER; PL,BRKT |
| 78. | VI5126110310 | [8] | ROCKER ARM | KOBARM; ROCKER |
| 81. | VI9126160420 | [8] | ADJUSTMENT SCREW | KOBSCREW; ADJ, ROCKER ARM |
| 83. | VI9091115080 | [8] | NUT | KOBNUT; ADJ SCREW,LK Superseded by part number: VI0911115080 |
| 84. | VI9126281050 | [4] | BRACKET | KOBBRACKET; ROCKER SHAFT, INTER |
| 85. | VI1090005670 | [6] | BOLT | KOBBOLT; BRKT (M8X65) |
| 88. | VI1125750360 | [8] | ROD | KOBROD; PUSH |
| 89. | VI5125710033 | [8] | TAPPET | KOBTAPPET; VALVE |
| 93. | VI1094001160 | [3] | NUT | KOBNUT; BRKT |
| 95. | VI1095803350 | [3] | SPRING | KOBSPRING; ROCKER SHAFT |
| 101. | VI5090300381 | [2] | BOLT | KOBBOLT; THRUST COLLAR |
| 107. | VI9125310300 | [1] | SHAFT | KOBSHAFT; IDLE GEAR |
| 111. | VI5125350011 | [1] | COLLAR | KOBCOLLAR; THRUST, IDLER GEAR |
| 112. | VI8941339373 | [1] | GEAR | KOBGEAR; IDLER (Z=5D |
| 196. | VI9091800190 | [1] | SNAP RING | KOBRING; SNAP |
