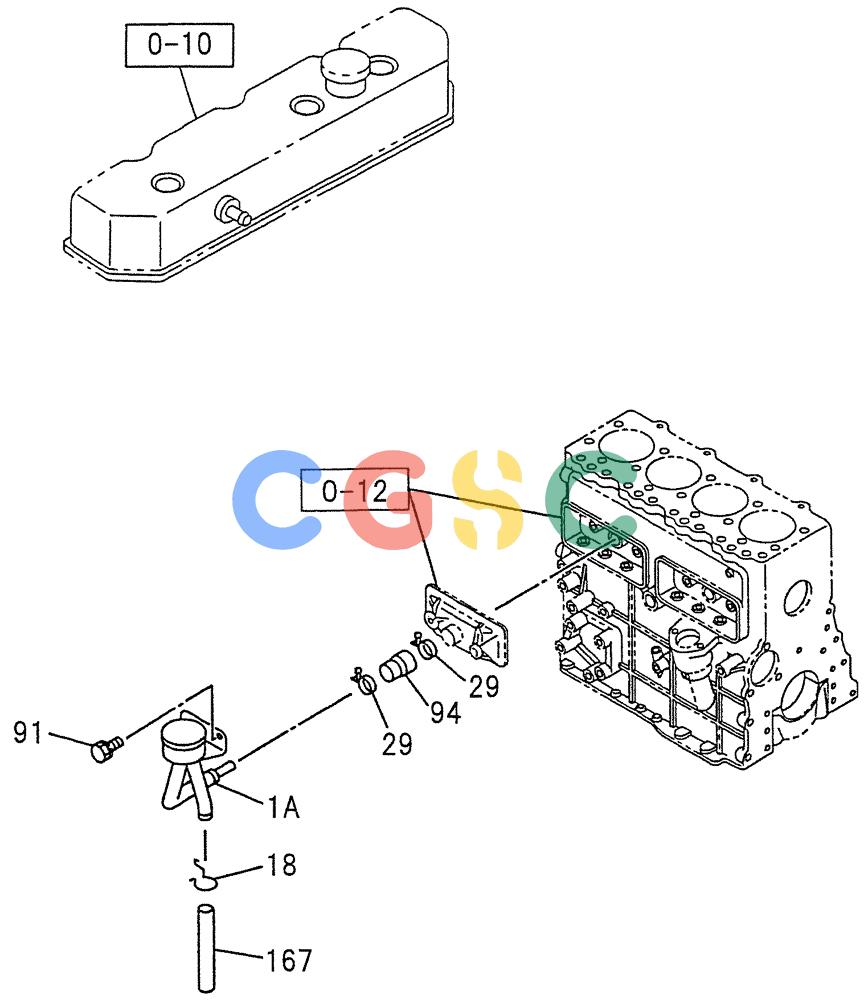

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (08-012) - VENTILATION SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
358 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1 A. | VI8970211722 | [1] | BREATHER | KOBBREATHER; AIR |
| 18. | VI5097040331 | [1] | CLIP | KOBCLIP; RUBBER HOSE, AIR BREATHER |
| 29. | VI1097040640 | [1] | CLIP | KOBCLIP; RUBBER HOSE, BREATHER (ID=48) |
| 29. | VI1097040730 | [1] | CLIP | KOBCLIP; RUBBER HOSE, BREATHER (ID=54) Superseded by part number: VI1097040660 |
| 91. | VI0280808120 | [2] | BOLT; AIR BREATHER (M8X12 FLANGE) | |
| 94. | VI8944338711 | [1] | HOSE | KOBHOSE; BREATHER TO PIPE Superseded by part number: VI8972242050 |
| 94. | VI8972242050 | [1] | HOSE | KOBHOSE; BREATHER TO PIPE |
