日立零件查询（CX1000）CRANKSHAFT,PISTON AND FLYWHEEL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
751 次

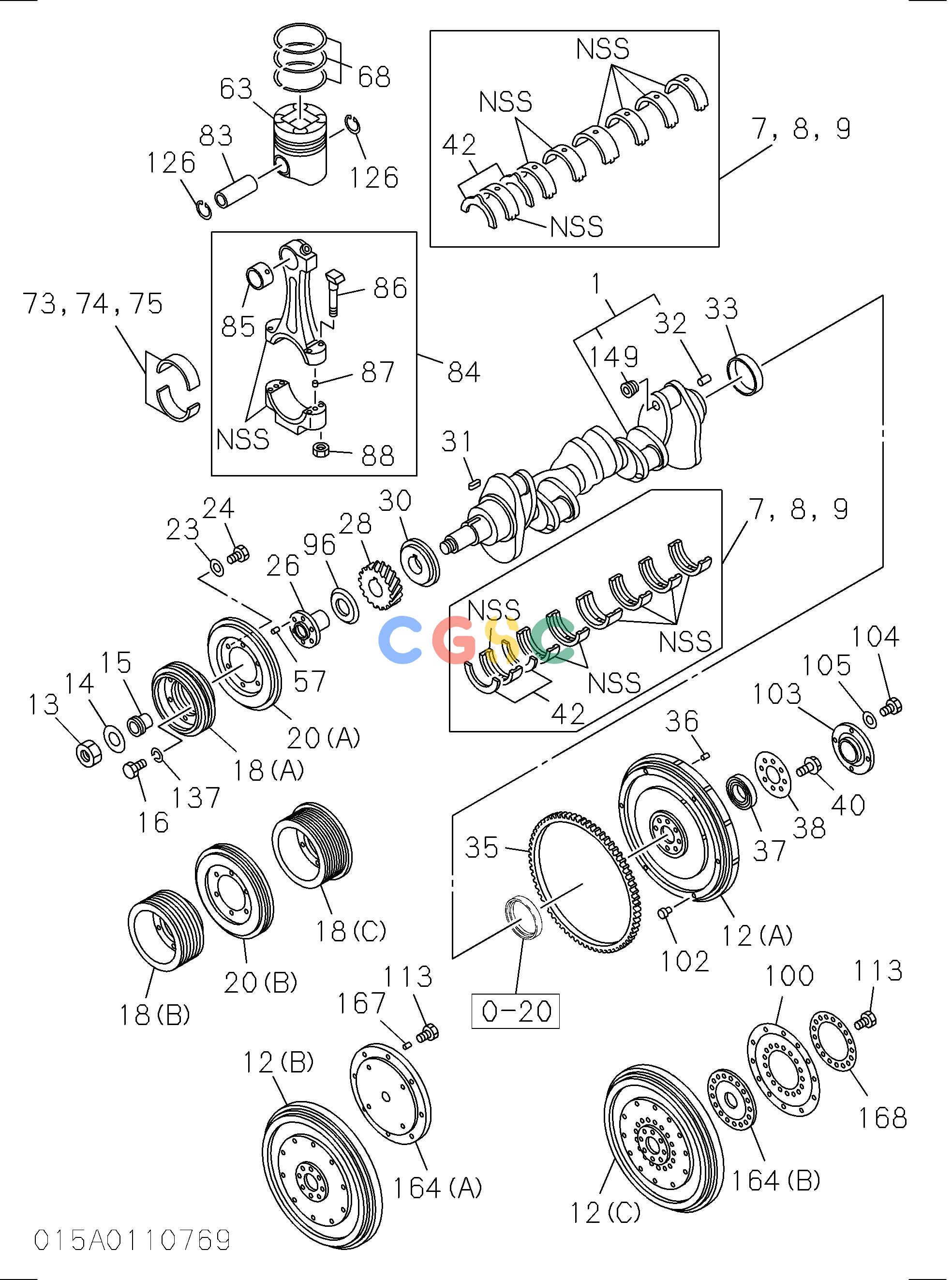

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1123104972 | [1] | CRANKSHAFT | |
| 7. | 1115100601 | [1] | METAL KIT; CRANKSHAFT,STANDARD | |
| 12(A). | 1123312141 | [1] | FLYWHEEL | |
| 13. | 9123780390 | [1] | NUT; STARTING HANDLE | |
| 14. | 9098514310 | [1] | WASHER; PULLEY DAMPER | |
| 15. | 9123790610 | [1] | BUSHING; TAPER,CR/SHF PULLEY | |
| 16. | 9920612300 | [6] | BOLT; PULLEY TO CENTER | M12X30 |
| 18(B). | 1123713730 | [1] | PULLEY; CR/SHF | |
| 20(B). | 1123751890 | [1] | DAMPER; CR/SHF | |
| 23. | 1095030331 | [6] | WASHER; DAMPER | |
| 24. | 9023610220 | [6] | BOLT; DAMPER | M10X22 |
| 26. | 1123713130 | [1] | PULLEY; CENTER | |
| 28. | 9125210452 | [1] | GEAR; CR/SHF | |
| 30. | 9123610242 | [1] | COLLAR; THRUST | |
| 31. | 9098670120 | [1] | KEY; FEATHER,CR/SHF | |
| 32. | 9081512200 | [1] | PIN; FLYWHEEL | |
| 33. | 1123190100 | [1] | RING; WEAR,CR/SHF | |
| 35. | 1123330130 | [1] | GEAR; RING | Z=139 |
| 38. | 9123360251 | [1] | WASHER; FLYWHEEL | |
| 40. | 1090700171 | [8] | BOLT; FLYWHEEL | |
| 42. | 1115150400 | [2] | WASHER; THRUST,CR/SHF | |
| 57. | 9081504080 | [1] | PIN; PULLEY | |
| 63. | 1121117080 | [6] | PISTON | NON GRADEALSO INCLUDED IN LINER SET. |
| 68. | 1121211120 | [6] | RING SET; PISTON,STANDARD | ALSO INCLUDED IN LINER SET. |
| 73. | 1122710480 | [6] | METAL SET; CONN ROD,STANDARD | |
| 74. | 1122730480 | [6] | METAL SET; CONN ROD,U/S=0.25 | |
| 75. | 1122740480 | [6] | METAL SET; CONN ROD,U/S=0.50 | |
| 83. | 1122110181 | [6] | PIN; PISTON | ALSO INCLUDED IN LINER SET. |
| 84. | 1122301081 | [6] | ROD ASM; CONN | |
| 85. | 1122510250 | [6] | BUSHING; CONNROD | ALSO INCLUDED IN LINER SET. |
| 86. | 1122350261 | [24] | BOLT; CONNROD | |
| 87. | 9098786101 | [12] | PIN; CONNROD BIG END | |
| 88. | 9098403160 | [24] | NUT; CONNROD | |
| 96. | 1123790200 | [1] | THROWER; DUST,CR/SHF | |
| 126. | 1095870750 | [12] | RING; SNAP,PISTON PIN | ALSO INCLUDED IN LINER SET. |
| 137. | 1095031110 | [6] | WASHER; LK,CR/SHF PULLEY | |
