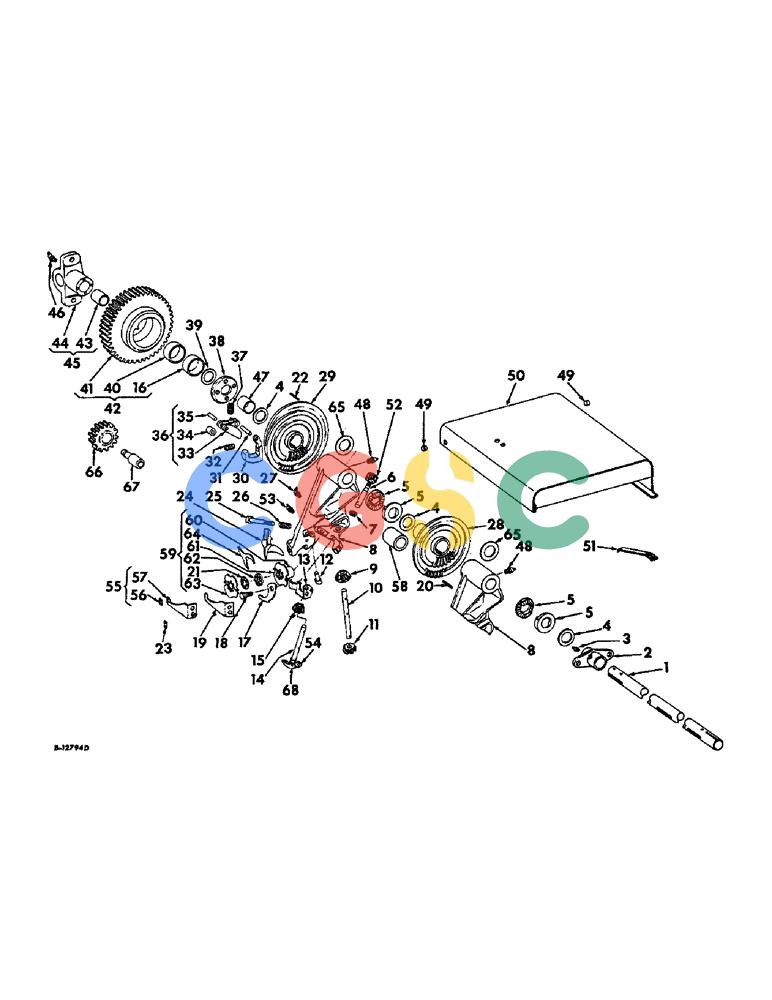

| 1. |
667812R1
|
[1] |
SHAFT
|
IH
knotter
|
| 2. |
667818R1
|
[1] |
FLANGE
|
IH
BEARING, knotter shaft left
|
| . . |
17446R1
|
[2] |
BOLT,3/8" - 16 x 1 1/4", Gr 2
|
IH
mach. 3/8 x 1-1/4 Superseded by part number: 88011
|
| . . |
103321
|
[2] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
102635
|
[2] |
NUT,3/8"-16, G5
|
IH
Superseded by part number: 280136
|
| 3. |
87414
|
[1] |
LUBE NIPPLE,1/4" - 28
|
NH
FITTING, 1/4-28 str self-tap. lub
|
| 4. |
21747R1
|
[4] |
WASHER,1.22" ID x 2" OD x 0.07" Thk
|
IH
1-7/32 x 2 x 16 ga C-Z (or as required), replaces Q140
|
| 5. |
667813R1
|
[4] |
COLLAR CLAMP
|
IH
COLLAR, knotter shaft adjusting
|
| . . |
443100
|
[4] |
STUD
|
IH
rd. hd. drive #12
|
| . . |
432-1232
|
[1] |
COTTER PIN,3/16" OD x 2" L
|
CAS
Pin, Split (Cotter), 3/16" x 1 3/4" Superseded by part number: 87400
|
| . . |
Q120
|
[1] |
WASHER
|
IH
1-7/32 x 2 x 22 ga
|
| . . |
615264R1
|
[1] |
WASHER
|
IH
1-7/32 x 1-3/4 x 16 ga
|
| . . |
Q251
|
[1] |
WASHER
|
IH
1-7/32 x 2 x 22 ga Superseded by part number: 607894R1
|
| 6. |
668415R1
|
[2] |
SPINDLE
|
IH
cord holder
|
| 7. |
667239R1
|
[10] |
DISC
|
IH
SHIM, knotter hook shaft and cord holder spindle
|
| 8. |
668956R91
|
[2] |
|
P
KNOTTER ASSY, see Note A
|
| 8. |
668957R11
|
[2] |
|
P
FRAME W/BEARING PIECE, knotter, long wear part
|
| 8. |
666510R92
|
[2] |
KNOTTER ASSY.
|
IH
KNOTTER ASSEMBLY
|
| 8. |
495965R94
|
[2] |
KNOTTER ASSY.
|
IH
FRAME W/WEARING PIECE, knotter
|
| 9. |
495192R3
|
[2] |
GEAR
|
IH
PINION, cord holder drive bevel
|
| 9. |
668958R1
|
[2] |
NO LONGER SERVICED
|
IH
PINION, cord holder drive bevel, long wear part Superseded by part number: 495192R3
|
| 10. |
495433R1
|
[2] |
SHAFT HOUSING
|
IH
SHAFT, cord holder drive Superseded by part number: 3101286R1
|
| . . |
Q5066
|
[4] |
PIN
|
IH
str. 6 ga. x 31/32
|
| . . |
Q232
|
[4] |
WASHER
|
IH
37/64 x 15/16 x 20 ga (or as req.) Superseded by part number: 495-81172
|
| . . |
Q3476
|
[4] |
WASHER
|
IH
37/64 x 15/16 x 22 ga. (or as req.) Superseded by part number: 495-81170
|
| 11. |
495425R1
|
[2] |
GEAR
|
IH
PINION, cord holder helical
|
| 11. |
668960R1
|
[2] |
GEAR
|
IH
PINION, cord holder helical, long wear part
|
| 12. |
V618H
|
[2] |
SPACER
|
IH
PIECE, knotter frame wearing
|
| . . |
117898
|
[2] |
PIN
|
IH
str 5/32 x 1-1/16 Superseded by part number: 17141R1
|
| 13. |
667408R1
|
[2] |
SPRING
|
IH
twine end retainer
|
| 14. |
666511R92
|
[2] |
TWISTER
|
IH
HOOK, knotter cpt. Superseded by part number: 204793C91
|
| 15. |
668959R1
|
[2] |
GEAR
|
IH
PINION, Bill Hook, long wear part
|
| 15. |
495197R3
|
[2] |
GEAR
|
IH
PINION, Bill Hook Superseded by part number: 495197R4
|
| . . |
Q3854
|
[2] |
PIN
|
IH
str. 6 ga. x 27/32
|
| 16. |
667826R1
|
[1] |
BUSHING
|
IH
knotter drive gear L H, 37501G thru 6078K, 47501G thru 6213K
|
| 16. |
669644R1
|
[1] |
BUSHING
|
IH
knotter drive gewar LH, 376079K up, 476214K up
|
| 17. |
668963R1
|
[2] |
HOLDER
|
IH
BLADE, cord holder keeper, long wear part Superseded by part number: 495474R3
|
| 17. |
495474R3
|
[2] |
SHIM
|
IH
BLADE, cord holder keeper
|
| 18. |
495432R1
|
[2] |
SCREW
|
IH
STUD, cord holder keeper pivot
|
| 19. |
495463R4
|
[2] |
KNIFE
|
IH
twine, optional w/668961R21 Superseded by part number: 200425C1, 668961R21, 86533411
|
| . . |
18654R1
|
[4] |
BOLT,Hex, 1/4" - 20 x 3/4", Gr 2
|
IH
1/4 x 3/4 cd-pltd hex-hd mach Superseded by part number: 424-412
|
| . . |
492-11025
|
[4] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| . . |
120392
|
[12] |
WASHER,1/4", SAE
|
IH
9/32 x 5/8 x 16 cd or zn-pltd Superseded by part number: 87361
|
| 20. |
Q22
|
[1] |
KEY
|
IH
str. 3/8 x 1/4 x 2-1/4
|
| 21. |
495504R1
|
[6] |
SHIM
|
IH
cord holder, (or as required)
|
| 21. |
667238R1
|
[4] |
SHIM
|
IH
cord holder .003 (or as req.)
|
| 21. |
667547R1
|
[4] |
|
P
SHIM, cord holder .005 plastic
|
| 22. |
Q3728
|
[1] |
KEY,Gib, 3/8" Sq x 2 1/8" Tap
|
IH
3/8 x 2-1/8 sq tapered
|
| 23. |
200425C1
|
[6] |
SPACER
|
IH
twine knife, (or as required)
|
| 24. |
667563R1
|
[2] |
CAM
|
IH
knotter jaw closing Superseded by part number: 667563R2
|
| 25. |
667533R1
|
[2] |
BOLT,3/8" - 16 x 2 7/8"
|
IH
special 3/8 x 2-7/8
|
| . . |
664645R1
|
[2] |
LOCK NUT,3/8"-16, GB
|
IH
NUT, 3/8 lock Superseded by part number: 231-4206
|
| . . |
Q1597
|
[4] |
WASHER
|
IH
13/32 x 3/4 x 16 ga. Superseded by part number: 86632580
|
| . . |
17447R1
|
[2] |
BOLT
|
IH
mach. 7/16 x 1-1/4
|
| . . |
103322
|
[2] |
LOCK WASHER,7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| . . |
W6652
|
[2] |
WASHER
|
IH
15/32 x 1 x 16 ga. Superseded by part number: 495-81158
|
| 26. |
U13033
|
[2] |
SPRING
|
IH
knotter closing cam
|
| 27. |
19630R91
|
[4] |
LUBE NIPPLE,90 Degree, 1/8" NPT x .76" lg, Drive
|
IH
FITTING, 1/8-27 PTF 90 deg angle self tapping lub Superseded by part number: 87017581
|
| 28. |
668971R2
|
[1] |
|
P
CAM, knotter left, long wear part
|
| 28. |
667819R1
|
[1] |
CAM
|
IH
knotter left Superseded by part number: 667819R2
|
| . . |
179893
|
[1] |
BOLT,Hex, 1/2" - 13 x 3", Gr 5
|
IH
SCREW, cap. 1/2 x 3 Superseded by part number: 87339
|
| . . |
102637
|
[1] |
NUT,1/2"-13, G5
|
IH
Superseded by part number: 280431
|
| . . |
103323
|
[1] |
LOCK WASHER,1/2"
|
IH
WASHER, LOCK, 1/2" Superseded by part number: 87326976
|
| 29. |
668970R2
|
[1] |
CARRIER
|
IH
trip dog, long wear part Superseded by part number: 668970R4
|
| 29. |
667820R2
|
[1] |
NO LONGER SERVICED
|
IH
CARRIER, trip dog Superseded by part number: 667820R4
|
| . . |
443057
|
[1] |
GROOVED PIN,3/8" x 2 1/4", Type F
|
IH
PIN, 3/8 x 2-1/4 groove type 3 Superseded by part number: 435-61236
|
| 30. |
662048R2
|
[1] |
PAWL
|
IH
DOG, auxiliary trip
|
| 30. |
671633R91
|
[1] |
STRIPPER PACKAGE
|
IH
PACKAGE, trip dog service, consists of 655712R11 dog w/roller, V341 roller, V690 stud V680 spring, 662048R2 dog, R1003 spring, 664947R1 pivot
|
| 31. |
664947R1
|
[1] |
PIVOT
|
IH
trip dog
|
| . . |
Q134
|
[1] |
WASHER, 15/32 x 13/16 x 18 ga (or as required)
|
|
| . . |
588099R1
|
[1] |
WASHER
|
IH
15/32 x 3/4 x 22 ga (or as required)
|
| 32. |
R1003
|
[1] |
SPRING
|
IH
auxiliary trip dog
|
| 34. |
V341
|
[1] |
PAWL
|
IH
ROLLER, trip dog
|
| 35. |
V690
|
[1] |
PIN
|
IH
STUD, trip dog roller
|
| 36. |
655712R11
|
[1] |
PAWL
|
IH
DOG W/ROLLER & STUD, trip
|
| 37. |
V680
|
[1] |
SPRING
|
IH
trip dog Superseded by part number: 753027R1
|
| 38. |
666754R1
|
[1] |
WASHER
|
IH
RETAINER, drive gear
|
| . . |
668787R1
|
[4] |
SCREW,Hex Soc Hd, 1/4"-20 x 1/2"
|
IH
1/4 x 1/2 nylock hex-soc-hd
|
| 39. |
664820R1
|
[2] |
WASHER
|
IH
drive gear (or as required)
|
| 42. |
667825R11
|
[1] |
|
P
GEAR W/BUSHINGS, knotter drive, 37 501G thru 6078K, 47501G thru 6213K
|
| 42. |
669642R11
|
[1] |
|
P
GEAR W/BUSHINGS, knotter drive, 37 6079K up, 476214K, up
|
| 43. |
667824R1
|
[1] |
BUSHING
|
IH
knotter shaft
|
| . . |
179885
|
[2] |
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
|
IH
Superseded by part number: 87689
|
| 45. |
669643R11
|
[1] |
PIVOT
|
IH
SUPPORT W/BUSHING, knotter & gear insert, 376079K up, 476214K up Superseded by part number: 3101331R91
|
| 45. |
667822R91
|
[1] |
|
P
SUPPORT W/BUSHING, knotter and gear insert, 37501G thru 6078K, 47501G thru 6213K
|
| 46. |
16964R91
|
[1] |
FITTING
|
IH
1/4-28 90 deg lub, replaces 274510 Superseded by part number: 87414
|
| 47. |
667821R1
|
[1] |
|
P
SPACER, knotter shaft right, 37501G thru 6078K, 47501G thru 6213K
|
| 48. |
219-86
|
[6] |
LUBE NIPPLE,1/8" NPTF
|
CAS
FITTING, 1/8-27 PTF str self tapping lub
|
| 49. |
11309N
|
[2] |
SPACER
|
IH
knotter cover, for 47 Baler
|
| . . |
19570R1
|
[2] |
BOLT,Hex, 1/4" - 20 x 5/8", Gr 2
|
IH
1/4-20 x 5/8 cd-pltd hex-hd Superseded by part number: 280641
|
| 50. |
667784R91
|
[1] |
NO LONGER SERVICED
|
IH
COVER, knotter, for 47 Baler Superseded by part number: 667784R92
|
| 51. |
667787R1
|
[1] |
SPRING
|
IH
knotter cover, for 47 Baler
|
| . . |
110638
|
[2] |
RIVET
|
IH
button hd 3/16 x 5/16
|
| 52. |
668416R1
|
[2] |
GEAR
|
IH
helical driven cord holder
|
| 52. |
668978R1
|
[2] |
GEAR
|
IH
cord holder helical driven, long wear part
|
| . . |
NLS
|
[2] |
NO LONGER SERVICED
|
BAS
NUT, 7/16-14 cd-pltd hex.
|
| . . |
425-147
|
[2] |
JAM NUT,Jam, 7/16"-14, G5
|
CAS
7/16-14 cd-pltd hex. jam Superseded by part number: 86642432
|
| 53. |
87415
|
[2] |
LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive
|
NH
NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive
|
| 54. |
666517R92
|
[2] |
HOOK
|
IH
JAW, knotter cpt. Superseded by part number: 204793C91
|
| 55. |
668961R21
|
[2] |
KNIFE
|
IH
ASSY, twine, long wear part, optional w/495463R4
|
| 56. |
668962R1
|
[2] |
KNIFE,14.28mm L x 9.53mm W x 0.71mm Thk
|
IH
BLADE, twine knife, long wear part
|
| . . |
436690
|
[2] |
SCREW,Slotted Pan Hd, #8-32 x 3/16"
|
IH
8-32 x 3/16 C-Z pan-hd-slt mach Superseded by part number: 470-1083
|
| 58. |
668972R1
|
[1] |
|
P
SPACER, knotter cam left, long wear part
|
| 59. |
495619R95
|
[2] |
DISC
|
IH
HOLDER ASSY, cord Superseded by part number: 495619R96
|
| 59. |
668964R92
|
[2] |
HOLDER
|
IH
ASSY, cord, long wear part
|
| 60. |
668965R1
|
[2] |
HUB
|
IH
cord holder, long wear part
|
| . . |
17064R1
|
[2] |
LOCK PIN,1/8" x 5/8", Slotted
|
IH
Pin, 1/8" x 5/8", Slotted Superseded by part number: 20948R1
|
| 61. |
672524R2
|
[2] |
DISC
|
IH
DISK, cord holder rear, replaces 495446R2, for service replacement of 495446R2 order 672524R2, 668965R1, 668967R1, 17064R1 and six, 110532
|
| 61. |
668966R2
|
[2] |
DISC
|
IH
DISK, cord holder rear, long wear part
|
| 62. |
668967R1
|
[2] |
RETAINER
|
IH
SPACER, cord holder, long wear part
|
| 63. |
495462R3
|
[2] |
DISC
|
IH
DISK, cord holder front
|
| 63. |
668968R2
|
[2] |
DISC
|
IH
DISK, cord holder front, long wear part
|
| . . |
110532
|
[12] |
SCREW,Sl Flat Hd, #10 - 24 x 5/8"
|
IH
Superseded by part number: 473-11010
|
| . . |
17348R1
|
[2] |
LOCK PIN,3/16" x 1 3/8", Slotted
|
IH
PIN, 3/16" x 1 3/8", Slotted Superseded by part number: 38-11222
|
| 64. |
495475R3
|
[2] |
HALF BLADE
|
IH
CLEANER, cord holder
|
| 64. |
668969R2
|
[2] |
CLEANER ASSY.
|
IH
CLEANER, cord, long wear part
|
| 65. |
667588R1
|
[2] |
DISC
|
IH
SHIM, knotter to cam fit up (or as required)
|
| 68. |
666515R1
|
[2] |
PIN
|
IH
knotter hook jaw
|
