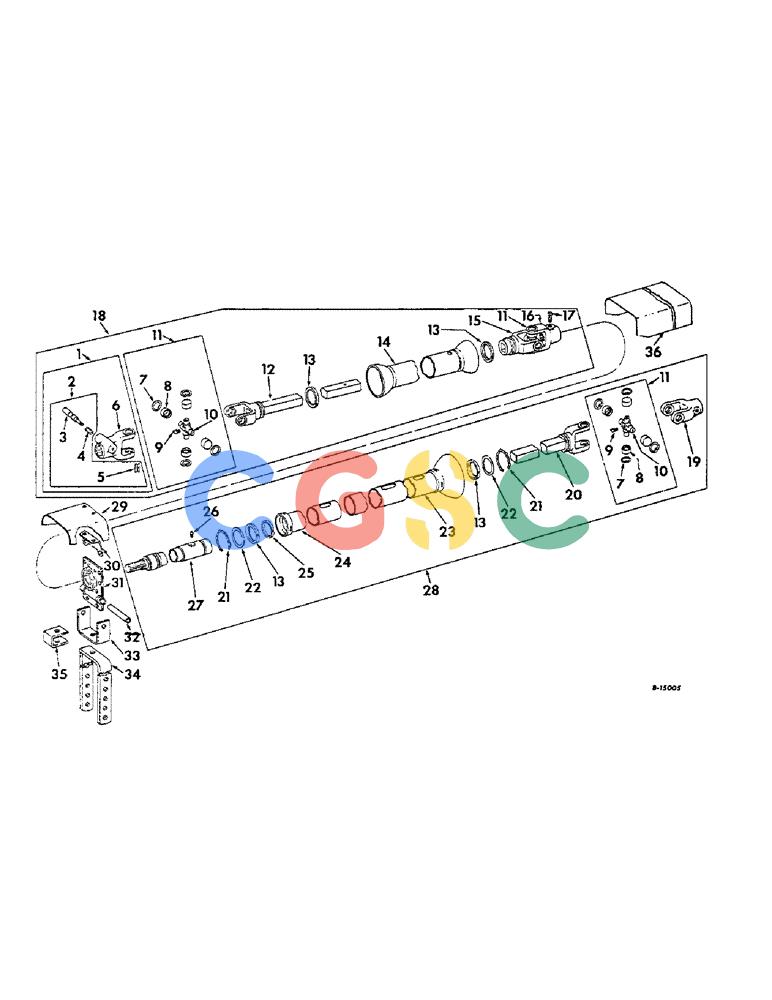

| 1. |
568100R92
|
[1] |
YOKE
|
IH
ASSY, quick attachable, see Note A Superseded by part number: 568100R93
|
| 1. |
472857R91
|
[1] |
YOKE
|
IH
ASSY, quick attachable, see Notes B and D
|
| 1. |
660484R21
|
[1] |
FORK
|
IH
YOKE ASSY, quick attachable, see Note C Superseded by part number: 8803645
|
| 2. |
455346R21
|
[1] |
PIN
|
IH
UNIT, locking pin, see Notes A and C Superseded by part number: 237924A1
|
| 3. |
587478R1
|
[1] |
PIN
|
IH
locking, see Notes B and D Superseded by part number: 631976R91
|
| 4. |
455347R1
|
[1] |
VALVE SPRING
|
IH
SPRING, lock unit, see Notes A and C Superseded by part number: 237924A1
|
| 4. |
587479R1
|
[1] |
SPRING
|
IH
locking, see Notes B and D Superseded by part number: 455347R1
|
| 5. |
661406R1
|
[1] |
LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk
|
IH
X lock
|
| 6. |
472858R1
|
[1] |
|
P
YOKE, see Notes B and D
|
| 7. |
576420R1
|
[12] |
RING
|
IH
snap, see Notes A, B and D
|
| 7. |
495962R1
|
[12] |
RING
|
IH
snap, see Note C
|
| 8. |
569044R91
|
[12] |
BEARING ASSY
|
IH
ASSY, needle, see Notes A, B and D Superseded by part number: 84355319
|
| 8. |
661671R91
|
[12] |
JOINT
|
IH
BEARING ASSY, needle, see Note C Superseded by part number: 84355326
|
| 9. |
219-40
|
[3] |
LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF
|
CAS
1/8-27 PTF, 65 degree lub Superseded by part number: 80711
|
| 11. |
200464C91
|
[3] |
PACKAGE
|
IH
KIT, cross service, see Notes A, B and D Superseded by part number: 84355319
|
| 12. |
660116R91
|
[3] |
NUT
|
IH
KIT, cross service, see Note C Superseded by part number: 84355326
|
| 12. |
666734R91
|
[1] |
YOKE
|
IH
& SQUARE SHAFT, see Note A Superseded by part number: 666734R92
|
| 12. |
666741R91
|
[1] |
YOKE
|
IH
SHAFT ASSY, front half, see Note C Superseded by part number: 666741R92
|
| 12. |
668716R91
|
[1] |
|
P
SHAFT ASSY, front half, see Notes B and D
|
| . . |
577247R1
|
[1] |
LOCK PIN,3/8" x 2", Slotted
|
IH
Pin, 3/8" x 2", Slotted Superseded by part number: 438-32432
|
| 13. |
464920R1
|
[4] |
NYLON BEARING,2.08" ID x 2.8" OD x 0.38"
|
IH
nylon Superseded by part number: 47941, 579113
|
| 14. |
666735R91
|
[1] |
|
P
SHIELD ASSY, shaft, see Note A
|
| 14. |
668717R91
|
[1] |
|
P
SHIELD ASSY, shaft, see Notes B and D
|
| 14. |
666742R91
|
[1] |
|
P
SHIELD ASSY, shaft, see Note C
|
| 15. |
666736R1
|
[1] |
YOKE
|
IH
plain, see Notes A, B and D Superseded by part number: 666736R2
|
| 15. |
666743R1
|
[1] |
YOKE
|
IH
plain, see Note C
|
| 16. |
576433R1
|
[1] |
FORK
|
CAS
YOKE, splined, see Notes A, B and D Superseded by part number: 576433R2
|
| 16. |
660489R1
|
[1] |
YOKE
|
IH
splined, see Note C Superseded by part number: 29212
|
| 17. |
38904K
|
[1] |
SET SCREW,1/2" - 20 x 1-9/16"
|
IH
SCREW, 1/2-20 x 1-3/16 sq-hd cone pt set
|
| . . |
114496
|
[1] |
HOURMETER,Jam, 1/2"-20, G5
|
IH
NUT, 1/2-20 hex. jam Superseded by part number: 124934
|
| 18. |
666729R91
|
[1] |
|
P
SHAFT ASSY, main drive, front half, see Note A
|
| 18. |
668698R91
|
[1] |
|
P
SHAFT ASSY, main drive, front half, see Notes B and D
|
| 18. |
666731R91
|
[1] |
GASKET
|
CAS
SHAFT ASSY, main drive front half, see Note C
|
| 19. |
460620R1
|
[1] |
YOKE
|
IH
splined, see Notes A, B and D
|
| . . |
114493
|
[1] |
JAM NUT,Jam, 5/16"-24, G5
|
IH
1/2-20 hex. jam Superseded by part number: 86637933
|
| 19. |
664179R1
|
[1] |
YOKE
|
IH
splined, see Note C
|
| 20. |
666737R91
|
[1] |
YOKE
|
IH
SHAFT ASSY, rear half, see Notes A, B and D
|
| 20. |
666744R91
|
[1] |
YOKE
|
IH
SHAFT ASSY, rear half, see Note C Superseded by part number: 666744R92
|
| 21. |
613436R1
|
[2] |
CLAMP
|
IH
RING, snap Superseded by part number: 56760
|
| 22. |
613437R1
|
[2] |
THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk
|
IH
thrust
|
| 23. |
666739R91
|
[1] |
|
P
SHIELD W/BELL, outer, see Notes A, B and D
|
| 23. |
666745R91
|
[1] |
|
P
SHIELD W/BELL, outer, see Note C
|
| 24. |
666738R91
|
[1] |
|
P
SHIELD W/RETAINER, inner, see Notes A, B and D
|
| 24. |
666746R91
|
[1] |
RETAINER
|
IH
SHIELD W/RETAINER, inner, see Note C Superseded by part number: 666746R92
|
| 25. |
613439R1
|
[1] |
BRACKET
|
IH
BEARING, inner shield Superseded by part number: 754317
|
| 26. |
86636814
|
[1] |
LUBE NIPPLE,1/4"-28 x .52" lg
|
GI
FITTING, 1/4-28 str lub Superseded by part number: 88775
|
| 27. |
666740R91
|
[1] |
SHAFT
|
IH
TUBE ASSY, rear half shaft, see Notes A, B and D
|
| 27. |
666747R91
|
[1] |
TUBE ASSY.,2.125" OD, 24.625" Length
|
IH
TUBE ASSY, rear half shaft, see Note C Superseded by part number: 666747R92
|
| 28. |
668699R91
|
[1] |
|
P
SHAFT ASSY, main drive rear half, see Notes A, B and D
|
| 28. |
666732R91
|
[1] |
|
P
SHAFT ASSY, main drive rear half, see Note C
|
| 29. |
662249R11
|
[1] |
|
P
SHIELD W/PRODUCT GRAPHIC, PTO brg box
|
| 30. |
667416R1
|
[1] |
BRACKET, PTO bearing box shield
|
|
| 31. |
ST669
|
[1] |
BEARING ASSY,35mm ID
|
IH
PTO shaft front
|
| 32. |
667460R1
|
[1] |
BUSHING
|
IH
PIVOT, PTO shaft brg
|
| 33. |
667462R1
|
[1] |
BRACKET
|
IH
PTO shaft bearing pivot
|
| 34. |
667790R91
|
[1] |
BRACKET
|
IH
PEDESTAL ASSY
|
| . . |
662086R1
|
[1] |
|
P
SCREW, 1/2-20 x 5-1/4 hex-hd cap
|
| 35. |
667792R1
|
[1] |
BRACKET
|
IH
PTO bearing bolt
|
| . . |
667793R1
|
[1] |
|
P
BOLT, PTO pivot
|
| 36. |
663630R91
|
[1] |
|
P
SHIELD ASSY, PTO rear
|
