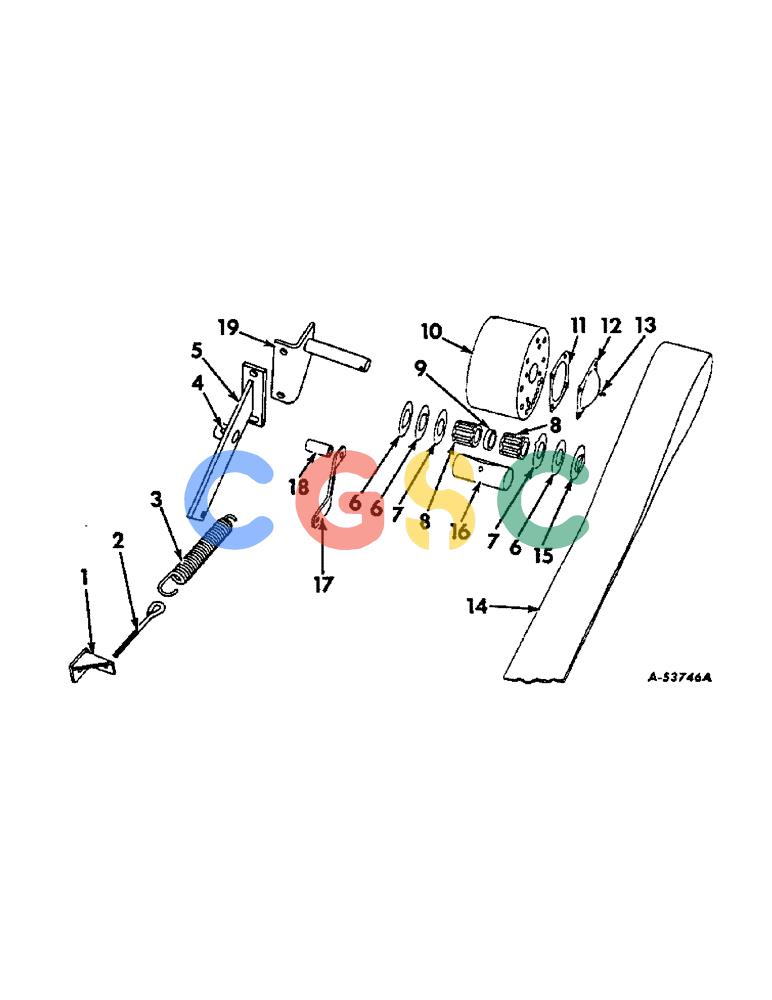

凯斯零件查询(57) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/57-12/72) (A-49) - POWER TAKE-OFF ATTACHMENT, IDLER PULLEY AND LEVER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
699 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
663713R91
|
[1] |
|
P
ANCHOR ASSY, idler spring
|
| 2. |
662303R1
|
[1] |
|
P
BOLT, idler spring eye
|
| 3. |
33253A
|
[1] |
|
P
SPRING, idler pulley
|
| 4. |
86636814
|
[1] |
LUBE NIPPLE,1/4"-28 x .52" lg
|
GI
FITTING, 1/4-28 NF str lub Superseded by part number: 88775
|
| 5. |
663710R92
|
[1] |
|
P
LEVER ASSY, idler
|
| . . |
PO10535
|
[1] |
WASHER
|
IH
17/32 x 1-1/4 x 11 ga Superseded by part number: 495-81287
|
| 6. |
B32368
|
[4] |
|
IH
WASHER, pulley (or as required)
|
| 7. |
B32367
|
[2] |
|
IH
WASHER, pulley notched
|
| 8. |
74036H
|
[2] |
BEARING
|
IH
ASSY, idler pulley Superseded by part number: 102024R91
|
| 9. |
11449P
|
[1] |
SPACER,1 1/4" Pipe x 1/2"
|
IH
pulley bearing
|
| 10. |
5174PA
|
[1] |
|
P
PULLEY IDLER
|
| 11. |
656874R1
|
[1] |
|
P
GASKET, pulley cap
|
| 12. |
659371R91
|
[1] |
|
P
CAP ASSY, idler pulley
|
| 13. |
109461
|
[1] |
LUBE NIPPLE,1/8"-27 x .66 lg
|
IH
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg Superseded by part number: 80710
|
| 14. |
663609R1
|
[1] |
BELT,4.00" W x 139.00" L
|
IH
Drive 4.00" W x 139.00" L
|
| 15. |
11387P
|
[1] |
|
P
WASHER, thrust
|
| 16. |
451891R1
|
[1] |
|
P
RACE, pulley bearing
|
| 17. |
663716R1
|
[1] |
|
P
STRAP, idler lever hammer
|
| 18. |
663717R1
|
[1] |
|
P
PIVOT, idler lever
|
| . . |
615089R1
|
[1] |
|
P
WASHER, 17/32 x 1-3/4 x 16 ga
|
| 19. |
665258R91
|
[1] |
|
P
BRACKET ASSY, idler adjusting
|
| . . |
32-1632
|
[1] |
COTTER PIN,1/4" x 2"
|
CAS
PIN, SPLIT (COTTER), 1/4" x 2" Superseded by part number: 88182
|
