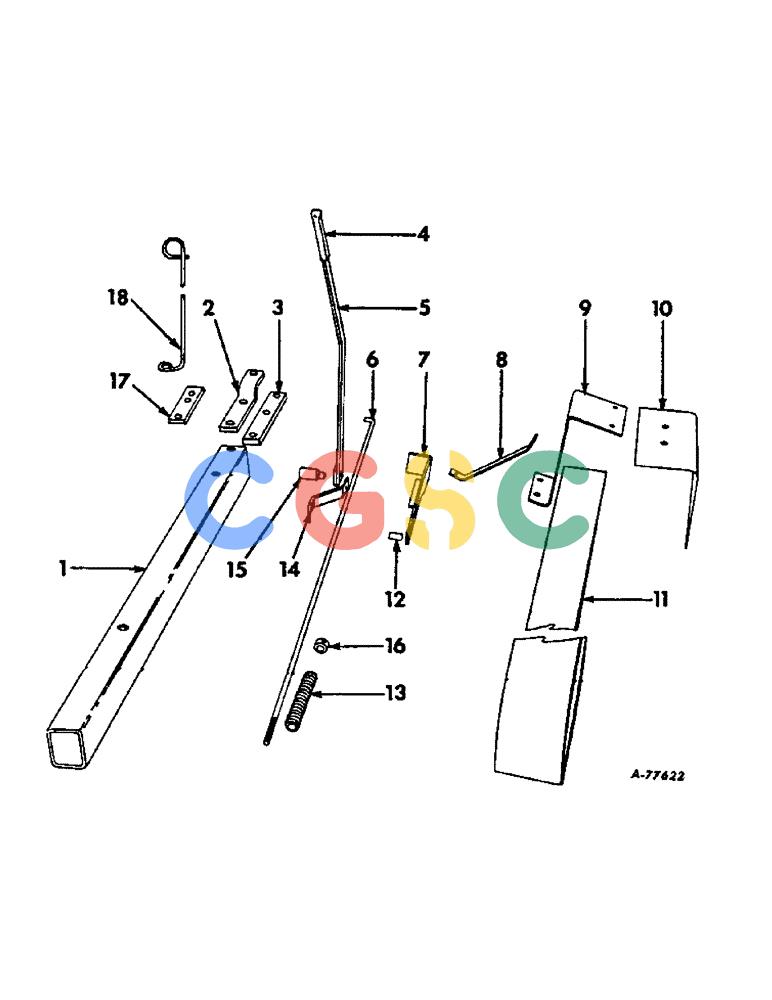

| 1. |
663324R91
|
[1] |
|
P
HITCH ASSY
|
| . . |
51107V
|
[1] |
|
P
WASHER, 1-17/32 x 3 x 7 ga
|
| 2. |
663448R1
|
[1] |
|
P
STRAP, hitch clevis lower
|
| 3. |
663449R1
|
[1] |
|
P
STRAP, hitch clevis upper
|
| 4. |
662340R1
|
[1] |
GRIP
|
IH
lever, replaces 666930R1
|
| 5. |
663573R1
|
[1] |
|
P
LEVER, engine idler control
|
| 6. |
663572R2
|
[1] |
|
P
ROD, engine idler control
|
| . . |
Q5035
|
[4] |
WASHER
|
IH
17/32 x 1 x 16 ga Superseded by part number: 495-81254
|
| 7. |
663647R91
|
[1] |
|
P
QUADRANT ASSY, engine idler lever
|
| 8. |
663883R1
|
[1] |
|
P
BRACE, belt shield support
|
| 9. |
663507R1
|
[1] |
|
P
BRACKET, engine drive belt shield
|
| . . |
18508R1
|
[2] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8-16 x 3/4 short sq-nk crg Superseded by part number: 86508748
|
| . . |
120377
|
[2] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[2] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
18764R1
|
[3] |
HARDWARE,Hex, 5/16"-18 x 3/4", G2
|
IH
BOLT, 5/16 x 3/4 znd hex-hd mach Superseded by part number: 424-512
|
| . . |
80681
|
[3] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 10. |
663506R11
|
[1] |
|
P
SHIELD W/PRODUCT GRAPHIC, engine drive belt
|
| 11. |
669597R1
|
[1] |
|
P
BELT 4.00" W x 160.00" L, Engine drive, See Note A 4.00" W x 160.00" L
|
| 11. |
663476R1
|
[1] |
|
P
BELT 4.00" W x 157.38" L, Engine drive, See Note B 4.00" W x 157.38" L
|
| 12. |
600373R1
|
[1] |
SPACER
|
IH
engine idler quadrant
|
| 13. |
PO3A
|
[1] |
SPRING
|
IH
engine idler control rod, replaces PO3
|
| 14. |
663574R1
|
[1] |
|
P
STRAP, engine idler lever hammer
|
| 15. |
663571R1
|
[1] |
|
P
PIVOT, engine idler lever
|
| 16. |
516595R1
|
[1] |
COLLAR
|
IH
engine idler control rod set Superseded by part number: 516595R11
|
| . . |
85-15010
|
[1] |
SET SCREW,Sq Hd, 1/2"-13 x 5/8"
|
CAS
SCREW, 1/2-13 x 5/8 sq-hd cup-pt set
|
| 17. |
668758R1
|
[1] |
SPACER
|
IH
hitch strap
|
| 18. |
668037R1
|
[1] |
SUPPORT
|
IH
hitch rope
|
