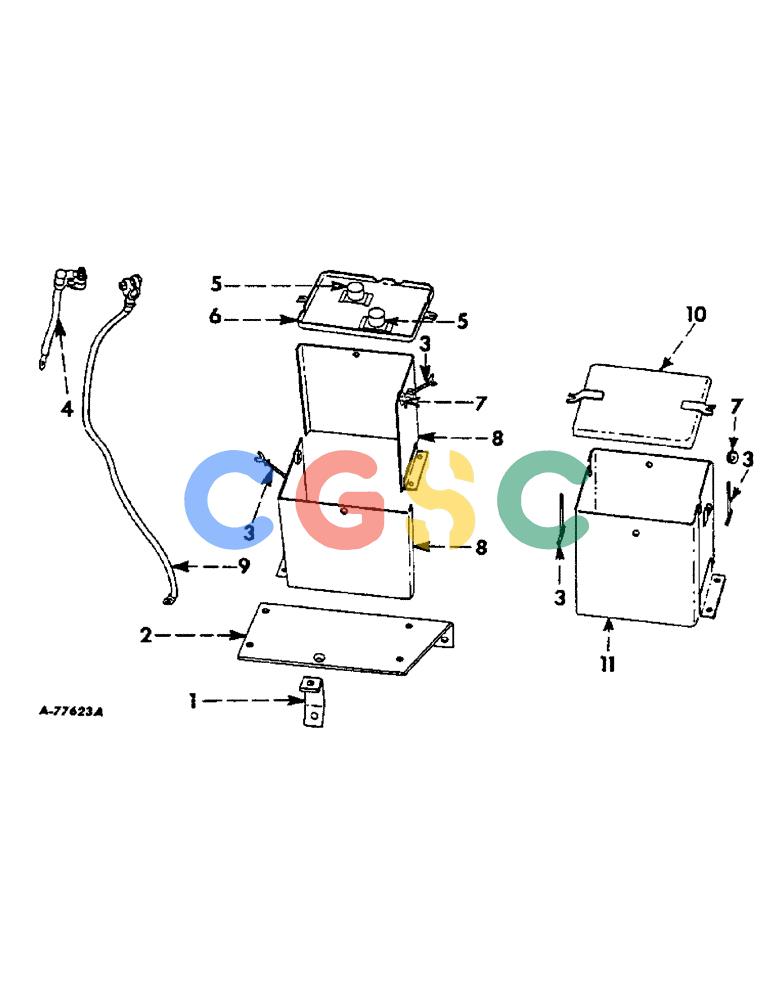

凯斯零件查询(57) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/57-12/72) (A-52) - ADDITIONAL PARTS FOR C-123 AND WISCONSIN ENGINES, BATTERY BOX AND ELECTRICAL CABLES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
182 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
663381R1
|
[1] |
|
P
SUPPORT, battery base
|
| . . |
114672
|
[1] |
SCREW
|
IH
3/8-16 x 1 slt-f-hd mach
|
| 2. |
663452R1
|
[1] |
|
P
BASE, battery box
|
| 3. |
50939DA
|
[2] |
SPECIAL BOLT,1/4" - 20 x 2 1/4"
|
IH
battery box cover hold down
|
| . . |
6655621R1
|
[2] |
NUT, 1/4-20 wing
|
|
| 4. |
671089R91
|
[1] |
|
P
CABLE, battery ground, 12 volt
|
| 4. |
69510DA
|
[1] |
CABLE
|
IH
battery ground, 6 volt Superseded by part number: 71198C1
|
| 5. |
65054DA
|
[2] |
|
P
RUBBER, battery hold down, 6 volt
|
| 6. |
663292R91
|
[1] |
|
P
COVER ASSY, battery box, 6 volt
|
| 7. |
52118D
|
[1] |
GROMMET
|
IH
battery box
|
| 8. |
663289R91
|
[2] |
|
P
BODY ASSY, battery box, 6 volt
|
| 9. |
672143R91
|
[1] |
|
P
CABLE, battery 12 volt, Wisconsin engine
|
| 9. |
671088R91
|
[1] |
|
P
CABLE, battery 12 volt, C124 engine
|
| 9. |
663454R91
|
[1] |
|
P
CABLE, battery 6 volt, Wisconsin engine
|
| 9. |
663457R91
|
[1] |
|
P
CABLE, battery 6 volt, C123 engine
|
| 10. |
671087R91
|
[1] |
|
P
COVER ASSY, battery box, 12 volt
|
| 11. |
671086R91
|
[1] |
|
P
BODY ASSY, battery box, 12 volt
|
