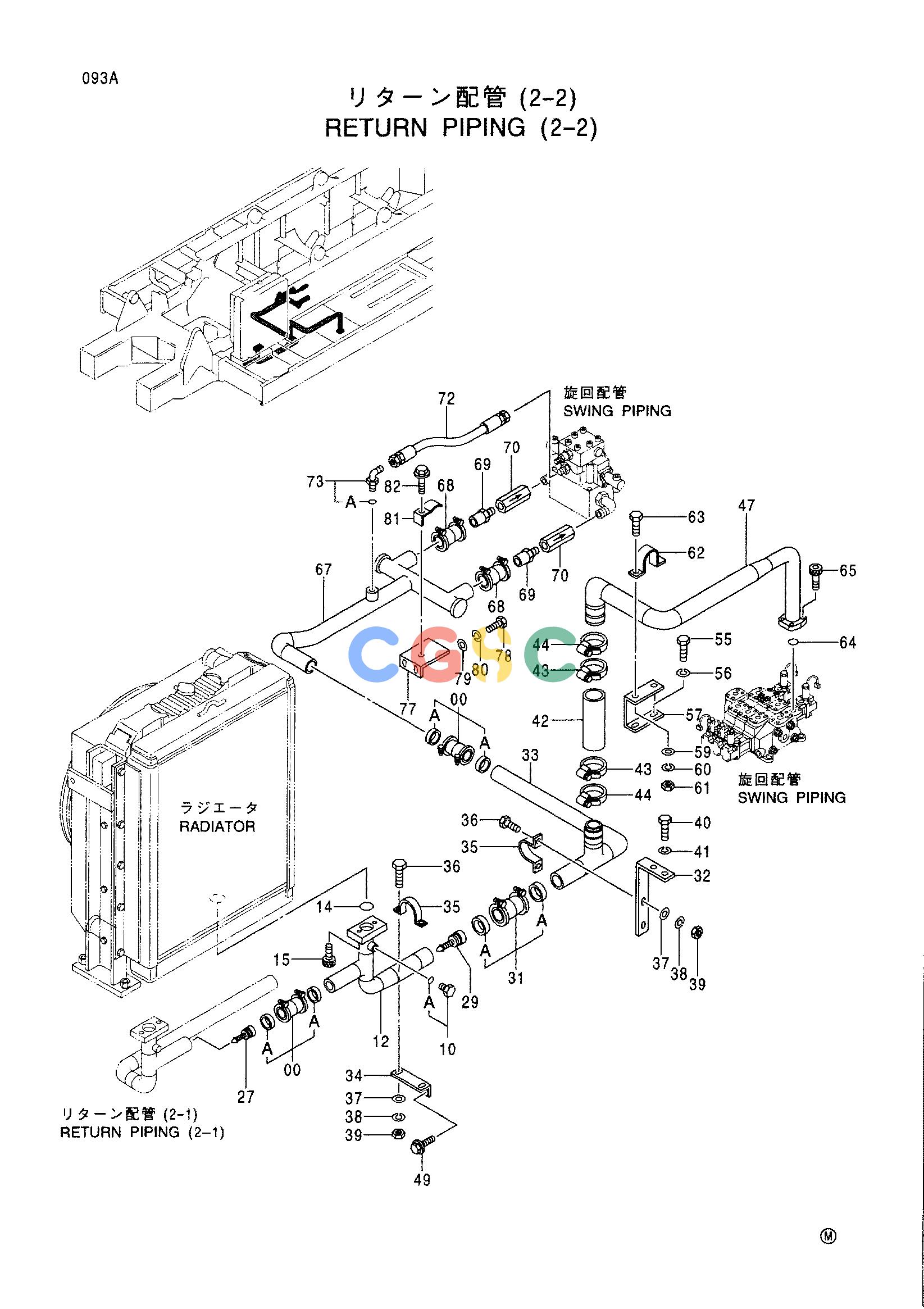

日立零件查询（CX1100）RETURN PIPING (2-2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
814 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4067834 | [2] | COUPLING | |
| 00A. | 4196260 | [2] | SEAL | |
| 10. | 4092534 | [1] | PLUG | |
| 10A. | 4509180 | [1] | O-RING | |
| 12. | 8071807 | [1] | PIPE | |
| 14. | A811050 | [1] | O-RING | |
| 15. | M341236 | [2] | BOLT;SOCKET | |
| 27. | 4252129 | [1] | VALVE | |
| 29. | 4156841 | [1] | VALVE | |
| 31. | 4067833 | [1] | COUPLING | |
| 31A. | 4196261 | [2] | SEAL | |
| 32. | 4402905 | [1] | BRACKET | |
| 33. | 8080803 | [1] | PIPE | |
| 34. | 4261363 | [1] | BRACKET | |
| 35. | 4053865 | [2] | CLAMP;PIPE | |
| 36. | J901030 | [4] | BOLT | |
| 37. | A590110 | [4] | WASHER;PLANE | |
| 38. | A590910 | [4] | WASHER;SPRING | |
| 39. | J950010 | [4] | NUT | |
| 40. | J901225 | [2] | BOLT | |
| 41. | A590912 | [2] | WASHER;SPRING | |
| 42. | 4058467 | [1] | HOSE | |
| 43. | 4263764 | [2] | CLAMP;HOSE | |
| 44. | 4504491 | [2] | CLAMP;HOSE | |
| 47. | 7034789 | [1] | PIPE | |
| 49. | J021020 | [2] | BOLT;SEMS | |
| 55. | J901225 | [2] | BOLT | |
| 56. | A590912 | [2] | WASHER;SPRING | |
| 57. | 4402907 | [1] | BRACKET | |
| 59. | A590110 | [2] | WASHER;PLANE | |
| 60. | A590910 | [2] | WASHER;SPRING | |
| 61. | J950010 | [2] | NUT | |
| 62. | 4053865 | [1] | CLAMP;PIPE | |
| 63. | J901030 | [2] | BOLT | |
| 64. | A811040 | [1] | O-RING | |
| 65. | M341236 | [4] | BOLT;SOCKET | |
| 67. | 7038771 | [1] | PIPE | |
| 68. | 4069801 | [2] | COUPLING | |
| 69. | 4081255 | [2] | ADAPTER | |
| 70. | 4087983 | [2] | VALVE;CHECK | |
| 72. | 4440042 | [1] | HOSE | |
| 73. | 4042033 | [1] | ADAPTER | |
| 73A. | 4506424 | [1] | O-RING | |
| 77. | 4402906 | [1] | BRACKET | |
| 78. | J901235 | [2] | BOLT | |
| 79. | A590112 | [2] | WASHER;PLANE | |
| 80. | A590912 | [2] | WASHER;SPRING | |
| 81. | 4053697 | [1] | CLAMP;PIPE | |
| 82. | J011265 | [1] | BOLT;SEMS | |
