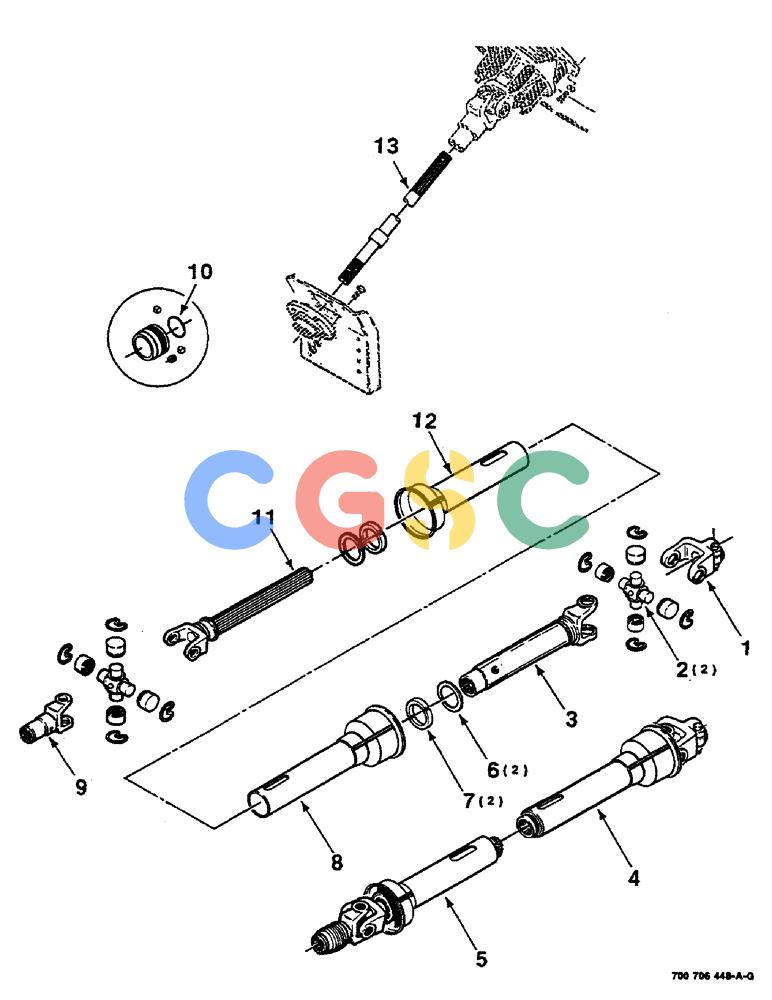

凯斯零件查询(8580) - CASE IH LARGE RECTANGULAR BALER (1/88-12/98) (02-06) - DRIVELINE ASSEMBLY, IMPLEMENT, 1000 RPM-TYPE 2, SN CFH0026001 THRU CFH0026552 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
211 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700712517
|
[1] |
YOKE
|
CAS
- splined, implement
|
| 2. |
470077R91
|
[2] |
BEARING ASSY,1.025" ID x 1.5325" OD x 4.309"
|
IH
CROSS AND BEARING KIT Superseded by part number:
|
| 3. |
700706962
|
[1] |
YOKE
|
CAS
AND TUBE Superseded by part number: 700712445
|
| 4. |
700706959
|
[1] |
FRONT PTO ASSY
|
CAS
IMPLEMENT HALF ASSEMBLY Superseded by part number: 700712443
|
| . . |
700712443
|
[1] |
REAR PTO ASSY
|
CAS
IMPLEMENT HALF ASSEMBLY
|
| 5. |
700706964
|
[1] |
FRONT PTO ASSY
|
CAS
TRACTOR HALF ASSEMBLY Superseded by part number: 700712444
|
| . . |
700712444
|
[1] |
PTO
|
CAS
TRACTOR HALF ASSEMBLY
|
| 6. |
8802589
|
[2] |
RETAINER
|
CAS
RING - retainer Superseded by part number: 273949
|
| 7. |
700706967
|
[2] |
NYLON BEARING
|
CAS
BEARING - nylon Superseded by part number: 87050379
|
| 8. |
700706963
|
[1] |
SHIELD
|
CAS
- inner Superseded by part number: 700712446
|
| 9. |
8802548
|
[1] |
FORK
|
CAS
YOKE - QD Superseded by part number: 86505711
|
| 10. |
700710928
|
[1] |
REPAIR KIT
|
CAS
SSL - yoke, repair kit Superseded by part number: 86534533
|
| 11. |
700706966
|
[1] |
YOKE
|
CAS
AND SHAFT
|
| 12. |
700706965
|
[1] |
SHIELD
|
CAS
- outer Superseded by part number: 700712447
|
| 13. |
700113039
|
[1] |
SHAFT
|
CAS
ASSEMBLY (Type 2 tractor PTO)
|
