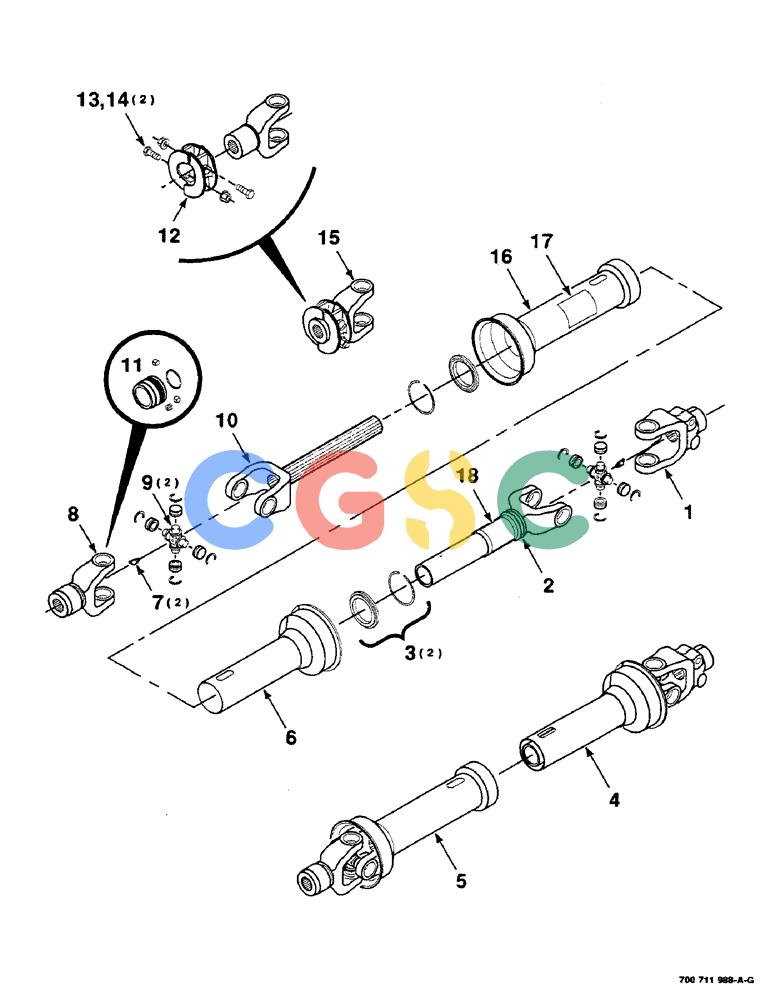

凯斯零件查询(8580) - CASE IH LARGE RECTANGULAR BALER (1/88-12/98) (02-08) - DRIVELINE ASSEMBLY, IMPLEMENT, 1000 RPM-TYPE 2, SN CFH0026553 AND LATER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
643 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700712517
|
[1] |
YOKE
|
CAS
1-3/4" X 20 SPLINE YOKE - implement
|
| 2. |
700712445
|
[1] |
YOKE
|
CAS
AND TUBE
|
| 3. |
700712579
|
[2] |
BEARING ASSY
|
CAS
BEARING AND RETAINER KIT Superseded by part number: 86505713
|
| 4. |
700712443
|
[1] |
REAR PTO ASSY
|
CAS
U-JOINT ASSEMBLY - half, implement
|
| 5. |
700712444
|
[1] |
PTO
|
CAS
U-JOINT ASSEMBLY - half, tractor
|
| 6. |
700712446
|
[1] |
SHIELD
|
CAS
- inner
|
| 7. |
219-40
|
[2] |
LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF
|
CAS
1/8 PTF X 65 DEGREE ZERK Superseded by part number: 80711
|
| 8. |
8802548
|
[1] |
FORK
|
CAS
1-3/8" X 21 SPLINE YOKE - tractor, QD Superseded by part number: 86505711
|
| 9. |
470077R91
|
[2] |
BEARING ASSY,1.025" ID x 1.5325" OD x 4.309"
|
IH
CROSS AND BEARING KIT (Includes item 7) Superseded by part number:
|
| 10. |
700706966
|
[1] |
YOKE
|
CAS
- shaft
|
| 11. |
700710928
|
[1] |
REPAIR KIT
|
CAS
S S L - yoke, repair kit Superseded by part number: 86534533
|
| 12. |
700712475
|
[1] |
CLAMP
|
CAS
ASSEMBLY - yoke Superseded by part number: 86621507
|
| 13. |
326-848
|
[2] |
BOLT,Hex, 1/2" - 13 x 3", Gr 8
|
CAS
|
| 14. |
230-4118
|
[2] |
LOCK NUT,1/2"-13, GA
|
CAS
1/2-13 HTLN GR/B
|
| 15. |
700712474
|
[1] |
YOKE
|
CAS
ASSEMBLY CLAMP (Optional) (Includes items 12, 13 and 14)
|
| 16. |
700712447
|
[1] |
SHIELD
|
CAS
- outer
|
| 17. |
80672C1
|
[1] |
DECAL
|
IH
- danger, rotating driveline Superseded by part number: 849471
|
| 18. |
1326528C1
|
[1] |
DECAL
|
IH
- danger, shield missing Superseded by part number: 849472
|
