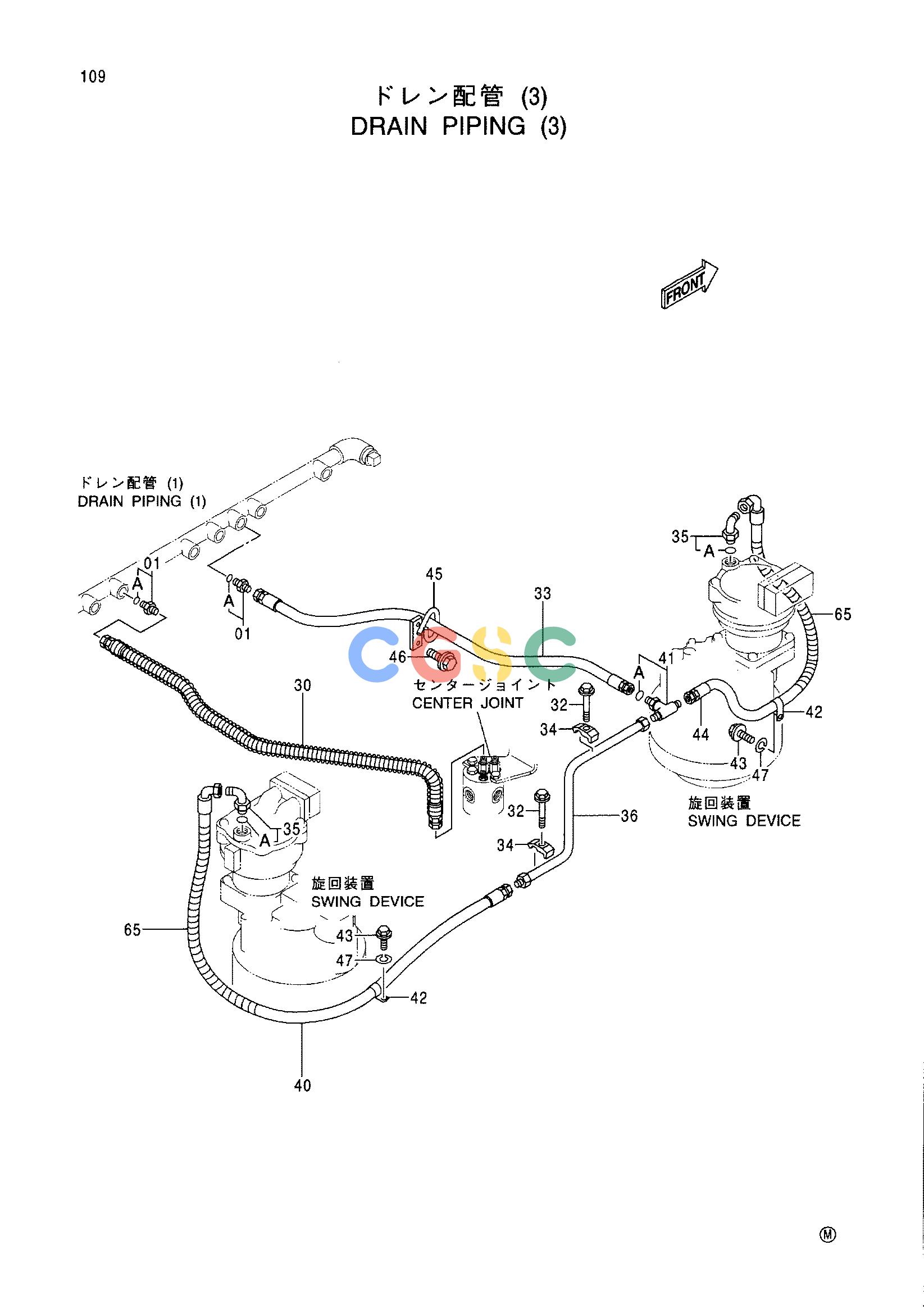

日立零件查询（CX1100）DRAIN PIPING (3) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
972 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4210361 | [2] | ADAPTER;S | |
| 01A. | 4506418 | [1] | O-RING | |
| 30. | 4393402 | [1] | HOSE | |
| 32. | J021045 | [2] | BOLT;SEMS | |
| 33. | 4368689 | [1] | HOSE | |
| 34. | 4190125 | [2] | CLAMP;PIPE | |
| 35. | 4154672 | [2] | ELBOW;S | |
| 35A. | 4506418 | [1] | O-RING | |
| 36. | 8065920 | [1] | PIPE | |
| 40. | 4368688 | [1] | HOSE | |
| 41. | 4217343 | [1] | TEE;S | |
| 41A. | 4506418 | [1] | O-RING | |
| 42. | 4190274 | [2] | CLIP | |
| 43. | J901020 | [2] | BOLT | |
| 44. | 4381198 | [1] | HOSE | |
| 45. | 8073853 | [1] | SUPPORT | |
| 46. | J011016 | [2] | BOLT;SEMS | |
| 47. | A590910 | [2] | WASHER;SPRING | |
| 65. | 4044420 | [3] | PROTECTOR | |
