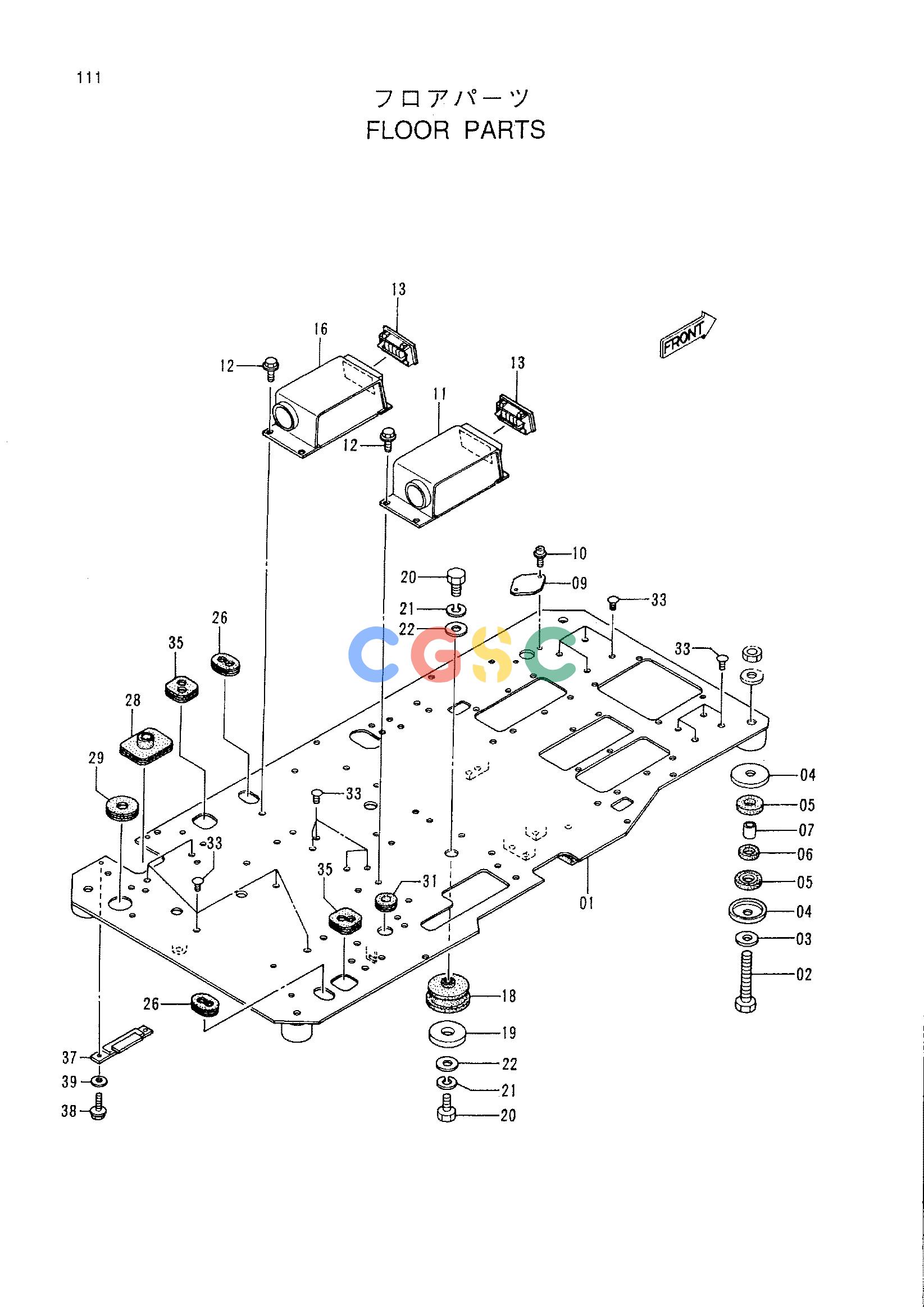

日立零件查询（CX1100）FLOOR PARTS Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
653 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 6017464 | [1] | PLATE | |
| 02. | 4317646 | [4] | BOLT | |
| 03. | J222016 | [6] | WASHER | |
| 04. | 4203878 | [8] | STOPPER | |
| 05. | 4203877 | [8] | RUBBER | |
| 06. | 4200085 | [4] | RUBBER | |
| 07. | 4217092 | [4] | SPACER | |
| 09. | 4393049 | [1] | COVER | |
| 10. | J450620 | [2] | SCREW;SEMS | |
| 11. | 7028275 | [1] | BOX | |
| 12. | J021030 | [8] | BOLT;SEMS | |
| 13. | 4259639 | [2] | GRILLE | |
| 16. | 7028274 | [1] | BOX | |
| 18. | 4147007 | [2] | RUBBER | |
| 19. | 4331685 | [2] | SPACER | |
| 20. | M111632 | [4] | BOLT | |
| 21. | A590916 | [4] | WASHER;SPRING | |
| 22. | 4087197 | [2] | WASHER | |
| 26. | 4276794 | [2] | BUSHING;RUBBER | |
| 28. | 4276792 | [1] | BUSHING;RUBBER | |
| 29. | 4201929 | [1] | BUSHING;RUBBER | |
| 31. | 4203587 | [1] | BUSHING;RUBBER | |
| 33. | 4280359 | [17] | CLIP | |
| 35. | 4205082 | [2] | BUSHING;RUBBER | |
| 37. | 9751002 | [1] | PLATE | |
| 38. | J011025 | [2] | BOLT;SEMS | |
| 39. | A590110 | [2] | WASHER;PLANE | |
