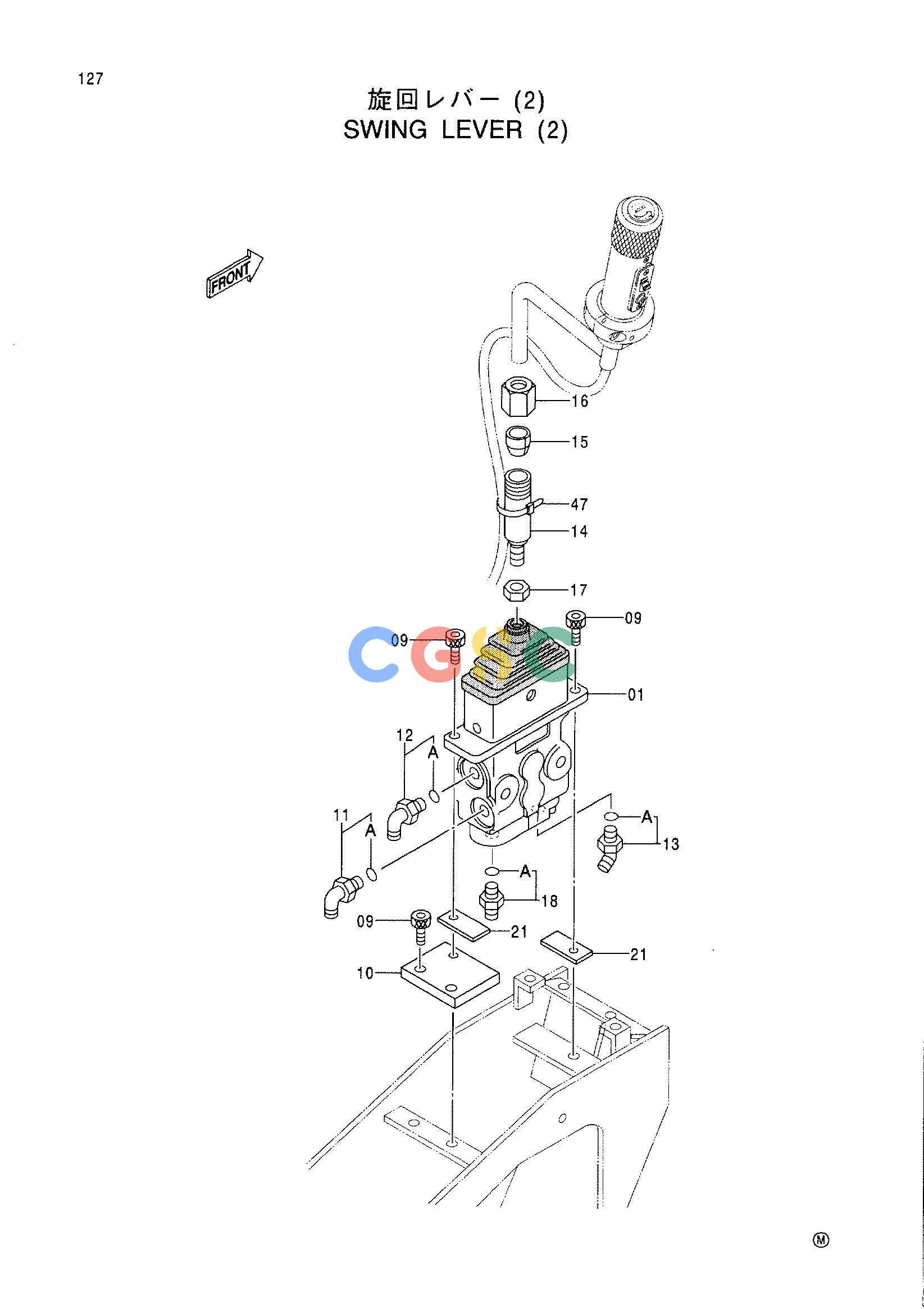

日立零件查询（CX1100）SWING LEVER (2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
876 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4363972 | [1] | VALVE;PILOT | |
| 09. | M341020 | [4] | BOLT;SOCKET | |
| 10. | 4370929 | [1] | SEAT;SCREW | |
| 11. | 4322805 | [1] | FILTER | |
| 11A. | 957366 | [1] | O-RING | |
| 12. | 4156434 | [1] | ELBOW;S | |
| 12A. | 957366 | [1] | O-RING | |
| 13. | 4200472 | [1] | ELBOW;S | |
| 13A. | 957366 | [1] | O-RING | |
| 14. | 9746643 | [1] | LEVER | |
| 15. | 4157731 | [1] | STOPPER | |
| 16. | 4157732 | [1] | GRIP;LOCK | |
| 17. | J231212 | [1] | NUT | |
| 18. | 4200467 | [1] | ADAPTER;S | |
| 18A. | 957366 | [1] | O-RING | |
| 21. | 4369010 | [2] | PACKING | |
| 47. | 4044883 | [1] | CLAMP | |
