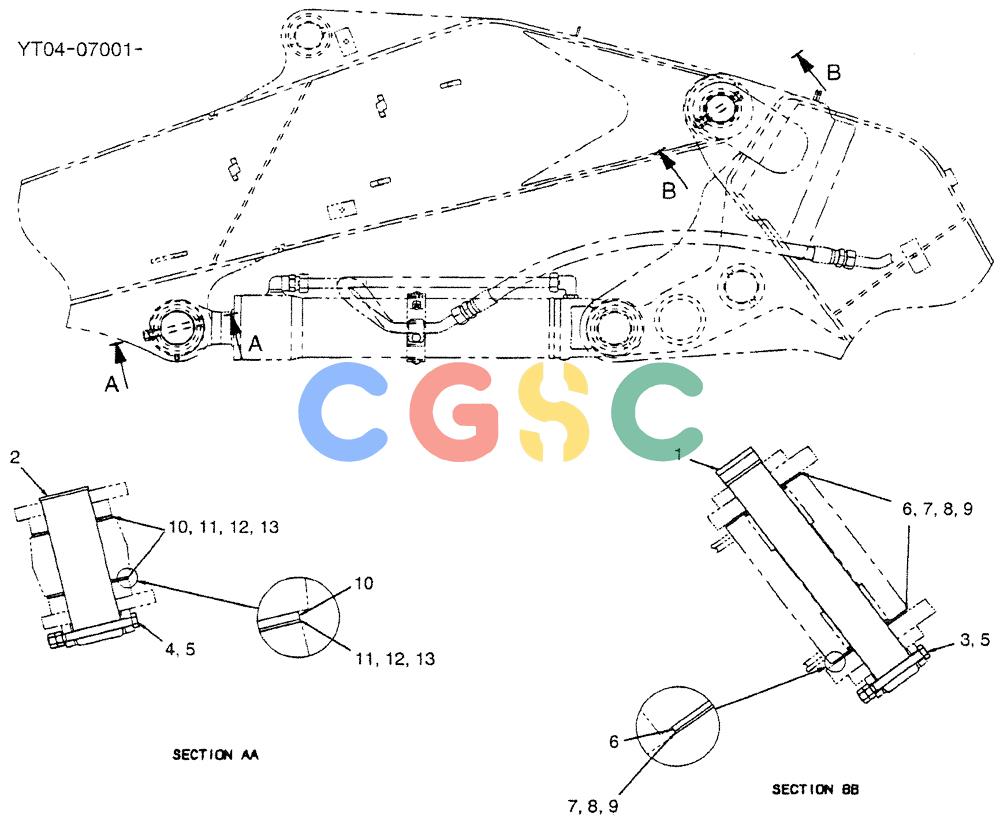

神钢零件查询(BOOM) - ATTACHMENT, (2 PIECE) - SK70SR-1E & SK70SR-1ES ASN YT04-07001 (1/04-12/12) (02-004) - BOOM FRONT INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
171 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT02B00014F1 | [1] | BOOM INSTAL | |
| 1. | LE05B01001P1 | [1] | PIN | |
| 2. | YT02B01017P1 | [1] | PIN | KOBPIN |
| 3. | HS18C12110G2 | [1] | CAPSCREW | KOBSCREW M12x1.75x110mm |
| 4. | HS18C12125G2 | [1] | SCREW | KOBM12x1.75x125mm |
| 5. | ZN18C12010 | [4] | NUT | KOBM12x1.75mm |
| 6. | YR02B01265P1 | [2] | SHIM,2.0mm Thk | KOB(2.0) |
| 7. | YR02B01266D3 | [2] | SHIM,0.5mm Thk | KOB(0.5) |
| 8. | YR02B01266D1 | [2] | SHIM,0.9mm Thk | KOB(0.9) |
| 9. | YR02B01266D2 | [2] | SHIM,1.2mm Thk | KOB(1.2) |
| 10. | YR02B01262P1 | [2] | SHIM,2.0mm Thk | KOB(2.0) |
| 11. | YT02B01008D1 | [1] | SHIM,0.5mm Thk | KOB(0.5) |
| 12. | B16T0442D93 | [1] | SHIM,120mm OD x 72mm ID x 0.9mm Thk | KOBID 72 x OD 120 x Th 0.9mm |
| 13. | YT02B01008D2 | [1] | SHIM,1.2mm Thk | KOB(1.2) |
