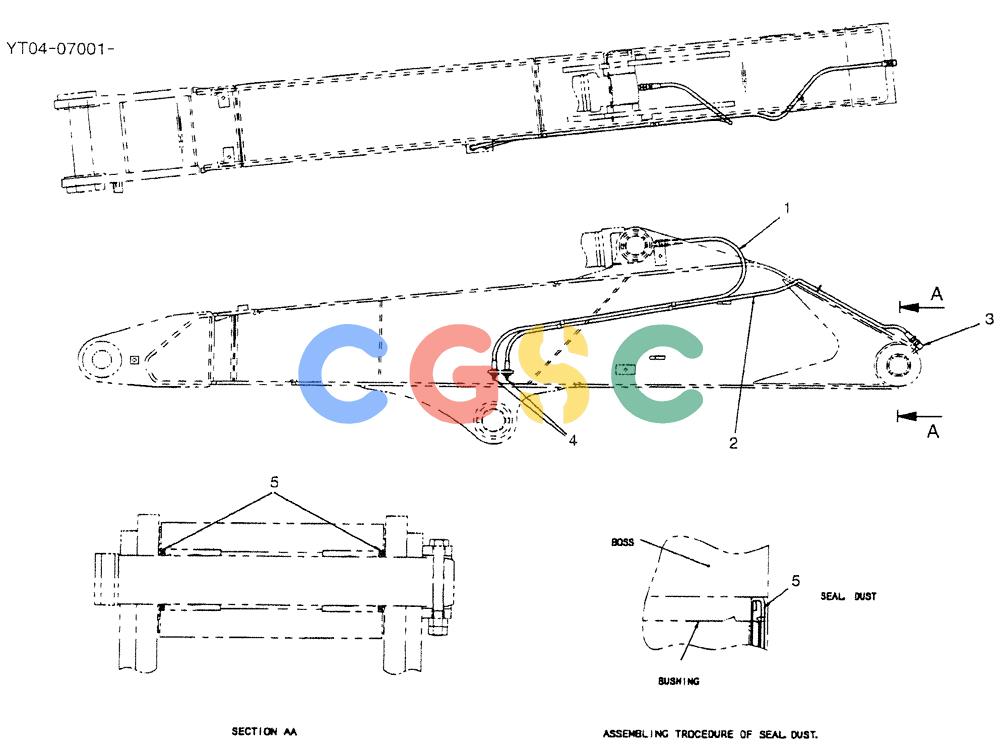

神钢零件查询(BOOM) - ATTACHMENT, (2 PIECE) - SK70SR-1E & SK70SR-1ES ASN YT04-07001 (1/04-12/12) (02-006) - BOOM FRONT GROUP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
555 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT02B00013F1 | [1] | BOOM GROUP | |
| 1. | 2444R1117D140 | [1] | HOSE,6.40mm ID x 1400mm L | KOB1400mm Long (55-7/64 in) Superseded by part number: HX21E04140DY |
| 2. | 2444R1117D150 | [1] | HOSE,6.4mm ID x 1500mm L | KOB |
| 3. | ZH32Z04002 | [1] | ELBOW | KOB90° -- 1/4" PF - 1/8" PT |
| 4. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 5. | 2445R138D3 | [2] | SEAL,60mm ID x 75mm OD x 4mm Thk | KOBDust -- ID 60 x OD 75 x Th 4mm |
