神钢零件查询(BOOM) - ATTACHMENT, (2 PIECE) - SK70SR-1E & SK70SR-1ES ASN YT04-07001 (1/04-12/12) (02-007) - HYDR LINES, BOOM MAIN Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
280 次

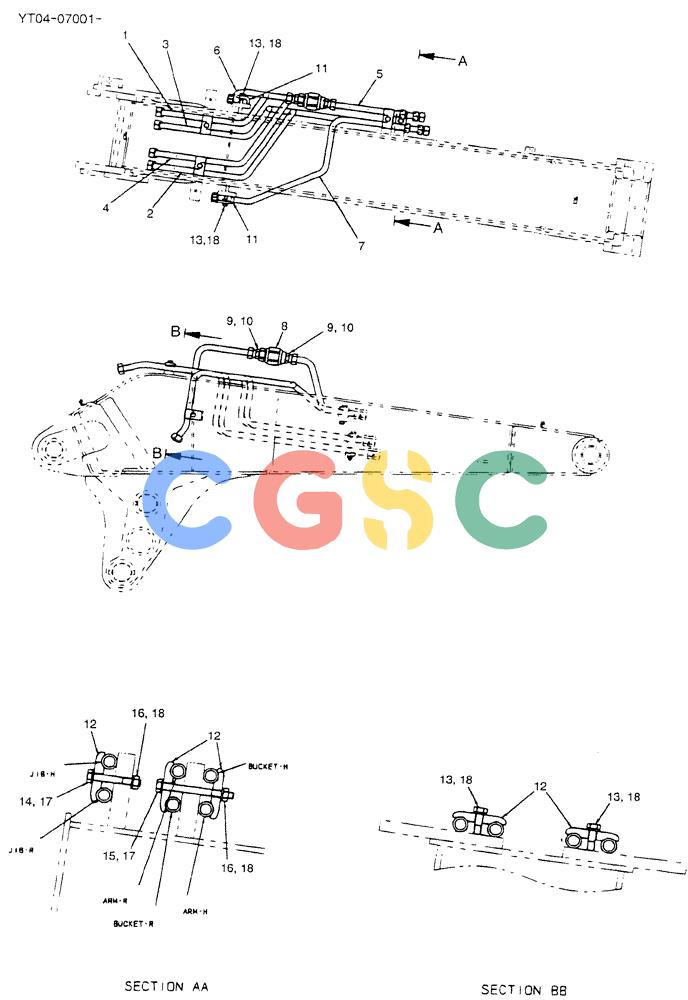

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT42H00014F1 | [1] | HYD LINES, BOOM | |
| 1. | YT42H01086P1 | [1] | TUBE | KOBTUBE |
| 2. | YT42H01044P1 | [1] | TUBE | KOBTUBE |
| 3. | YT42H01087P1 | [1] | TUBE | KOBTUBE |
| 4. | YT42H01046P1 | [1] | TUBE | KOBTUBE |
| 5. | YT42H01088P1 | [1] | TUBE | |
| 6. | YT42H01048P2 | [1] | TUBE | KOBTUBE |
| 7. | YT42H01138P2 | [1] | TUBE | KOBTUBE Superseded by part number: YT42H01296P1 |
| 8. | 2436R1063D4 | [1] | CHECK VALVE | KOBVALVE, CONTROL, SLOW |
| 9. | ZA23F22012 | [2] | HYD CONNECTOR | KOB3/4"PF - M30x1.50 x 46mm Long |
| 10. | ZD12P02400 | [2] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 11. | ZC26X22011 | [2] | CLAMP | KOBSingle Line -- 38x29x65mm Long |
| 12. | ZC36X22011 | [5] | CLAMP | KOBDouble Line -- 75x38x13mm (Ø24mm) |
| 13. | ZS18C10045 | [4] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm |
| 14. | ZS18C10070 | [1] | SCREW,Hex, M10 x 70mm | KOBM10x1.50x70mm |
| 15. | HS18C10105G2 | [1] | CAPSCREW | KOBSCREW M10x1.50x105mm |
| 16. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
| 17. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 18. | ZW26X10000 | [6] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
