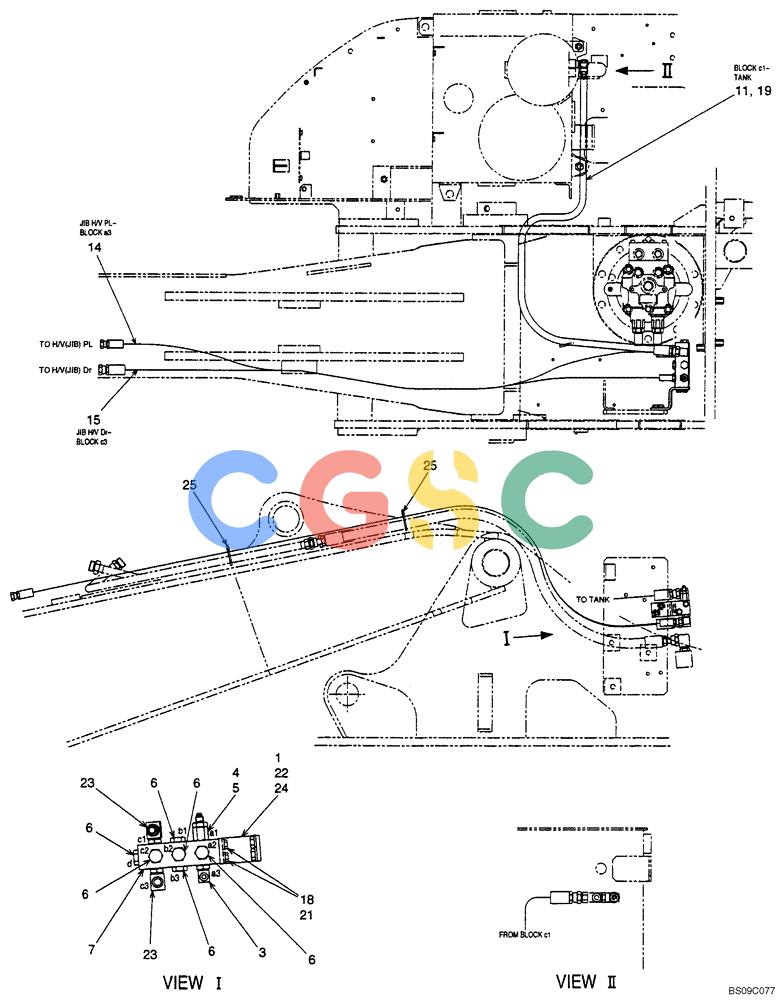

神钢零件查询(BOOM) - ATTACHMENT, (2-PIECE BOOM) SK135SR-1E, SK135SRLC-1E, SK135SRLC-1ES (11/01-12/10) (06-009[01]) - VALVE CONTROL LINES, (2-PIECE BOOM), (YY64H00045F1, YY64H00045F2 & YY64H00045F3), PAGE 1 OF 3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
379 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YY64H01038P1 | [1] | BRACKET | KOBBracket |
| 3. | ZH32X06000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006, (F1 & F2 Only) |
| . . | ZH32X06000 | [3] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006, (F3 Only) |
| 4. | 2444Z2891 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
| 5. | ZH22X04006 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring 237-6006) |
| 6. | ZE72X06000 | [6] | PLUG | KOB3/8" PF, (Incls. O-Ring ZD12P01400), (F1 Only) |
| . . | ZE72X06000 | [5] | PLUG | KOB3/8" PF, (Incls. O-Ring ZD12P01400), (F2 Only) |
| 7. | YY64H01037P1 | [1] | BLOCK | KOBBlock |
| 11. | ZX22M08210 | [1] | HOSE | KOB2100mm Long (82-11/16 in) |
| 14. | ZX23M06260 | [1] | HOSE | KOB2600mm Long (102-23/64 in) |
| 15. | ZX22M08260 | [1] | HOSE | KOBHose, 2600mm Long (102-23/64 in) |
| 18. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 19. | YN20M01046DP | [1] | PROTECTIVE SLEEVE,22.10mm ID x 27.00mm OD x 2000.00mm | KOBProtective Plastic |
| 21. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 22. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 23. | 2444R399D9 | [2] | HYD CONNECTOR | KOBElbow -- (Incls. O-Ring ZD12P01400), (F1 & F2 Only) |
| . . | 2444R399D9 | [3] | HYD CONNECTOR | KOBElbow -- (Incls. O-Ring ZD12P01400), (F3 Only) |
| 24. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 25. | PY01P01043D8 | [5] | CABLE TIE,102mm L | KOBWire Ties -- 368mm Long, (F1 & F2 Only) |
| . . | PY01P01043D8 | [7] | CABLE TIE,102mm L | KOBWire Ties -- 368mm Long, (F3 Only) |
