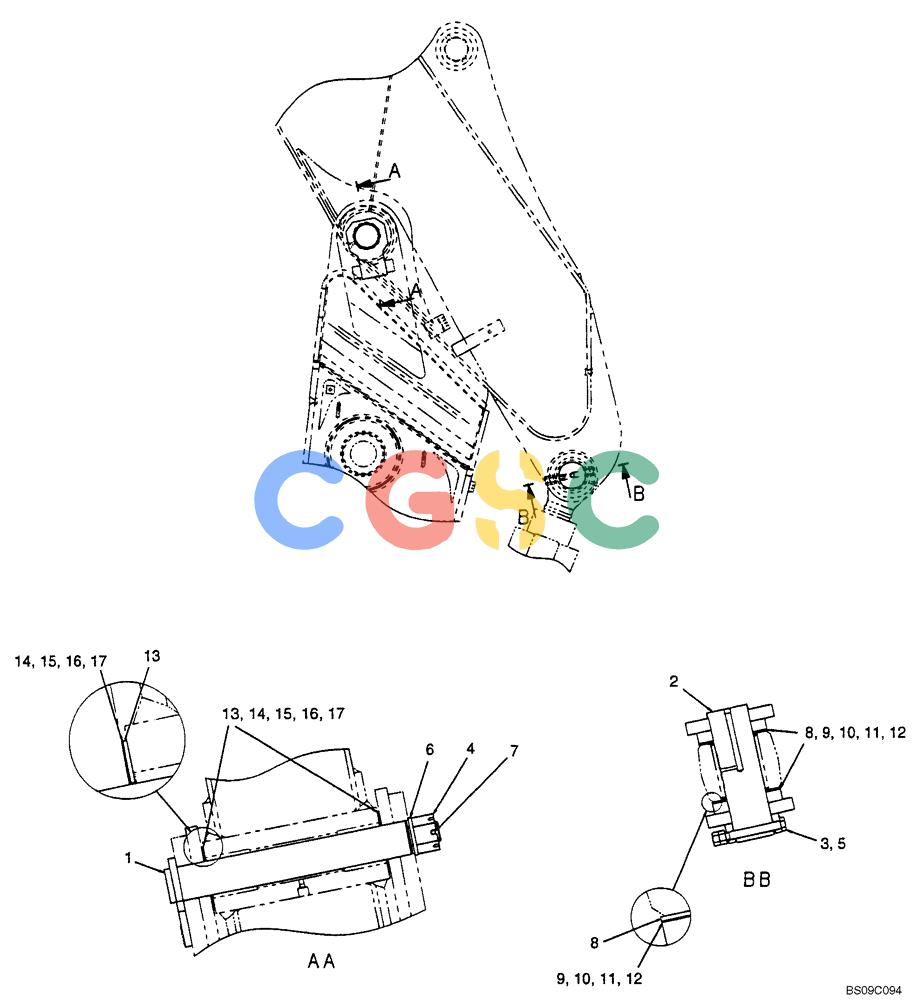

神钢零件查询(BOOM) - ATTACHMENT, (2-PIECE BOOM) SK135SR-1E, SK135SRLC-1E, SK135SRLC-1ES (11/01-12/10) (06-023[00]) - FRONT BOOM INSTALLATION, (2-PIECE BOOM), (YY02B00063F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
688 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YY02B01054P1 | [1] | PIN | KOBPin |
| 2. | YY02B01053P1 | [1] | PIN | KOBPin |
| 3. | HS18C16140G2 | [1] | SCREW,M16 x 140mm, Cl 10.9 | KOBM16x2.0x140mm |
| 4. | ZN21C42046 | [1] | NUT | KOBM42x4.50mm Superseded by part number: ZN23C42046 |
| 5. | ZN18C16013 | [2] | NUT | KOBM16x2.0mm |
| 6. | ZW16P42000 | [1] | WASHER | KOBID 43 x OD 78 x Th 7.0mm |
| 7. | ZP16D08080 | [1] | PIN | KOBPin, Split |
| 8. | YN12B01078P1 | [2] | SHIM | KOBID 82 x OD 140 x Th 3.0mm |
| 9. | YN12B01122D1 | [1] | SHIM,82mm ID x 140mm OD x 0.5mm Thk | KOBID 82 x OD 140 x Th 0.5mm |
| 10. | YN12B01122D2 | [1] | SHIM,82mm ID x 140mm OD x 0.9mm Thk | KOBID 82 x OD 140 x Th 0.9mm |
| 11. | YN12B01084P1 | [1] | SHIM | KOBID 82 x OD 140 x Th 1.2mm |
| 12. | YN12B01122D3 | [1] | SHIM,82mm ID x 140mm OD x 1.6mm Thk | KOBID 82 x OD 140 x Th 1.6mm |
| 13. | YN12B01009P1 | [2] | SHIM,3mm Thk | KOB(3.0) |
| 14. | B16T0442D57 | [1] | SHIM,72mm ID x 130mm OD x 0.5mm Thk | KOBID 72 x OD 130 x Th 0.5mm |
| 15. | B16T0442D44 | [1] | SHIM,72mm ID x 130mm OD x 0.9mm Thk | KOBID 72 x OD 130 x Th 0.9mm |
| 16. | B16T0442D1 | [1] | SHIM,130mm OD x 72mm ID x 1.2mm Thk | KOBID 72 x OD 130 x Th 1.2mm |
| 17. | B16T0442D2 | [1] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOBID 72 x OD 130 x Th 1.6mm |
