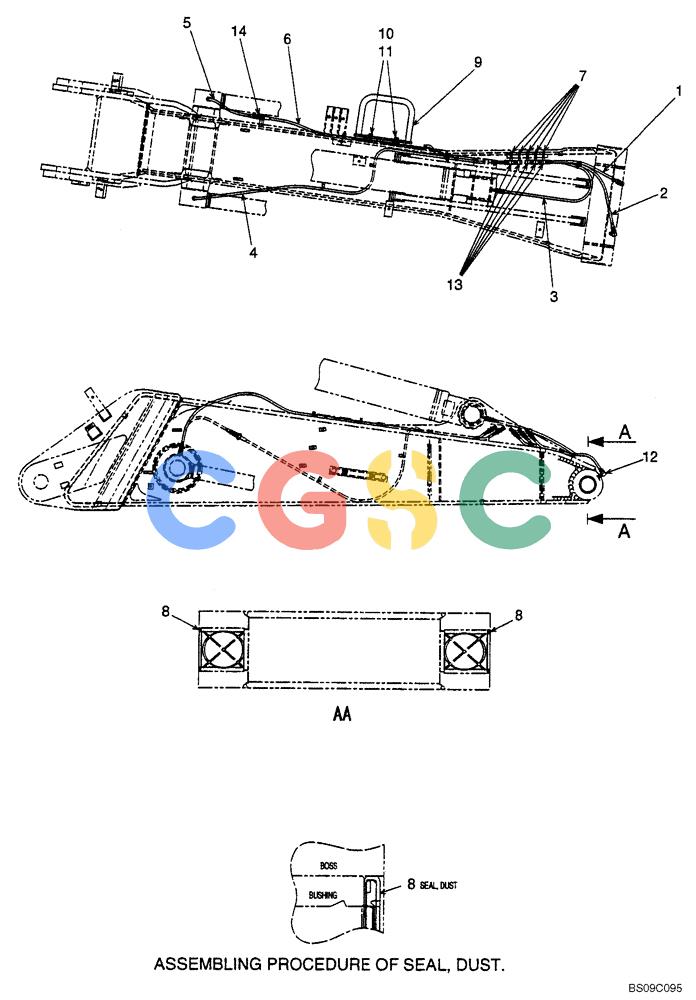

神钢零件查询(BOOM) - ATTACHMENT, (2-PIECE BOOM) SK135SR-1E, SK135SRLC-1E, SK135SRLC-1ES (11/01-12/10) (06-025[00]) - MAIN BOOM GROUP, (2-PIECE BOOM), (YY02B00149F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
569 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2420R349D045 | [1] | HOSE | KOB450mm Long (17-23/32 in) |
| 2. | 2420R349D070 | [1] | HOSE,700.00 mm | KOB700mm Long (27-9/16 in) |
| 3. | 2420R349D090 | [1] | HOSE,6.35mm ID x 900mm L | KOB900mm Long (35-7/16 in) |
| 4. | 2420R349D200 | [1] | HOSE ASSY. | KOB2000mm Long (78-3/4 in) |
| 5. | 2420R349D040 | [1] | HOSE,6.35mm ID x 400mm L | KOB1/4" PF, 400mm Long (15-3/4 in) |
| 6. | 2444R1117D170 | [1] | HOSE,6.40mm ID x 1700mm L | KOB1700mm Long (66-59/64 in) |
| 7. | ZG91S02000 | [5] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 8. | 2445R138D6 | [2] | SEAL,70mm ID x 85.3mm OD x 4mm Thk | KOBSeal, Dust -- ID 70 x OD 85 x Th 4mm |
| 9. | YY02B01067P1 | [1] | SUPPORT | KOB |
| 10. | ZS18C12030 | [2] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 11. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 12. | ZH32Z04000 | [2] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 13. | ZH32Z04002 | [5] | ELBOW | KOB90° -- 1/4" PF - 1/8" PT |
| 14. | 2444Z2002 | [1] | HYD CONNECTOR | KOB1/8"PTx1/4"PFx32mm Long |
