神钢零件查询(BOOM) - ATTACHMENT, (2-PIECE BOOM) SK135SR-1E, SK135SRLC-1E, SK135SRLC-1ES (11/01-12/10) (06-027[00]) - FRONT BOOM GROUP, (2-PIECE BOOM), (YY02B00072F1 & YV02B00006F2) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
194 次

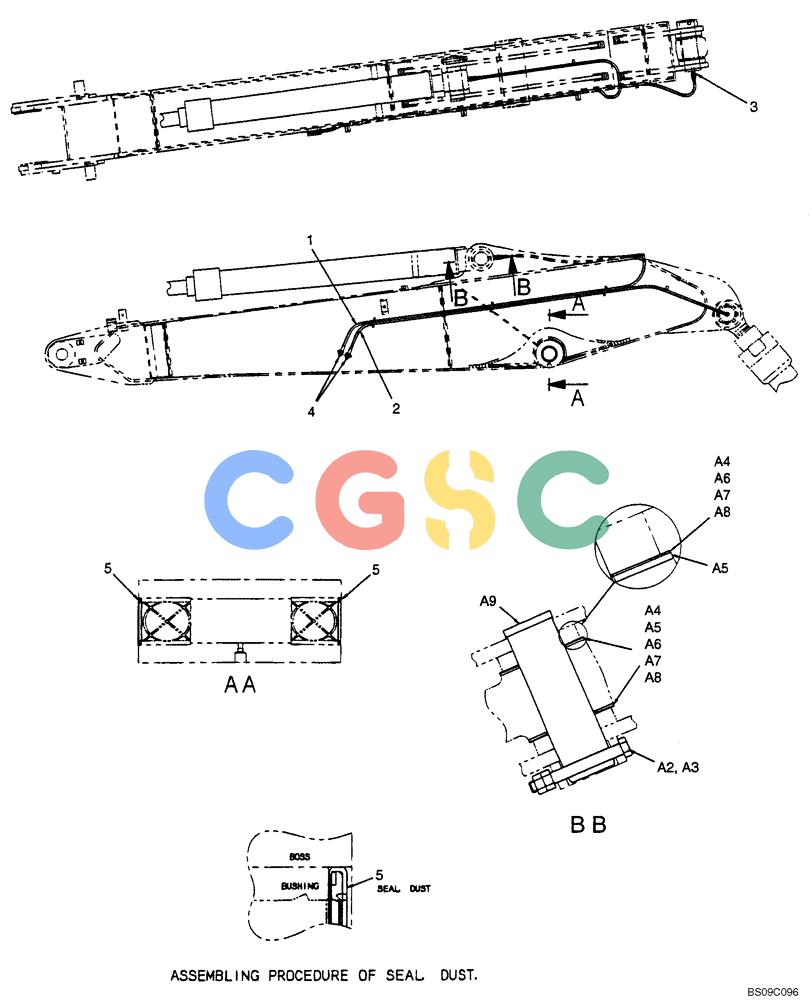

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2444R1117D290 | [1] | HOSE,6.4mm ID x 2900mm L | KOB2900mm Long (114-11/64 in) |
| 2. | 2444R1117D230 | [1] | HOSE,6.40mm ID x 2300mm L | KOB2300mm Long (90-1/2 in) |
| 3. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 4. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 5. | 2445R138D6 | [2] | SEAL,70mm ID x 85.3mm OD x 4mm Thk | KOBSeal, Dust -- ID 70 x OD 85 x Th 4mm |
| A2. | HS18C16140G2 | [1] | SCREW,M16 x 140mm, Cl 10.9 | KOBM16x2.0x140mm |
| A3. | ZN18C16013 | [2] | NUT | KOBM16x2.0mm |
| A4. | B16T0442D44 | [1] | SHIM,72mm ID x 130mm OD x 0.9mm Thk | KOBID 72 x OD 130 x Th 0.9mm |
| A5. | YN12B01009P1 | [2] | SHIM,3mm Thk | KOB(3.0) |
| A6. | B16T0442D57 | [1] | SHIM,72mm ID x 130mm OD x 0.5mm Thk | KOBID 72 x OD 130 x Th 0.5mm |
| A7. | B16T0442D1 | [1] | SHIM,130mm OD x 72mm ID x 1.2mm Thk | KOBID 72 x OD 130 x Th 1.2mm |
| A8. | B16T0442D2 | [1] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOBID 72 x OD 130 x Th 1.6mm |
| A9. | YY02B01063P1 | [1] | PIN | KOB |
