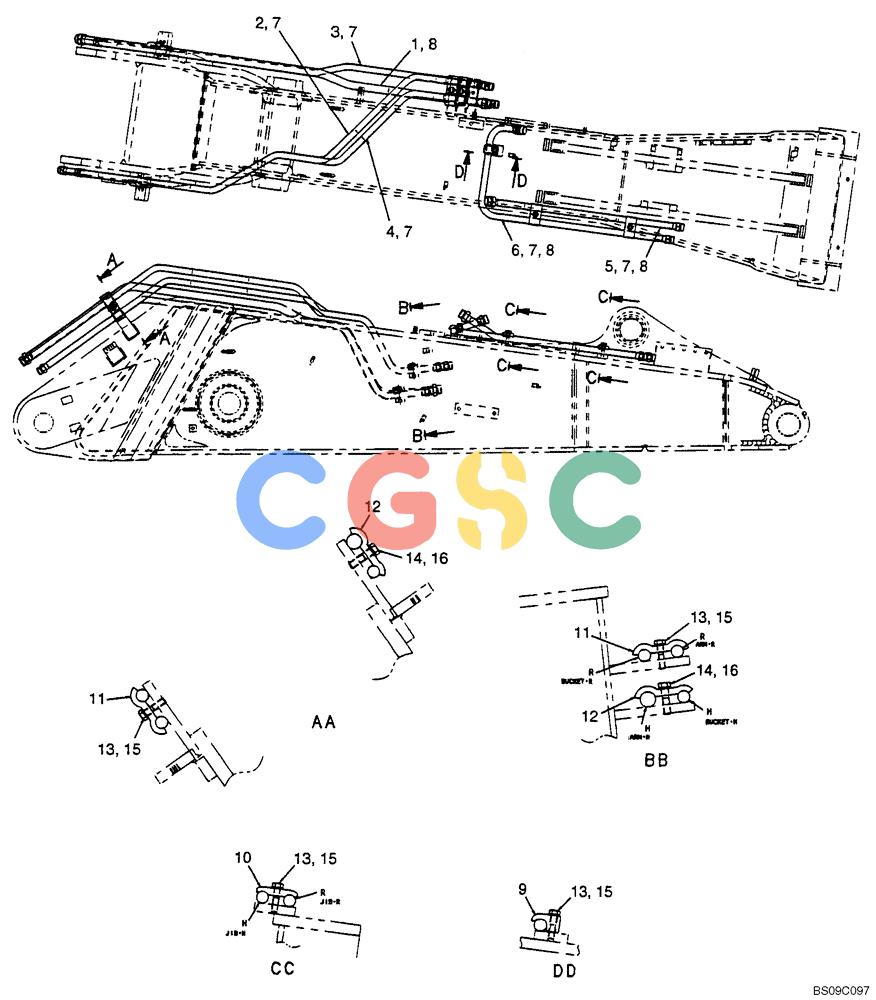

神钢零件查询(BOOM) - ATTACHMENT, (2-PIECE BOOM) SK135SR-1E, SK135SRLC-1E, SK135SRLC-1ES (11/01-12/10) (06-029[00]) - MAIN BOOM HYDRAULIC LINES, (2-PIECE BOOM), (YY42H00046F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
729 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YY42H01192P1 | [1] | TUBE | KOBTube |
| 2. | YY42H01193P1 | [1] | TUBE | KOBTube |
| 3. | YY42H01194P1 | [1] | TUBE | KOBTube |
| 4. | YY42H01195P1 | [1] | TUBE | KOBTube |
| 5. | YY42H01196P2 | [1] | TUBE | KOBTube |
| 6. | YY42H01197P2 | [1] | TUBE | KOBTube |
| 7. | ZD12A01600 | [8] | O-RING | KOBID 15.60 ± 0.12 x OD 19.16mm |
| 8. | ZD12A01800 | [4] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| 9. | ZC27X22012 | [1] | COLLAR | HITID 18.77 ± 0.12 x OD 22.33mm |
| 10. | ZC36X22011 | [2] | CLAMP | KOBDouble Line -- 75x38x13mm (Ø24mm) |
| 11. | 2432T2244 | [2] | CLAMP | KOBDouble -- 102x32x12mm (Ø23xØ23mm) |
| 12. | 2432T2242 | [2] | CLAMP | KOBDouble -- 106x38x12mm (Ø23xØ29mm) |
| 13. | ZS18C10045 | [5] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm |
| 14. | ZS18C12050 | [2] | SCREW,Hex, M12 x 50mm | KOBM12x1.75x50mm |
| 15. | ZW26X10000 | [5] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 16. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
