神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (01-007) - HYD LINES, UPP (BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
909 次

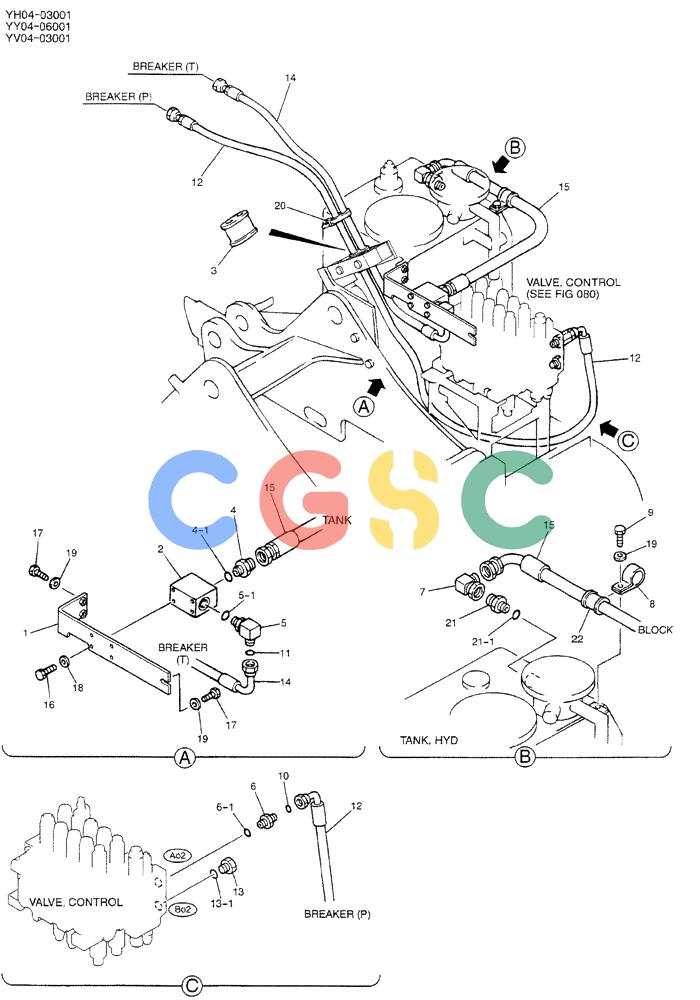

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY03H00032F1 | [1] | HYD LINES, UPP | |
| 1. | YY03H01062P1 | [1] | BRACKET | KOB |
| 2. | YV03H01023P1 | [1] | BLOCK | KOB |
| 3. | YX03H01075P1 | [1] | BUSHING | KOB |
| 4. | YV03H01039P1 | [1] | CONNECTION | KOB1" PF x 3/4" PF x 55.5mm Long (Incls. O-Ring ZD12P02400) |
| 4-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 5. | ZG33F12012 | [1] | 90 ELBOW,1 3/16"-12 UN x PF 3/4" | KOB90° -- 1-3/16" -12UN x 3/4" PF (Incls. O-Ring ZD12P02400) |
| 5-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 6. | ZG23F10012 | [1] | HYD CONNECTOR | KOB5/8"-3/4" PT (Incls. O-Ring ZD12P02400) |
| 6-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 7. | 2444R596D6 | [1] | ELBOW | KOB90° -- 1" PF |
| 8. | ZC46X46014 | [1] | CLIP | KOBClamp -- Ø46mm Single Cable |
| 9. | ZS18C12020 | [1] | SCREW,Hex, M12 x 20mm | KOBM12x1.75x20mm |
| 10. | ZD12A01600 | [1] | O-RING | KOBID 15.60 ± 0.12 x OD 19.16mm |
| 11. | ZD12A01800 | [1] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| 12. | YX03H01099P1 | [1] | HOSE | KOB |
| 13. | ZE72X12000 | [1] | PLUG | KOB(3/4" PF) (Incls. O-Ring ZD12P02400) |
| 13-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 14. | YY03H01063P1 | [1] | HOSE | KOB |
| 15. | YX06H01003D2 | [1] | HOSE | KOB850mm Long (33-29/64 in) |
| 16. | ZS18C08025 | [4] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 17. | ZS18C12030 | [3] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 18. | ZW16H08000 | [4] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 19. | ZW16H12000 | [4] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 20. | YX03H01046P1 | [1] | CLIP | KOBWire, Tie -- 564mm Long (22-13/64 in) |
| 21. | 2444Z2760 | [1] | HYD CONNECTOR | KOB1" PFx56.5mm Long (Incls. O-Ring ZD12P02900) |
| 21-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 22. | YX32H01011P1 | [1] | BUSHING,33mm ID x 49mm OD x 50mm L | KOBID 33 x OD 43 x 50mm Long |
